For YFR066 frame , we also provide the 0° degree seatpost , so if you need it , please leave the message when you order it ,thanks !
If you need HB009 handlebar with frame ,please contact us ,thanks ! | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
For this frame set,we can do A5 logo for the frame,If you want to do the logo,please contact us
For the order,it included frame,fork,seatpost,handlebar,stem,clamp,BB transfer,Headsets,hangers,thru axle. | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172 |

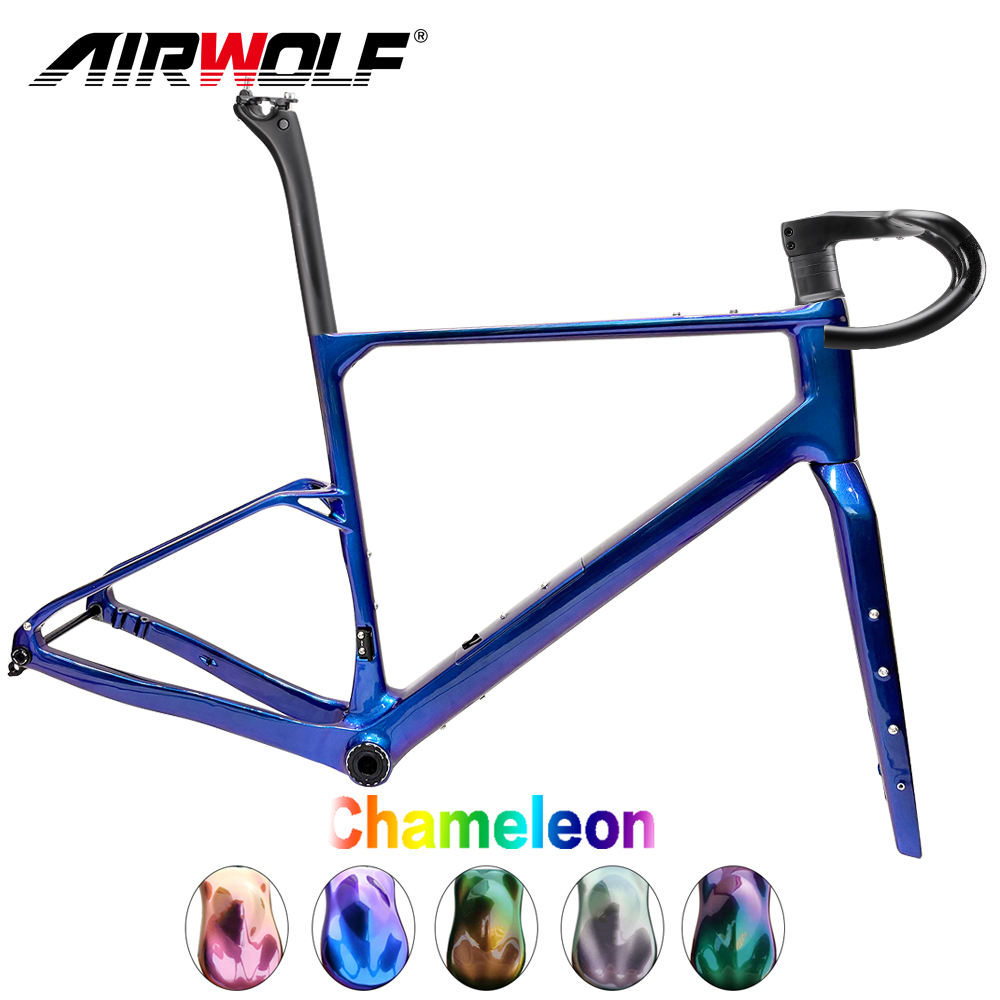

| Content | AIRWOLF 2026 New YFR003 Carbon Gravel Disc Road Frame Endurance Bike Frameset UDH Hanger T47 Thread-Chameleon Colors
AIRWOLF YFR003 Gravel Endurance Disc Road Frame Details:
Frame Material : T1200 Toray Carbon Fiber
Carbon Weave : UD
Bottom Bracket : T47 Thread
Finish : Matte or Glossy
Headsets : 1-1/2" to 1-1/2"
System : Gravel Endurance
Thru Axle Size : Front 100*12mm , Rear 142*12mm
Cable Routing : Internal Cable Routing
Seatpost : 27.2MM
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical
Weight : Frame 1100g (size S) , Fork 480g , Seatpost 190g
Frame Size : XS/S/M/L/XL
Max Tire Size : 700*50C
Warranty : 2 Years
                        |
 | YFR069/YFR072 Carbon Road Frame 700*28C Cheap Price And High Quality Road Bike Frame Disc Braeks and Rim Brakes Also Available Road Bicycle Frame
YFR069 Carbon Road Frame Descriptions:
1>Material:T1100 Carbon Fiber,
2>Carbon Weave:UD,
3>Bottom Bracket:BB386
4>Available Size:46/48/50/52/54cm
5>Fork:100*9mm,Frame:130*9mm
6>Max Tires:700*28C
7>Including:Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer

YFR069 Carbon Road Frame Descriptions:
1>Material:T1100 Carbon Fiber,
2>Carbon Weave:UD,
3>Bottom Bracket:BB386
4>Available Size:46/48/50/52/54cm
5>Fork:100*12mm,Frame:142*12mm
6>Max Tires:700*28C
7>Including:Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer

| Airwolf Light Weight 990g Climbing Bike Carbon Fiber Frame 700*38C Cyclocross Bicycle Flat Mount Disc Brake 12mm Thru Axle Di2 Road Frames T1100 49/52/54/56/58cm Road Frame
Climbing Frame Details
Climbing Frame Material : T1100 Toray Carbon Fiber
Frame Model : YFR066
Frame Type : Carbon Frame Disc Road
Carbon Weave : UD
Bottom Bracket : BB86 (41*86mm)
Finish : Matte or Glossy
Headsets : 1-1/2 to 1-1/2
System : Climbing Road Carbon Disc Frame
Thru Axle Size : Front 100*12mm , Rear 142*12mm
Cable Routing : Internal Cable Routing
Type : Climbing
Seatpost : Framed Specific
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical
Weight : Frame 997g (size 54cm) , Fork 490g , Seatpost 211g,Handlebar 390g(size 420*110mm)
Frame Size : 49/52/54/56/58cm
Handlebar Size : 360/380/400/420/440*80/90/100/110/120mm
Max Tire Size : 700*38C
Frameset Include : Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer,Thru Axle Rod
Warranty : 2 Years
                           | 1.Brand Name:Airwolf
2.Frame Type:YFR068 Carbon Gravel Bike Frame
3.Frame Material:T1100 Toray Carbon Fiber
4.Bike Type:Cyclecross Gravel Bike
5.Carbon Weave:UD
6.Finish:Matte Or Glossy
7.Bottom Bracket:BB Right (46*79mm)
8.Headsets:49.5mm Down 49.5mm
9.Brake Type:Disc Brake
10.Disc Rotor Size:140/160mm
11.Fork Thru Axle:100*12mm
12.Frame Thru Axle:142*12mm
13.Cable Routing:Internal Cable Routing
14.Front Derailleur:Stationary Type
15.Suitable Derailleur:Di2 or Mechanical Dechaincal
16.Weight:Frame 1061g (Size:54cm),Fork 442g ,Seatpost 209g,Handlebar 249g(size 420mm),Stem 141g(Size 90mm)
17.Frame Size:48/51/54/56/58cm
18.Max Tire Size:700*40C
19.Warranty:2 Years
20.OEM Painting:Colors And logo
21.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum Parts

| TT Frame Material : T1100 Toray Carbon Fibre
Frame Type : Carbon TT Frame/Time Trial Frame/Triathlon Bike Frame
Frame Model : YFT058
Carbon Weave : UD
Bottom Bracket : BB386
Finish : Matte or Glossy
Headsets : 1-1/2"(52mm) to 1-1/2"(52mm)
System : Triathletes, time trialists, general speed demons
Thru Axle Size : Front 100*12mm,Rear 142*12mm
Cable Routing : Internal Cable Routing
Type : Carbon Triathlon Bike Frame
Apply To : Triathlon , paved roads
Seatpost : Framed Specific , 0°seat angle,lengt 390mm
Front Derailleur : Stationary type
Suitable Derailleur : Di2 or Mechanical
Brake Type : Disc Brake
Battery : Inside the seatpost
Weight : Frame 1300g (size M) , Fork 375g , Seatpost 275g ,Stem 395g , TT Bar 559g(size 420mm)
Frame Size : S/M/L
Stem Size : 110mm
TT bar size : 400/420/440mm
Max Tire Size : 700*28C
Frameset Include : Frame , Fork , Seatpost ,Stem ,TT Bar , Headsets ,Seatpost Clamp , BB transfer ,Thru Axle Rod , Aluminum parts
Warranty : 2 Years

|
| Additional information |
| Frame Size |
XS, S, M, L, XL
|
| YFHB009 Integrated Handlebar Size(Width) |
360mm, 380mm, 400mm, 420mm, 440mm
|
| YFHB009 Integrated Handlebar Size(Stem Length) |
80mm, 90mm, 100mm, 110mm, 120mm
|
| Colors |
Black, Chameleon 10, The other Chameleon colors
|
| Finish |
Matte, Glossy
|
|
| Weight |
1.3 kg |
| Dimensions |
72 × 21 × 55 cm |
| Frame Size |
XS, S, M, L, XL
|
| Finished |
Matte, Glossy
|
| Brake Model |
Rim Brakes, Disc Brakes
|
|
| Weight |
4.5 kg |
| Frame Size |
46cm, 48cm, 50cm, 52cm, 54cm
|
| Finished |
Matte, Glossy
|
| Brake Style |
V Brake, Disc Brake
|
| Color |
Black, Grey, Red, White, Pink, Navy Blue, Light Blue, Orange, Green, Yellow, Blue, Rose Red, Transprency Red, Transprency Dark Green, Transprency Green, Transprency Blue, Transprency Orange, Transprency Gold, Transprency Deep Green, Transprency Deep Purple, Transprency Light Purple, Chameleon 01, Chameleon 02, Chameleon 03, Chameleon 04, Chameleon 05, Chameleon 06, Chameleon 07, Chameleon 08, Chameleon 09, Chameleon 10, Chameleon 11, Chameleon 14
|
|
| Weight |
4.0 kg |
| Dimensions |
96 × 22 × 55 cm |
| Frame Size |
49cm, 52cm, 54cm, 56cm, 58cm
|
| Color |
Black, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple
|
| Finished |
Matte, Glossy
|
|
| Frame Size |
48cm, 51cm, 54cm, 56cm, 58cm
|
| Handlebar Size |
400mm, 420mm, 440mm
|
| Stem Size |
90mm, 100mm, 110mm, 120mm
|
| Color |
Pearl White
|
| Finished |
Matte, Glossy
|
|
| Frame Size |
S(51cm), M(54cm), L(57cm)
|
| Handlebar Size |
400mm, 420mm, 440mm
|
| Stem Size |
110mm
|
| Color |
All Black, Red, Dark Blue, Green, Light Blue, Pearl White, Grey, Orange, yellow, Chameleon Colors, Ice Crystal Green, Ice Crystal Dark Blue, Ice Crystal Orange, Ice Crystal Light Blue, Ice Crystal Gold, Ice Crystal Red, Ice Crystal Purple, Ice Crystal Pink, Ice Crystal Gray, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple, Metallic Rose Red
|
| Finished |
Matte, Glossy
|
|
