In Stock

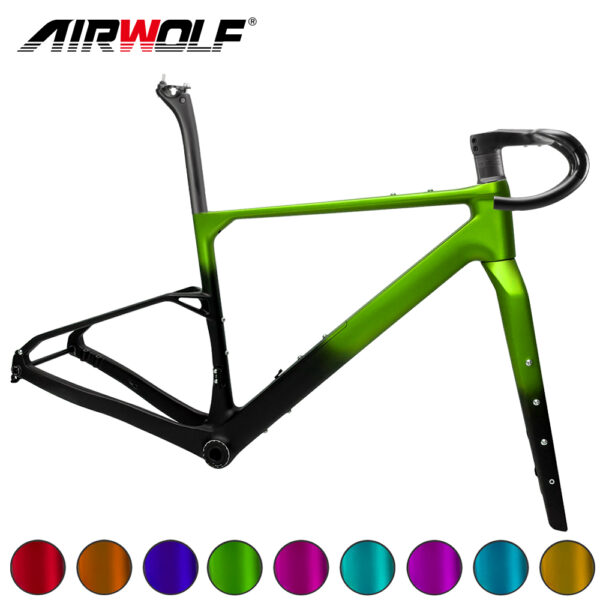

AIRWOLF New T1200 Full Carbon Gravel Disc Road Frameset Max Tire 50mm Clearance Endurance T47 Thread XS/S/M/L/XL

$579.00 – $669.00

AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172

SKU: N/A Category: Tags: , , ,
  • Global shipping on all orders
  • 30 days easy returns if you change your mind
  • Order before noon for same day dispatch
Guaranteed Safe Checkout

Description

AIRWOLF New T1200 Full Carbon Gravel Disc Road Frameset Max Tire 50mm Clearance Endurance T47 Thread XS/S/M/L/XL

AIRWOLF YFR003 Gravel Endurance Disc Road Frame Details:
Frame Material : T1200 Toray Carbon Fiber
Carbon Weave : UD
Bottom Bracket : T47 Thread
Finish : Matte or Glossy
Headsets : 1-1/2″ to 1-1/2″
System : Gravel Endurance
Thru Axle Size : Front 100*12mm , Rear 142*12mm
Cable Routing : Internal Cable Routing
Seatpost : 27.2MM
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical
Weight : Frame 1100g (size S) , Fork 480g , Seatpost 190g
Frame Size : XS/S/M/L/XL
Max Tire Size : 700*50C
Warranty : 2 Years

Additional information

Frame Size

XS, S, M, L, XL
YFHB009 Integrated Handlebar Size(Width)

360mm, 380mm, 400mm, 420mm, 440mm
YFHB009 Integrated Handlebar Size(Stem Length)

80mm, 90mm, 100mm, 110mm, 120mm
Colors

Black, Metallic Red and Black, Metallic Green and Black, Metallic Grass Green and Black, Metallic Dark Blue and Black, Metallic Orange and Black, Metallic Gold and Black, Metallic Indigo Blue and Black, Metallic Purple and Black, Metallic Rose Red and Black
Finish

Matte, Glossy
