| Content | AIRWOLF New Ultralight Endurance Carbon Road Bike Frame With Flat Mount Disc Brake Full Internal Cable Routing Road Racing Frameset

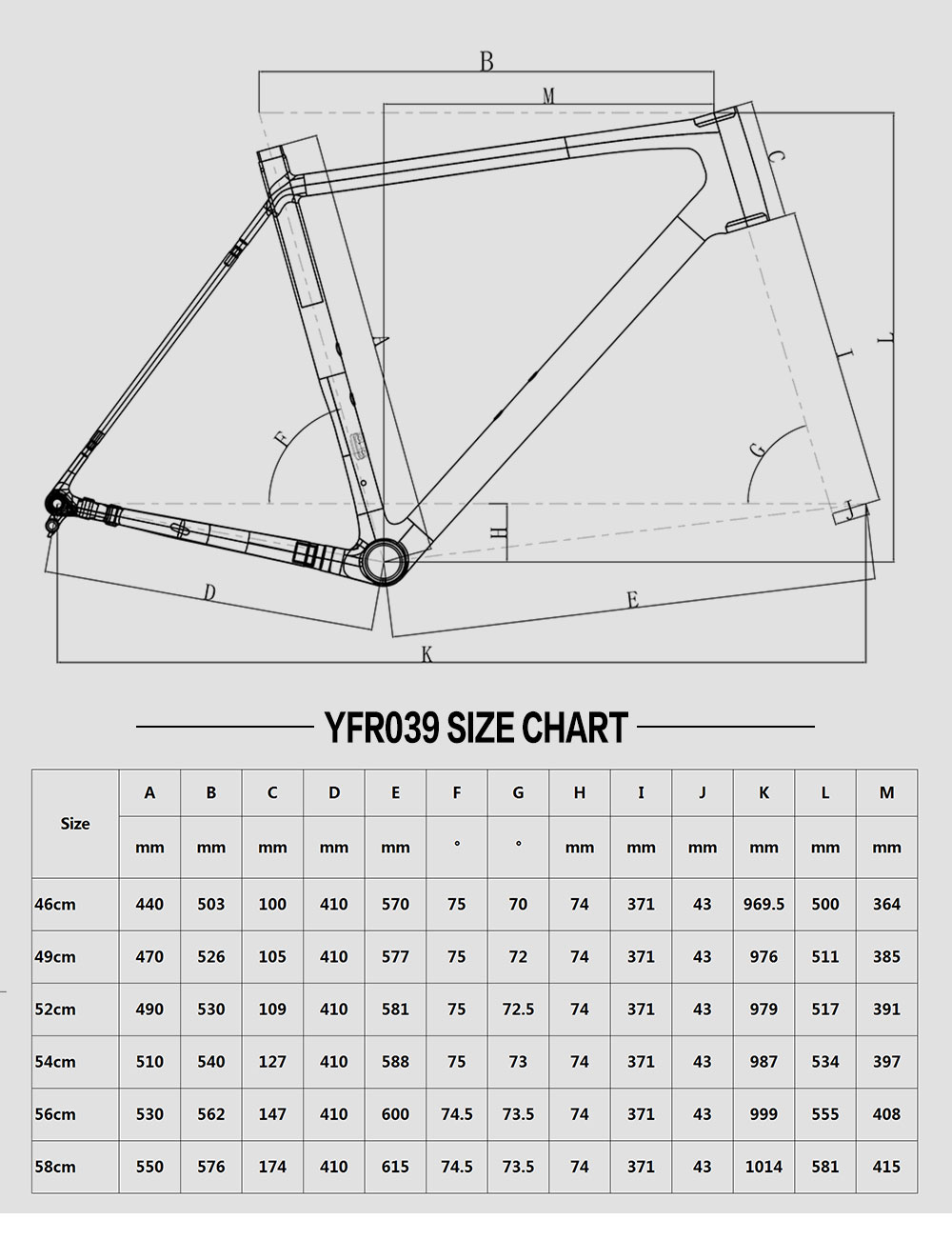

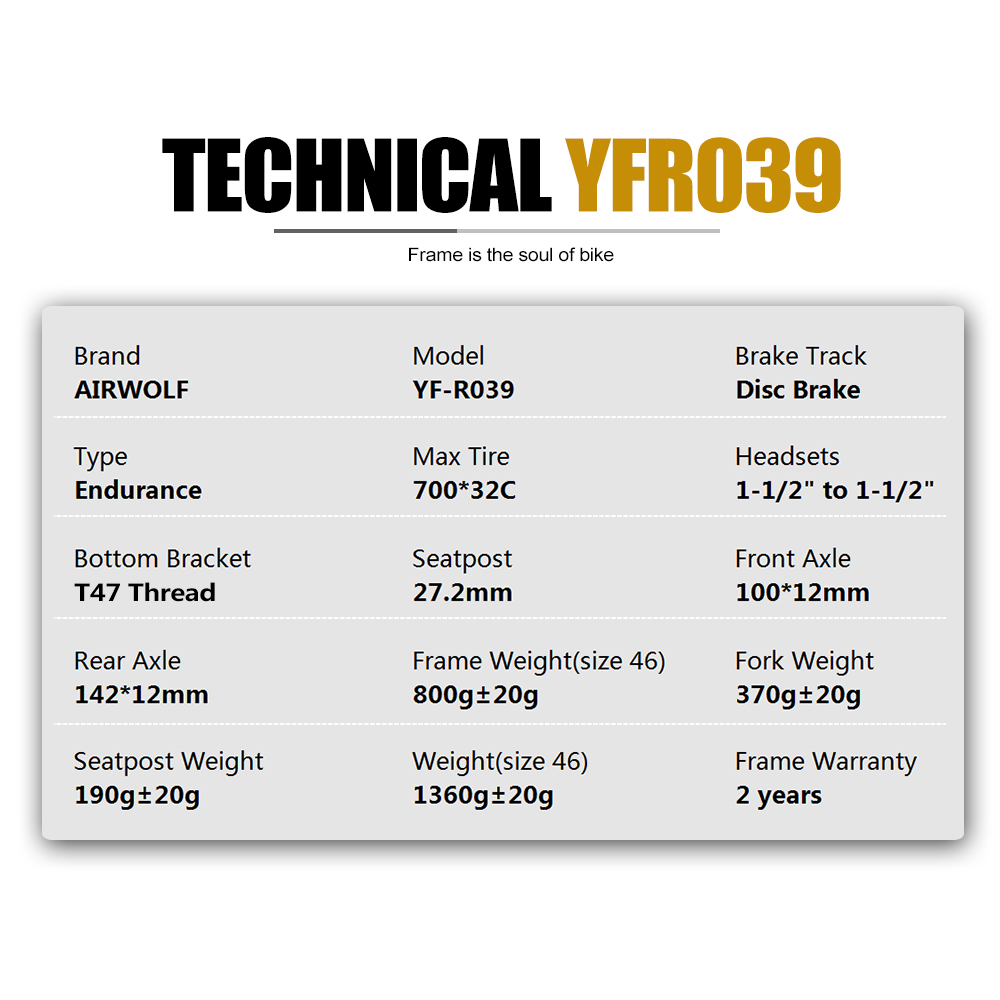

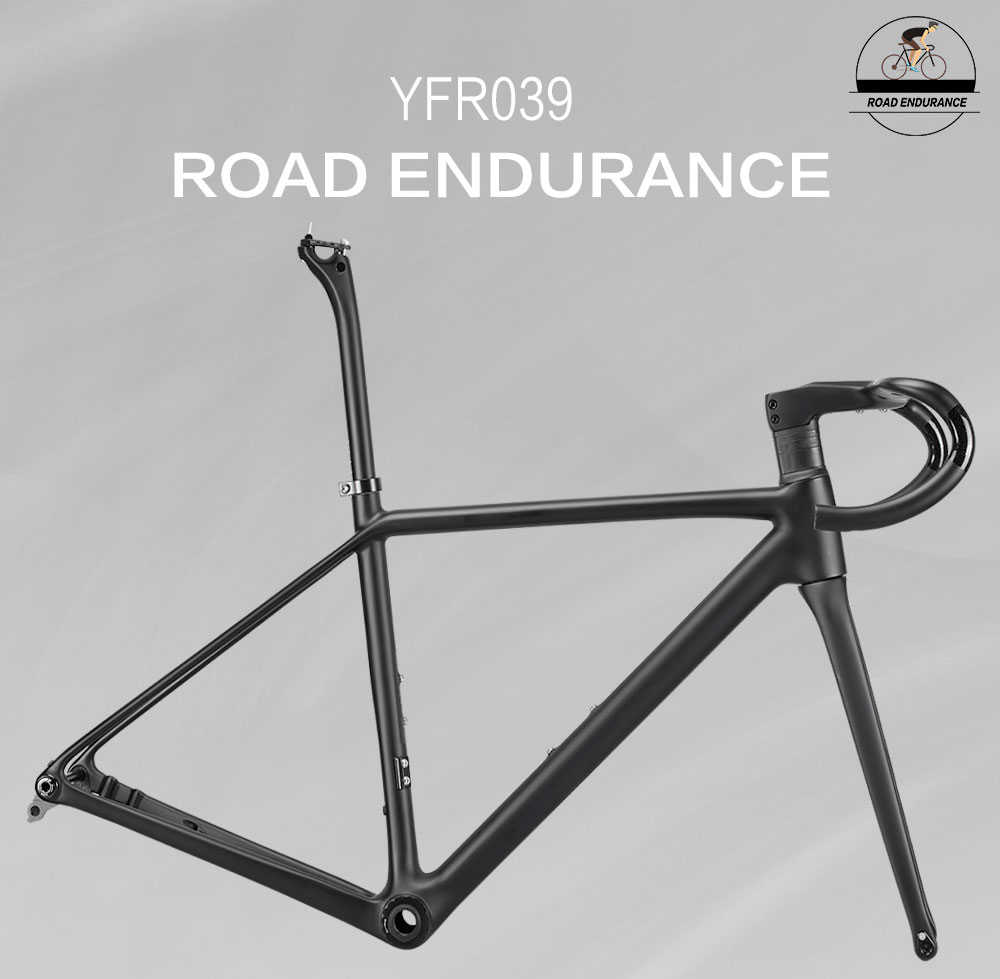

AIRWOLF YFR039 Endurance Disc Road Frame Details:

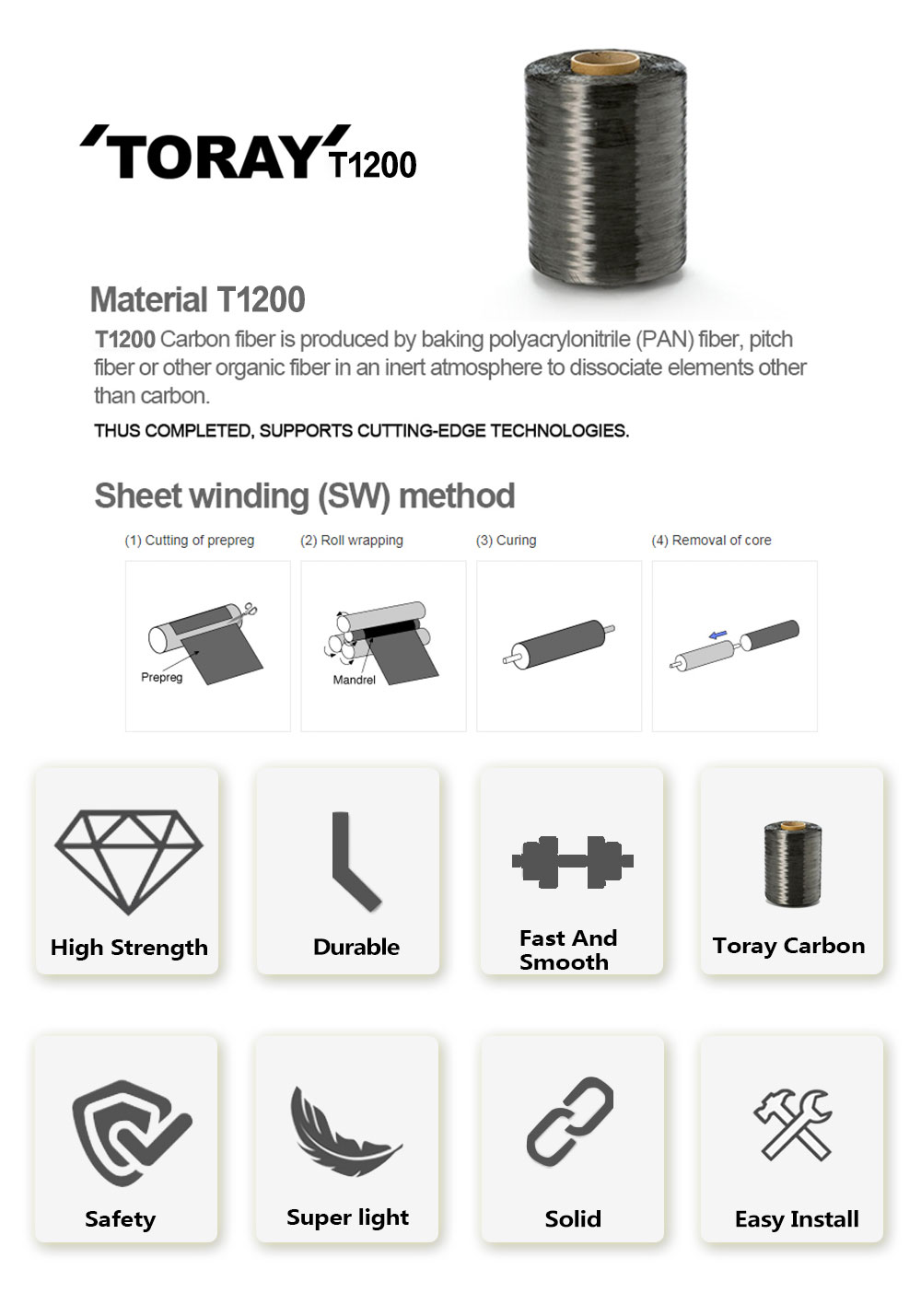

Frame Material : T1200 Toray Carbon Fiber
Carbon Weave : UD

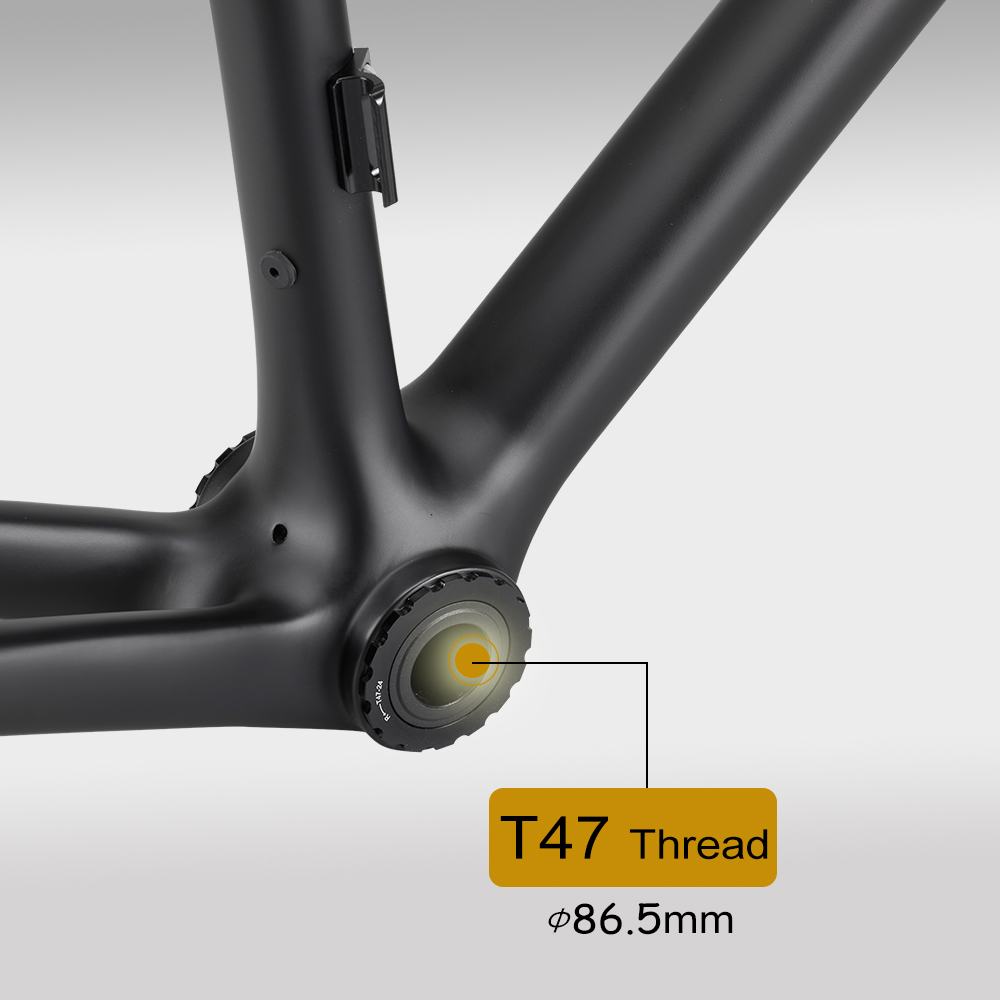

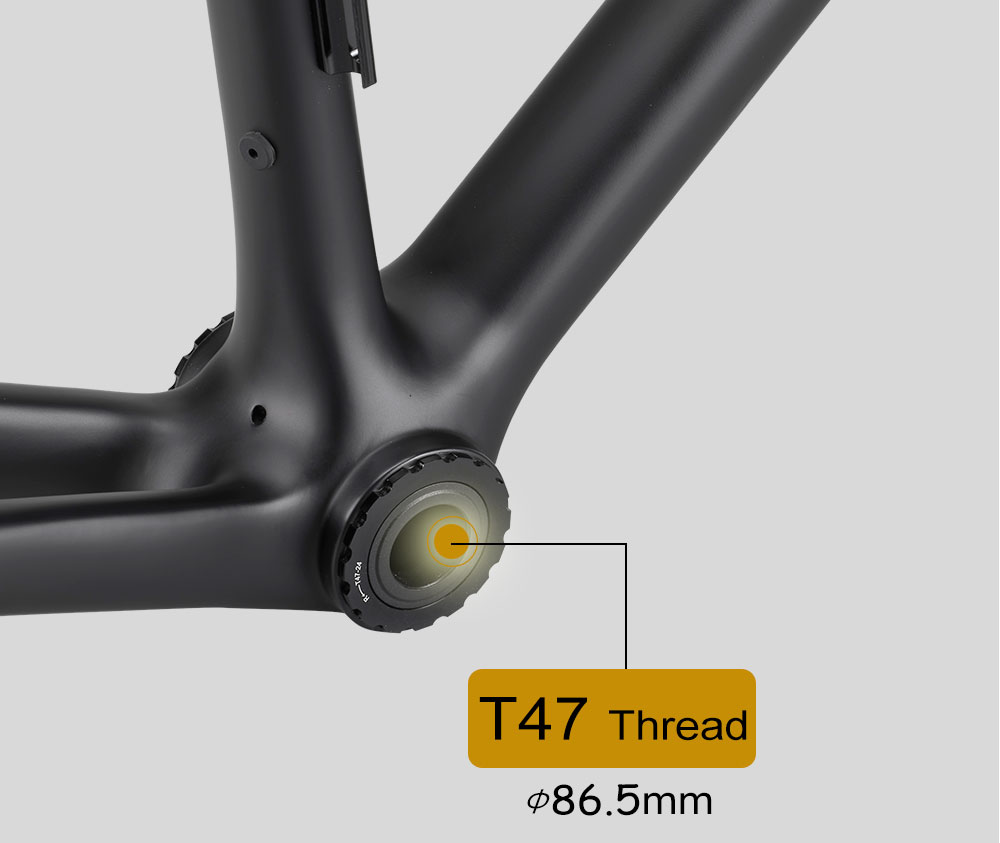

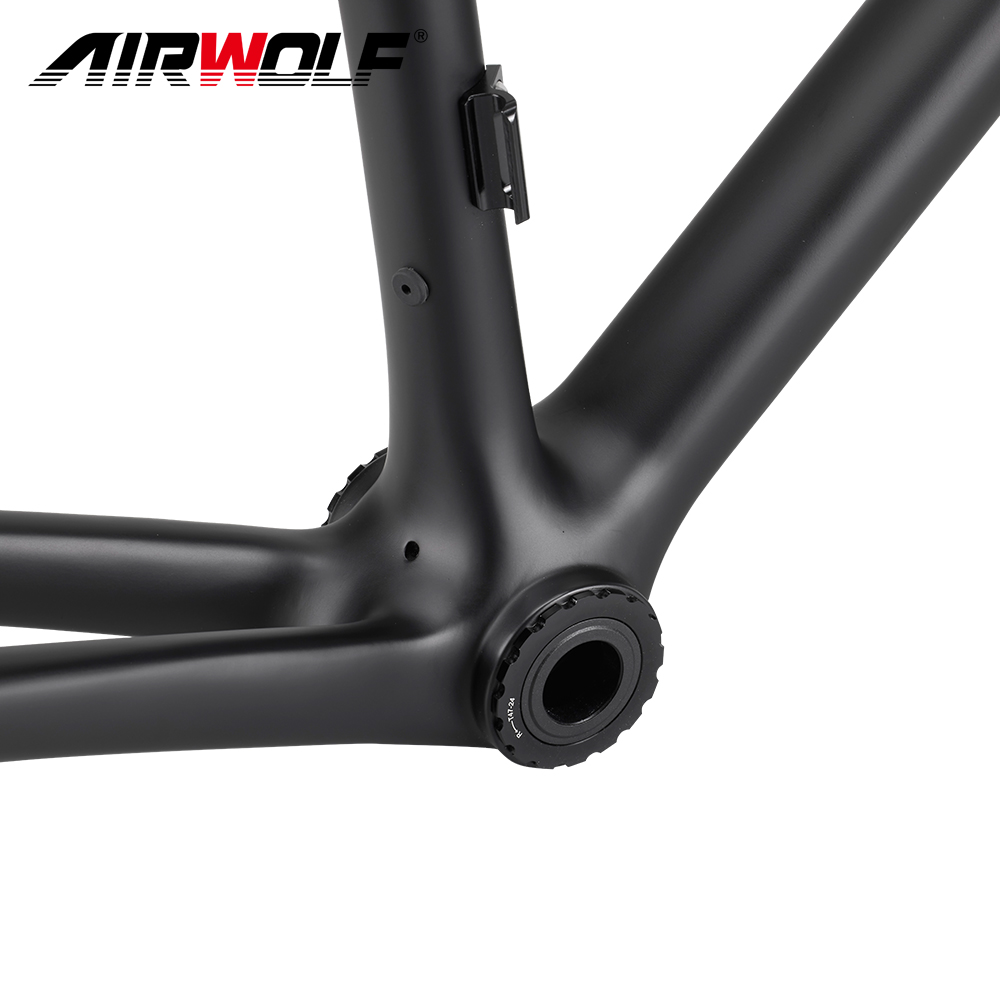

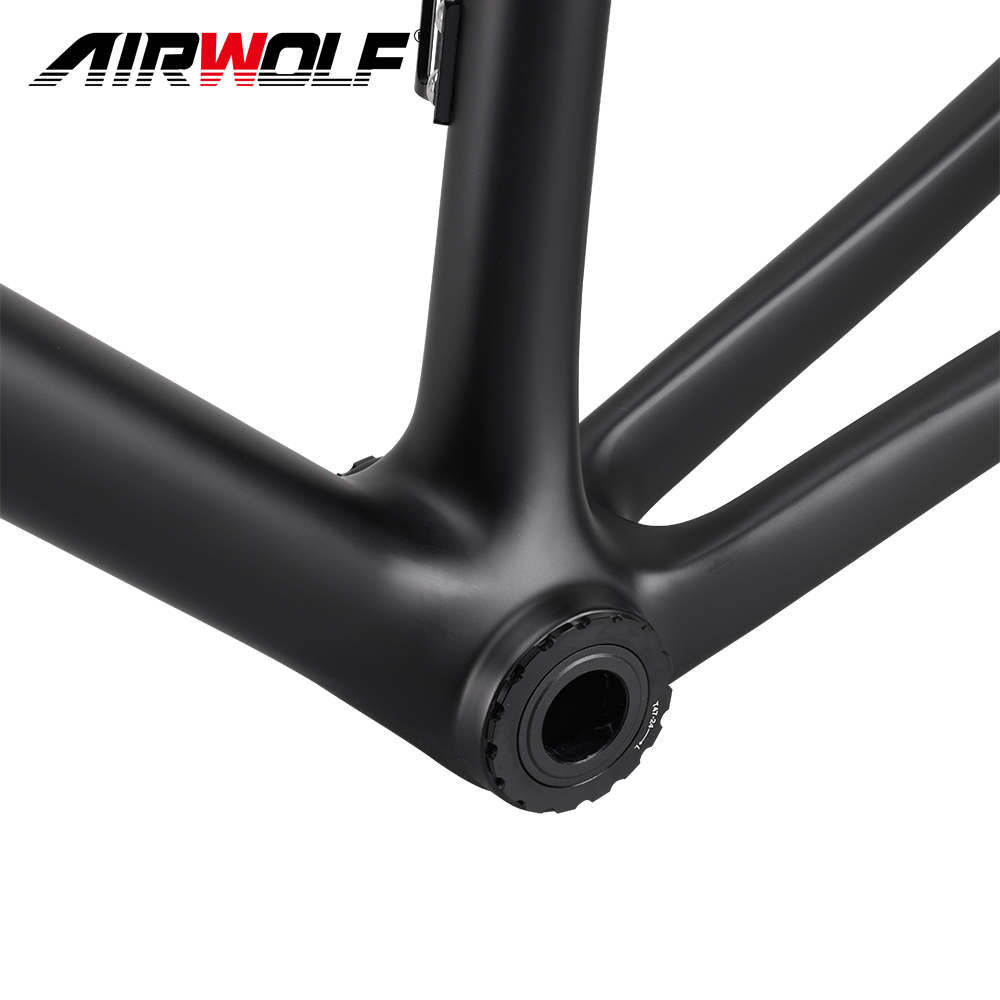

Bottom Bracket : T47 Thread
Finish : Matte or Glossy

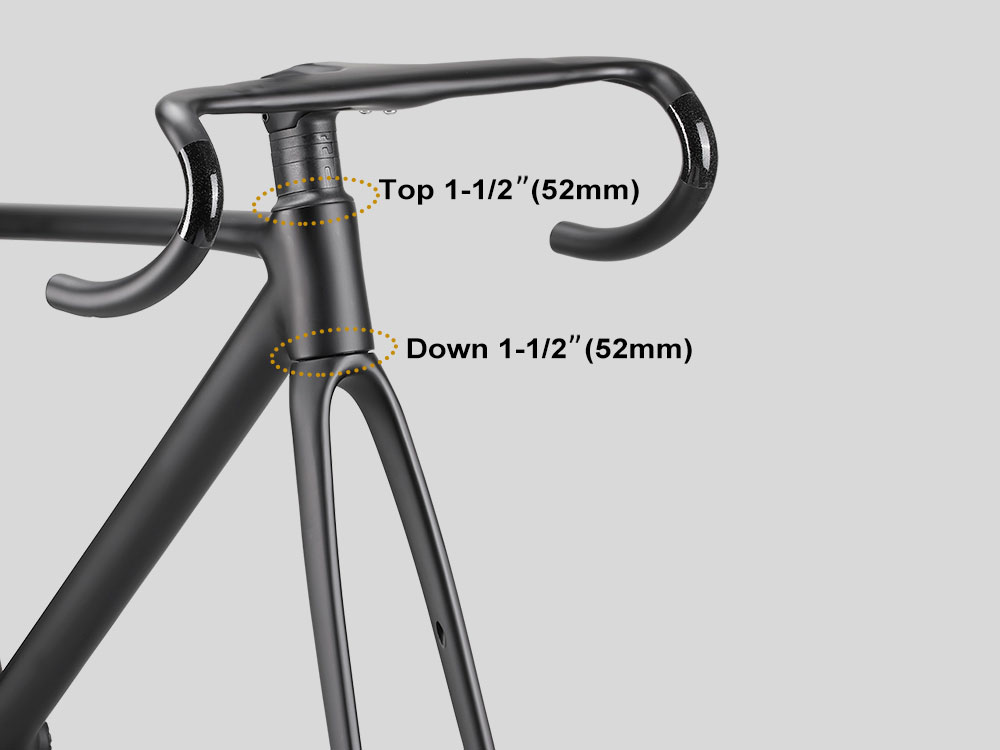

Headsets : 1-1/2" to 1-1/2"

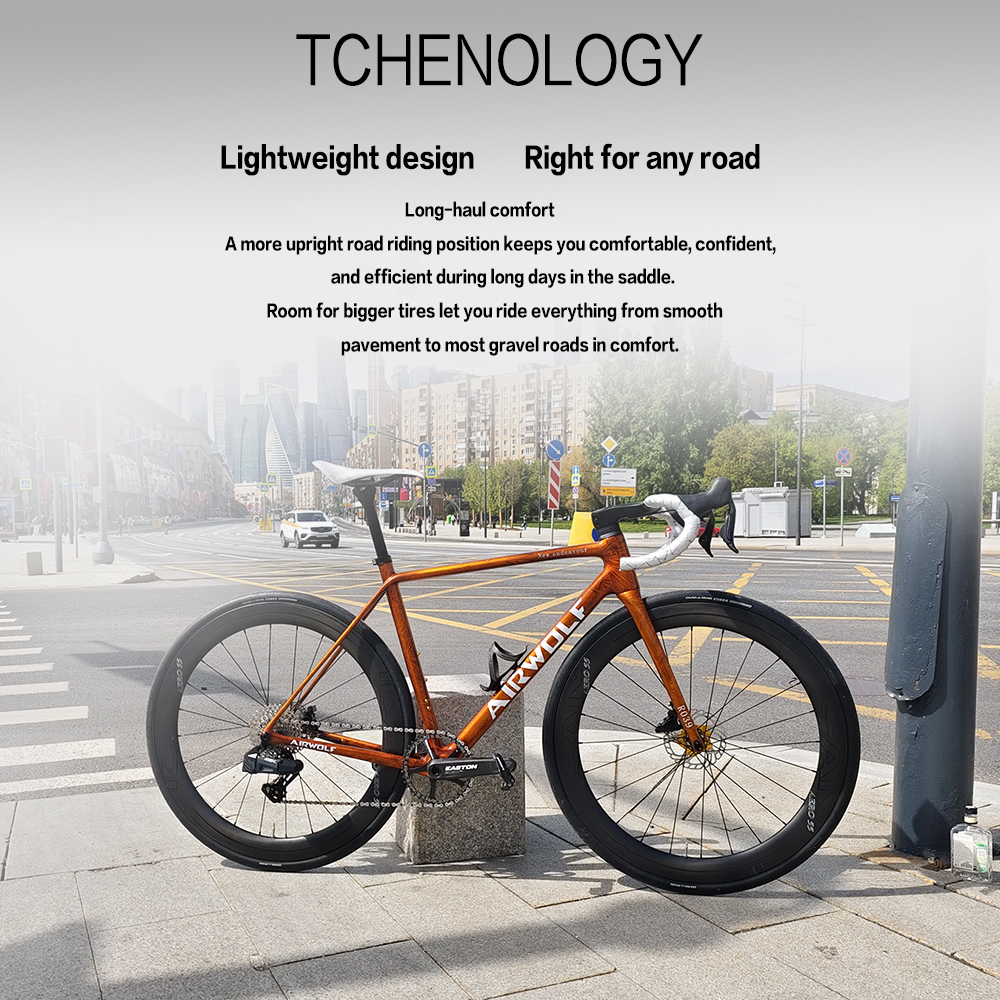

System : Endurance

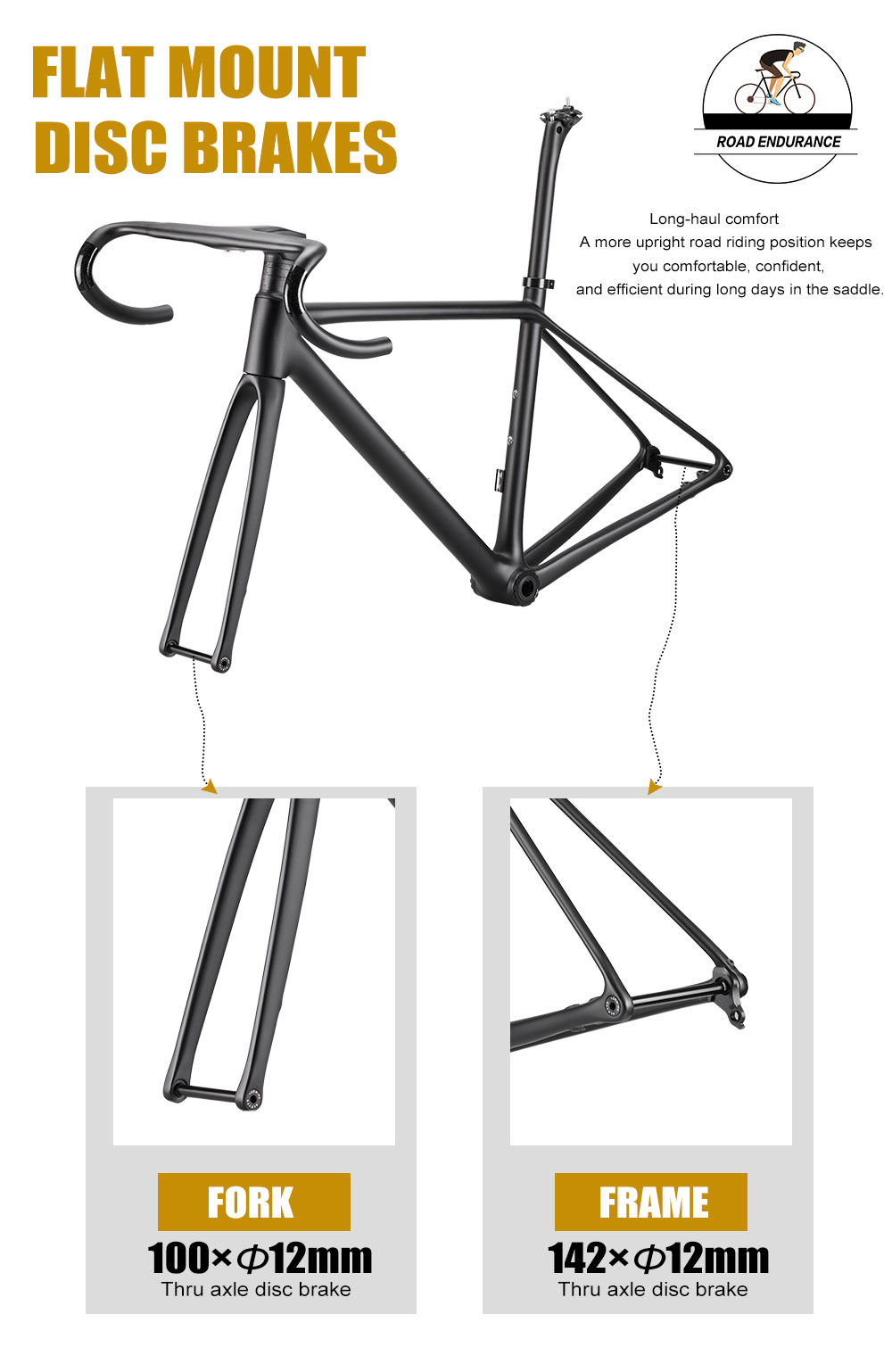

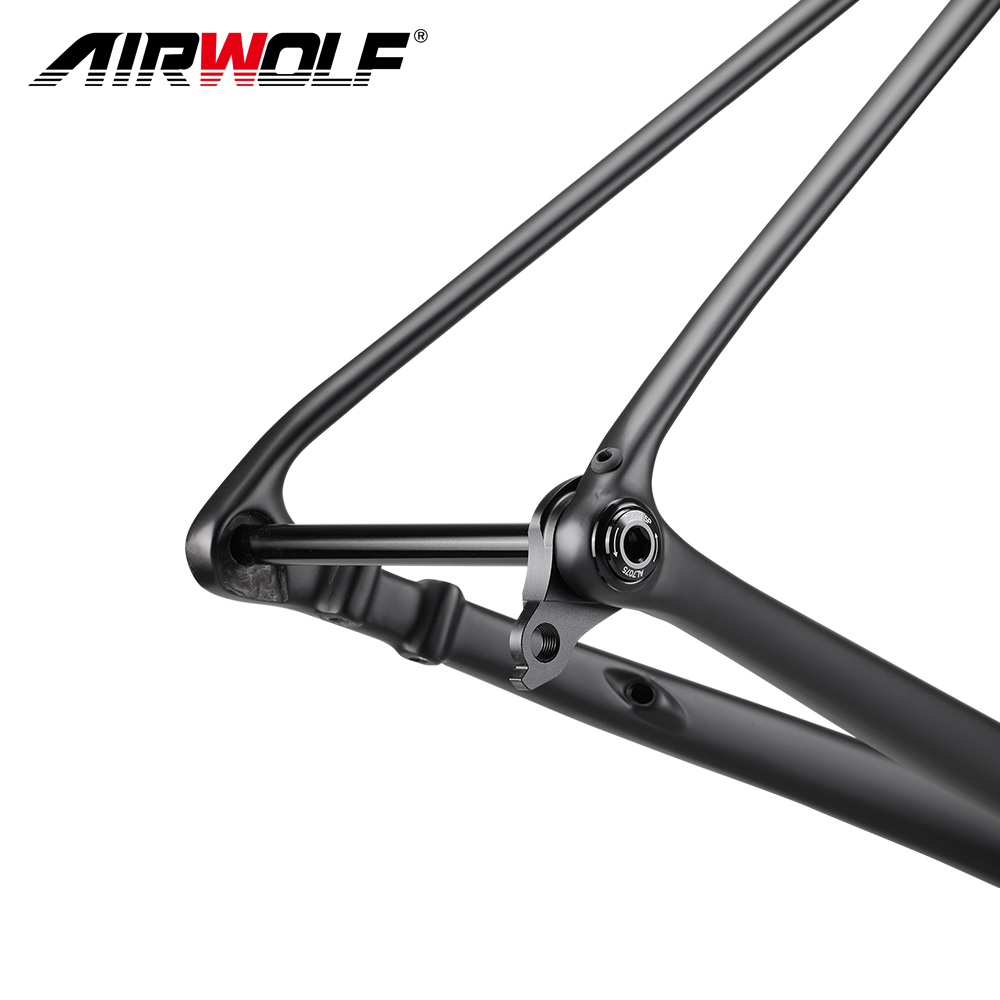

Thru Axle Size : Front 100*12mm , Rear 142*12mm

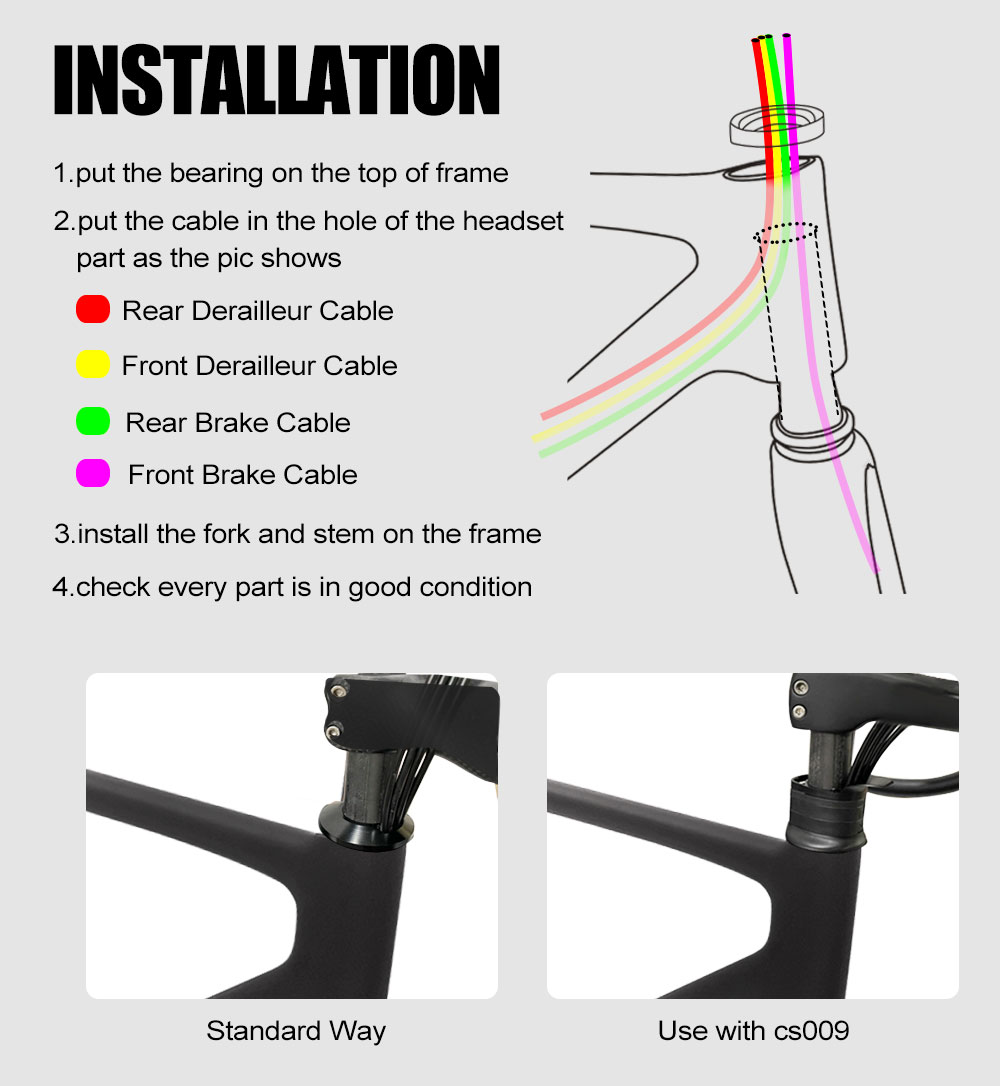

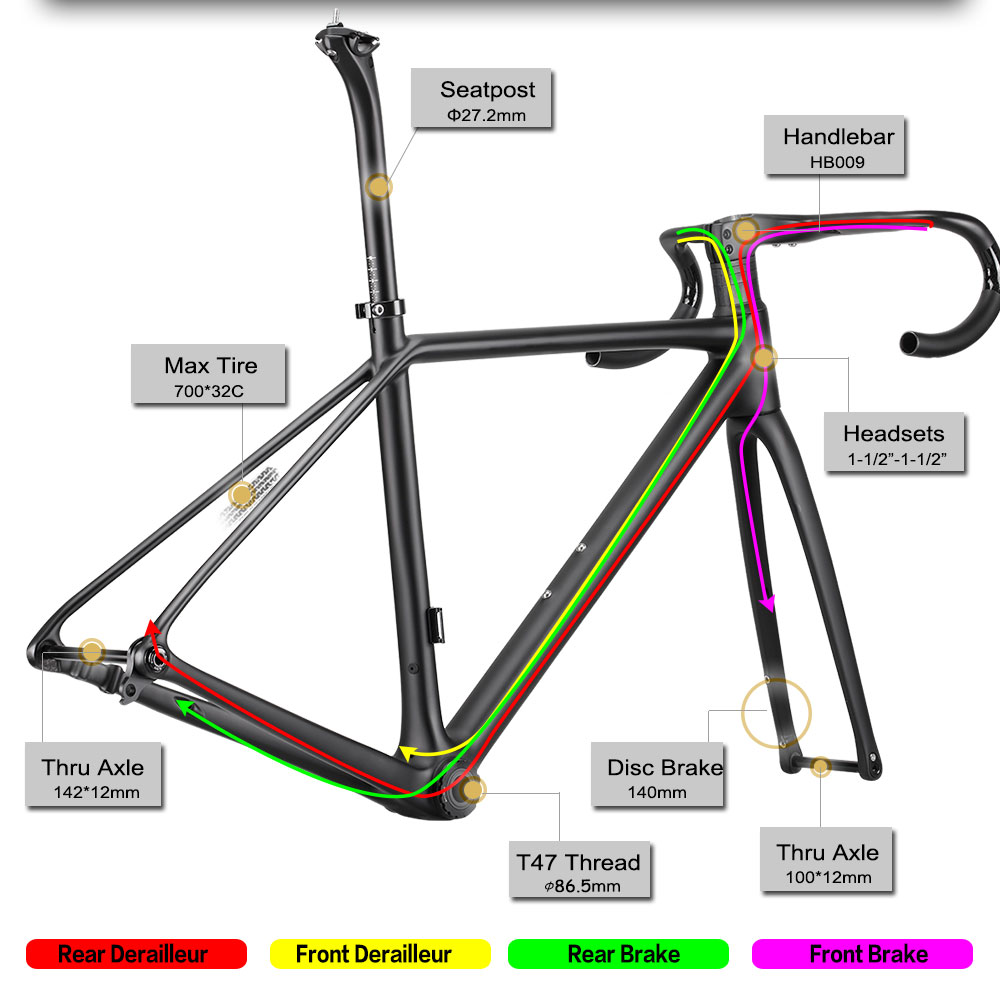

Cable Routing : Internal Cable Routing

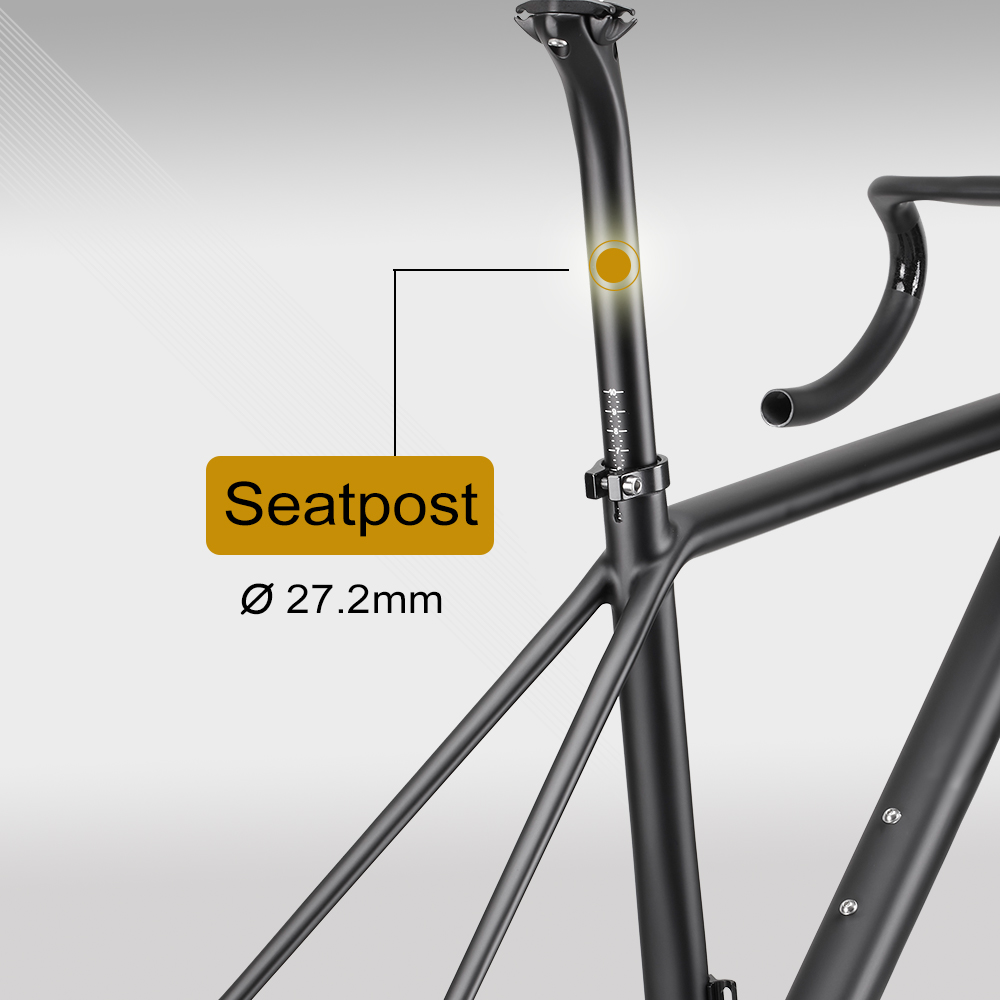

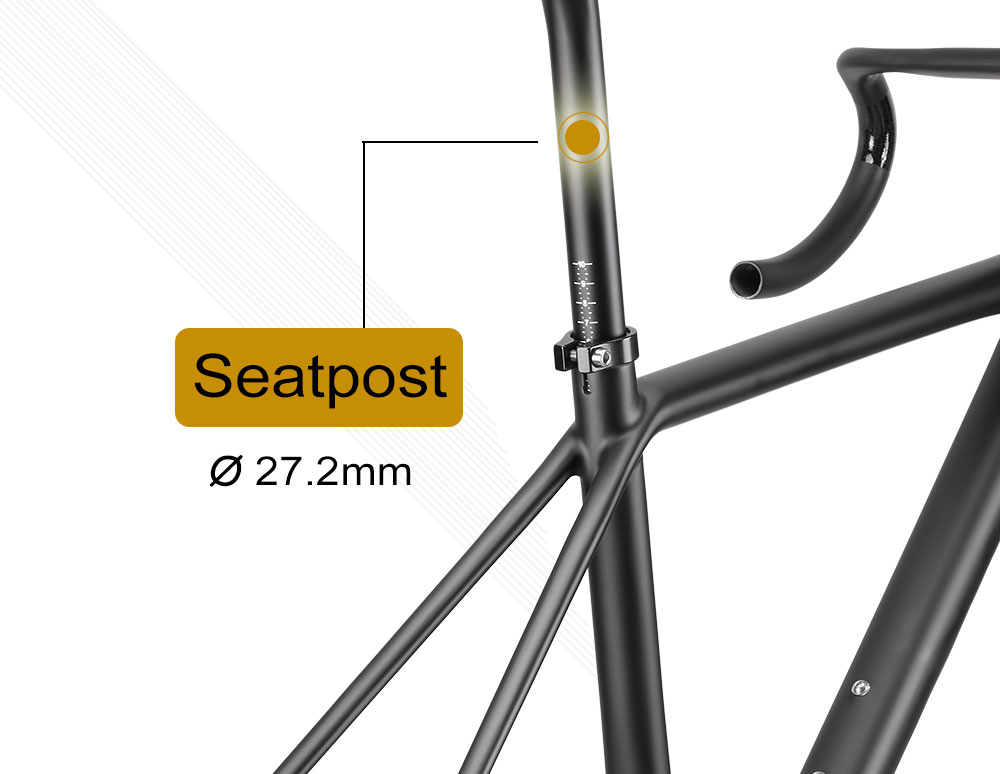

Seatpost : 27.2MM
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical
Weight : Frame 800g (size 46cm) , Fork 370g，Seatpost 190g

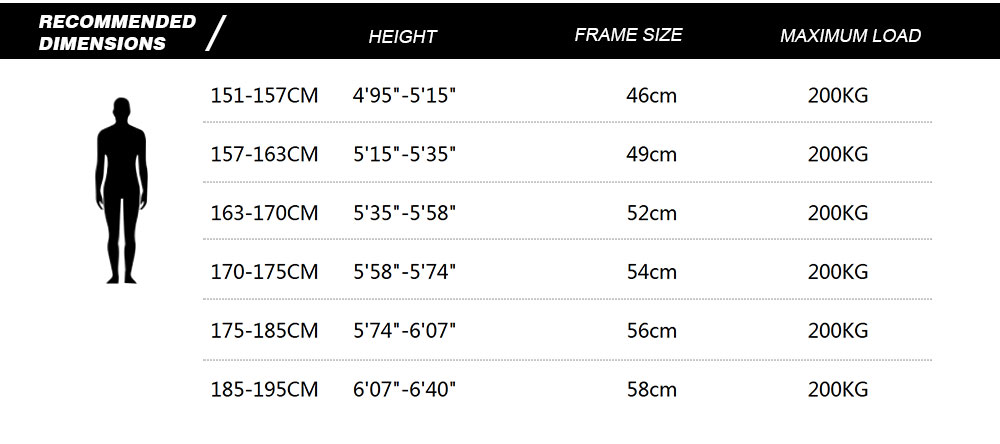

Frame Size : 46/49/52/54/56/58cm
Max Tire Size : 700*32C
Warranty : 2 Years

| 1.Brand Name:Airwolf
2.Frame Type:YFR045 Carbon Gravel Bike Frame
3.Frame Material:T1100 Toray Carbon Fiber
4.Bike Type:Cyclecross Gravel Bike
5.Carbon Weave:UD
6.Finish:Matte Or Glossy
7.Bottom Bracket:BB386 (46*86.5mm)
8.Headsets:Up 1-1/8'' Down 1-1/2''
9.Brake Type:Disc Brake
10.Disc Rotor Size:140/160mm
11.Fork Thru Axle:100*12mm
12.Frame Thru Axle:142*12mm
13.Cable Routing:Internal Cable Routing
14.Front Derailleur:Stationary Type
15.Suitable Derailleur:Di2 or Mechanical Dechaincal
16.Weight:Frame 1223g (Size:54cm),Fork 478g ,Seatpost 199g
17.Frame Size:49/52/54/56/58cm
18.Max Tire Size:700*45C
19.Warranty:2 Years
20.OEM Painting:Colors And logo
21.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum Parts
                            | YFR069/YFR072 Carbon Road Frame 700*28C Cheap Price And High Quality Road Bike Frame Disc Braeks and Rim Brakes Also Available Road Bicycle Frame
YFR069 Carbon Road Frame Descriptions:
1>Material:T1100 Carbon Fiber,
2>Carbon Weave:UD,
3>Bottom Bracket:BB386
4>Available Size:46/48/50/52/54cm
5>Fork:100*9mm,Frame:130*9mm
6>Max Tires:700*28C
7>Including:Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer

YFR069 Carbon Road Frame Descriptions:
1>Material:T1100 Carbon Fiber,
2>Carbon Weave:UD,
3>Bottom Bracket:BB386
4>Available Size:46/48/50/52/54cm
5>Fork:100*12mm,Frame:142*12mm
6>Max Tires:700*28C
7>Including:Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer

| TT Frame Material : T1100 Toray Carbon Fibre
Frame Type : Carbon TT Frame/Time Trial Frame/Triathlon Bike Frame
Frame Model : YFT058
Carbon Weave : UD
Bottom Bracket : BB386
Finish : Matte or Glossy
Headsets : 1-1/2"(52mm) to 1-1/2"(52mm)
System : Triathletes, time trialists, general speed demons
Thru Axle Size : Front 100*12mm,Rear 142*12mm
Cable Routing : Internal Cable Routing
Type : Carbon Triathlon Bike Frame
Apply To : Triathlon , paved roads
Seatpost : Framed Specific , 0°seat angle,lengt 390mm
Front Derailleur : Stationary type
Suitable Derailleur : Di2 or Mechanical
Brake Type : Disc Brake
Battery : Inside the seatpost
Weight : Frame 1300g (size M) , Fork 375g , Seatpost 275g ,Stem 395g , TT Bar 559g(size 420mm)
Frame Size : S/M/L
Stem Size : 110mm
TT bar size : 400/420/440mm
Max Tire Size : 700*28C
Frameset Include : Frame , Fork , Seatpost ,Stem ,TT Bar , Headsets ,Seatpost Clamp , BB transfer ,Thru Axle Rod , Aluminum parts
Warranty : 2 Years

|  | Frame Details : Gravel Bike Frame
Frame Material : T1100 Toray Carbon Fiber
Frame Type : Cyclocross Disc Road Bike Frame
Carbon Weave : UD
Bottom Bracket : T47 Thread
Finish : Matte or Glossy
Headsets : 1-1/2" to 1-1/2"
System : Frame Gravel Bike
Thru Axle Size : Front 100*12mm , Rear 142*12mm
Cable Routing : Internal Cable Routing
Type : Gravel
Seatpost : 27.2mm
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical
Weight : Frame 1250g (size M) , Fork 450g , Seatpost 190g , Handlebar 390g(size 420*110mm)
Frame Size : XS/S/M/L/XL
Max Tire Size : 700*50C
Frameset Include : Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer,Thru Axle Rod
Warranty : 2 Years
Intergrated Handlebar Details
Handlebar Material : T800 toray carbon fiber
Carbon Weave : UD
Finish : Matte or Glossy
Width : 360/380/400/420/440mm
Stem Lenght : 80/90/100/110/120mm
Stem Diameter : 28.6mm
Drop : 127mm
Reach : 77mm
Weight : 362g (for size 360*80mm)
Warranty : 1 Years

 |
| Additional information |
| Frame Size |
46CM, 49CM, 52CM, 54CM, 56CM, 58CM
|
| Handlebar Size |
360*80mm, 360*90mm, 360*100mm, 360*110mm, 360*120mm, 380*80mm, 380*90mm, 380*100mm, 380*110mm, 380*120mm, 400*80mm, 400*90mm, 400*100mm, 400*110mm, 400*120mm, 420*80mm, 420*90mm, 420*100mm, 420*110mm, 420*120mm, 440*80mm, 440*90mm, 440*100mm, 440*110mm, 440*120mm
|
| Finished |
Matte, Glossy
|
| Colors |
Black, White, Sliver, Champagne gold, Chameleon Colors, Colorful
|
|
| Frame Size |
49CM, 52CM, 54CM, 56CM, 58CM
|
| Color |
Black, Blue and Orange, Dark Blue, Red, Grass Green, Yellow, Green, Light Blue, Grey, Metallic Red And Black, Metallic Green And Black, Metallic Dark Blue And Black, Metallic Orange And Black, Metallic Gold And Black, Metallic Indigo Blue And Black, Metallic Rose Red And Black, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple, Metallic Rose Red, Chameleon, Ice Crystal Green, Ice Crystal Dark Blue, Ice Crystal Light Blue, Ice Crystal Gold, Ice Crystal Red, Ice Crystal Purple, Ice Crystal Pink, Ice Crystal Gray
|
| Finished |
Matte, Glossy
|
|
| Weight |
4.5 kg |
| Frame Size |
46cm, 48cm, 50cm, 52cm, 54cm
|
| Finished |
Matte, Glossy
|
| Brake Style |
V Brake, Disc Brake
|
| Color |
Black, Grey, Red, White, Pink, Navy Blue, Light Blue, Orange, Green, Yellow, Blue, Rose Red, Transprency Red, Transprency Dark Green, Transprency Green, Transprency Blue, Transprency Orange, Transprency Gold, Transprency Deep Green, Transprency Deep Purple, Transprency Light Purple, Chameleon 01, Chameleon 02, Chameleon 03, Chameleon 04, Chameleon 05, Chameleon 06, Chameleon 07, Chameleon 08, Chameleon 09, Chameleon 10, Chameleon 11, Chameleon 14
|
|
| Frame Size |
S(51cm), M(54cm), L(57cm)
|
| Handlebar Size |
400mm, 420mm, 440mm
|
| Stem Size |
110mm
|
| Color |
All Black, Red, Dark Blue, Green, Light Blue, Pearl White, Grey, Orange, yellow, Chameleon Colors, Ice Crystal Green, Ice Crystal Dark Blue, Ice Crystal Orange, Ice Crystal Light Blue, Ice Crystal Gold, Ice Crystal Red, Ice Crystal Purple, Ice Crystal Pink, Ice Crystal Gray, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple, Metallic Rose Red
|
| Finished |
Matte, Glossy
|
|
| Frame Size |
50cm(S), 52cm(M), 54cm(ML), 56cm(L), 58cm(XL)
|
| Handlebar Size |
400*90mm, 400*100mm, 400*110mm, 420*90mm, 420*100mm, 420*110mm, 440*90mm, 440*100mm, 440*110mm
|
| Finished |
Matte, Glossy
|
| Colors |
Carbon Red Smoke, Black and Chameleon, Black, Iridescent BluePeral
|
|
| Weight |
5.0 kg |
| Dimensions |
100 × 22 × 60 cm |
| Frame Size |
XS, S, M, L, XL
|
| Handlebar Size |
360*80mm, 360*90mm, 360*100mm, 360*110mm, 360*120mm, 380*80mm, 380*90mm, 380*100mm, 380*110mm, 380*120mm, 400*80mm, 400*90mm, 400*100mm, 400*110mm, 400*120mm, 420*80mm, 420*90mm, 420*100mm, 420*110mm, 420*120mm, 440*80mm, 440*90mm, 440*100mm, 440*110mm, 440*120mm
|
| Colors |
Black, Green and White, Chameleon, Colorful, Ice Crystal Green, Ice Crystal Dark Blue, Ice Crystal Orange, Ice Crystal Light Blue, Ice Crystal Gold, Ice Crystal Red, Ice Crystal Purple, Ice Crystal Pink, Ice Crystal Gray, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple, Metallic Rose Red
|
| Finished |
Matte, Glossy
|
|
