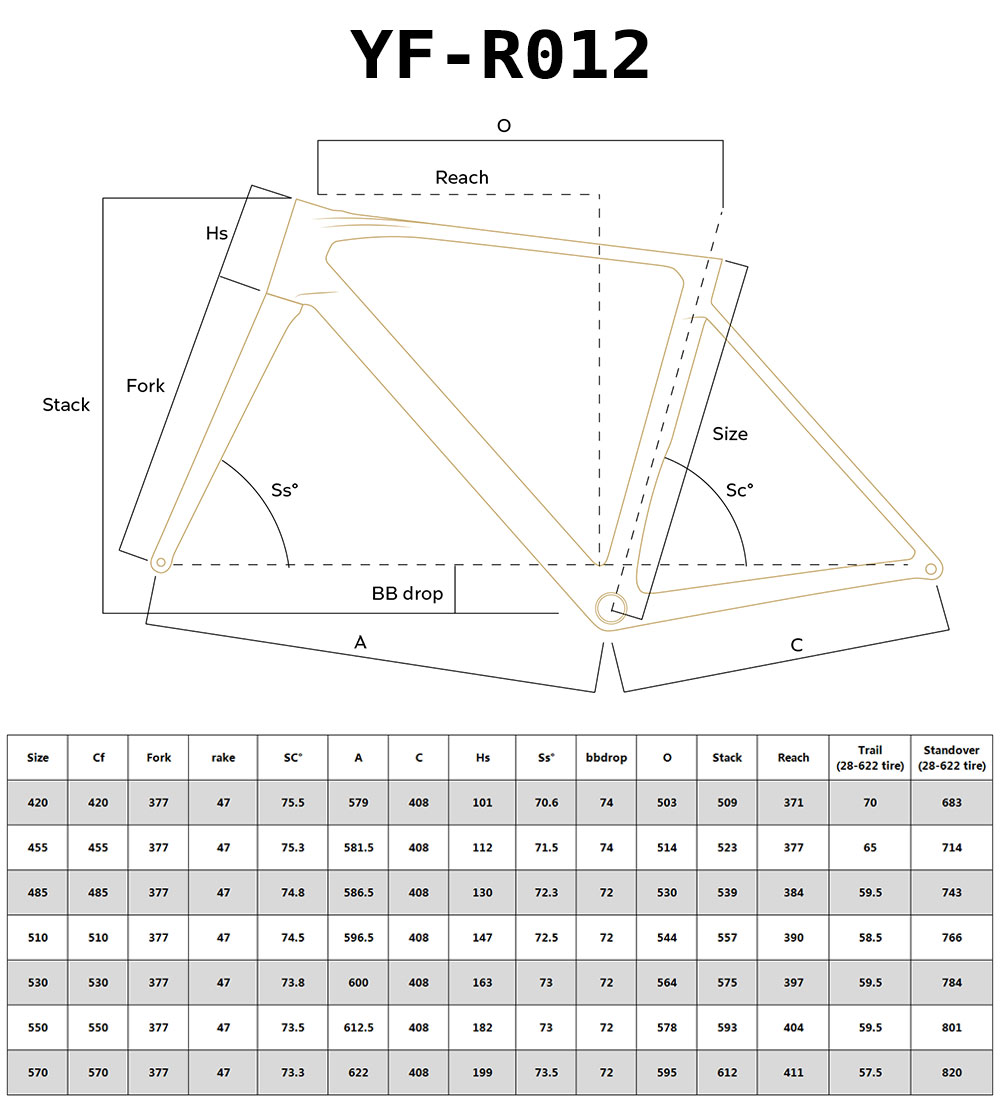

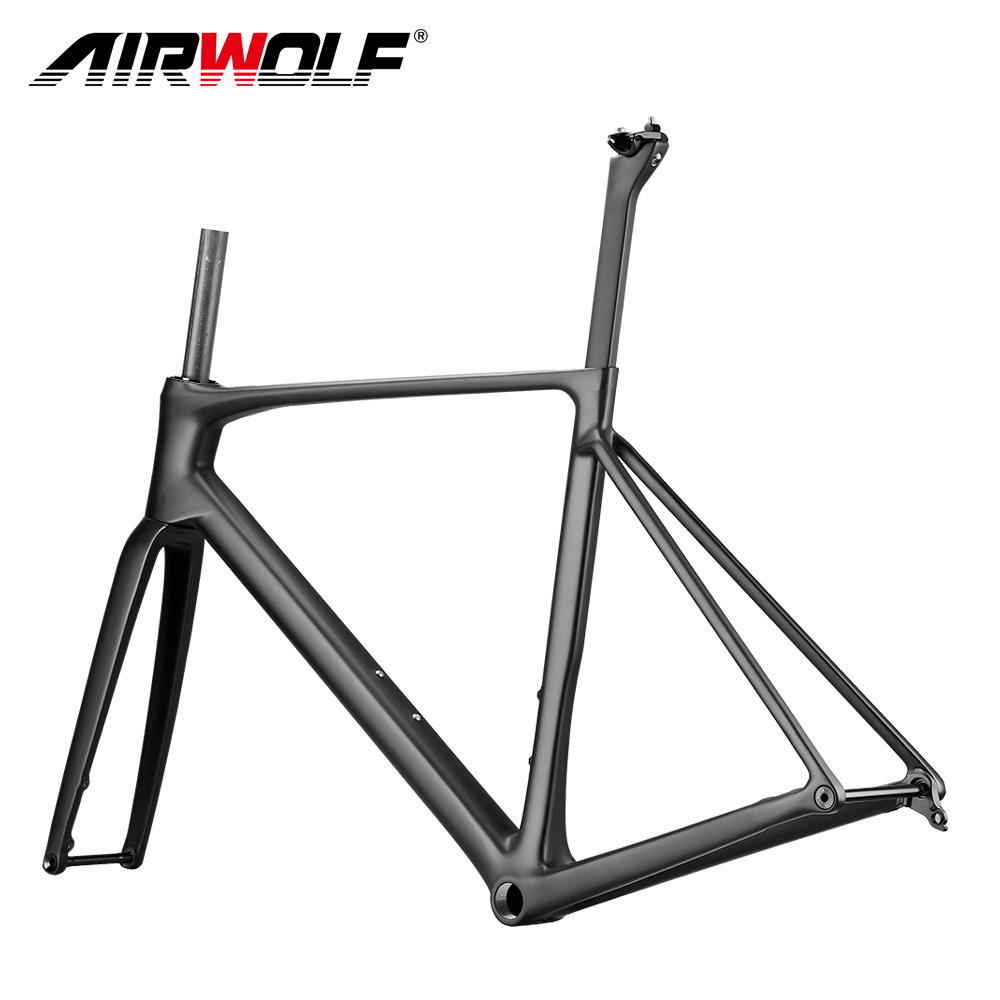

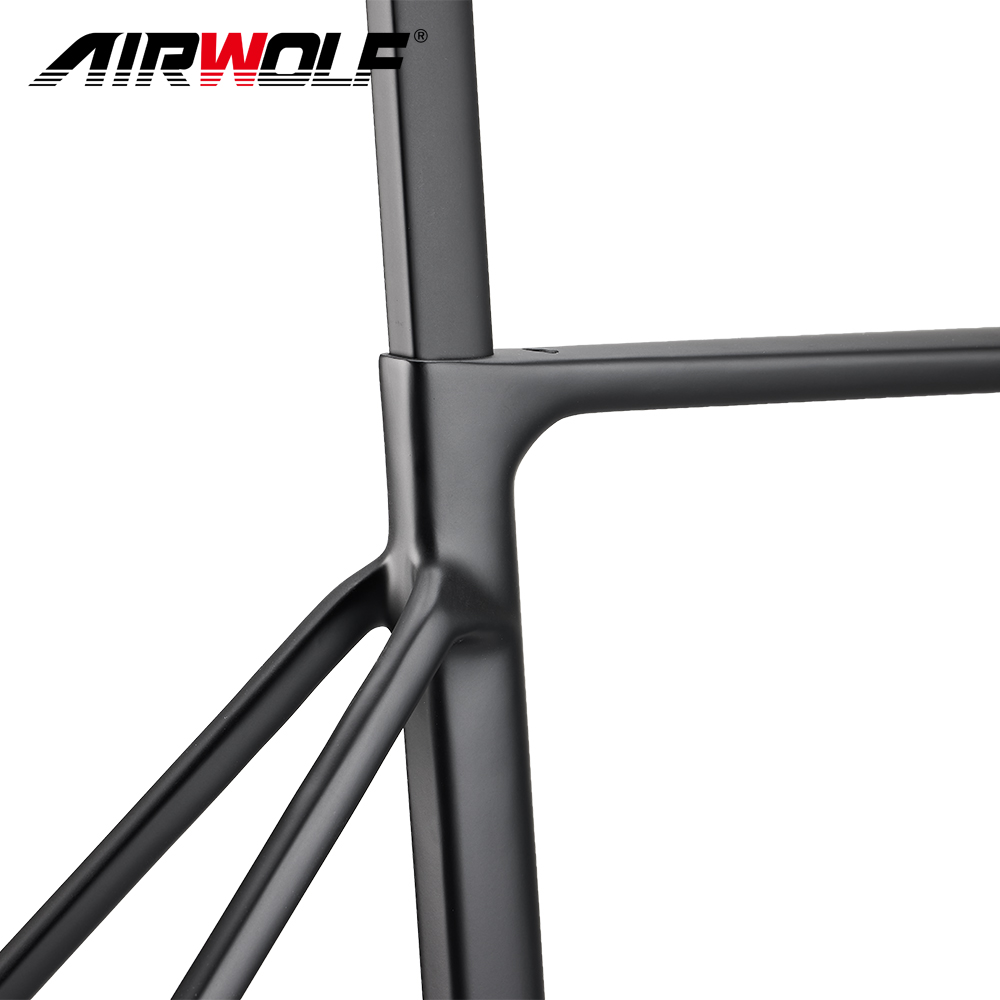

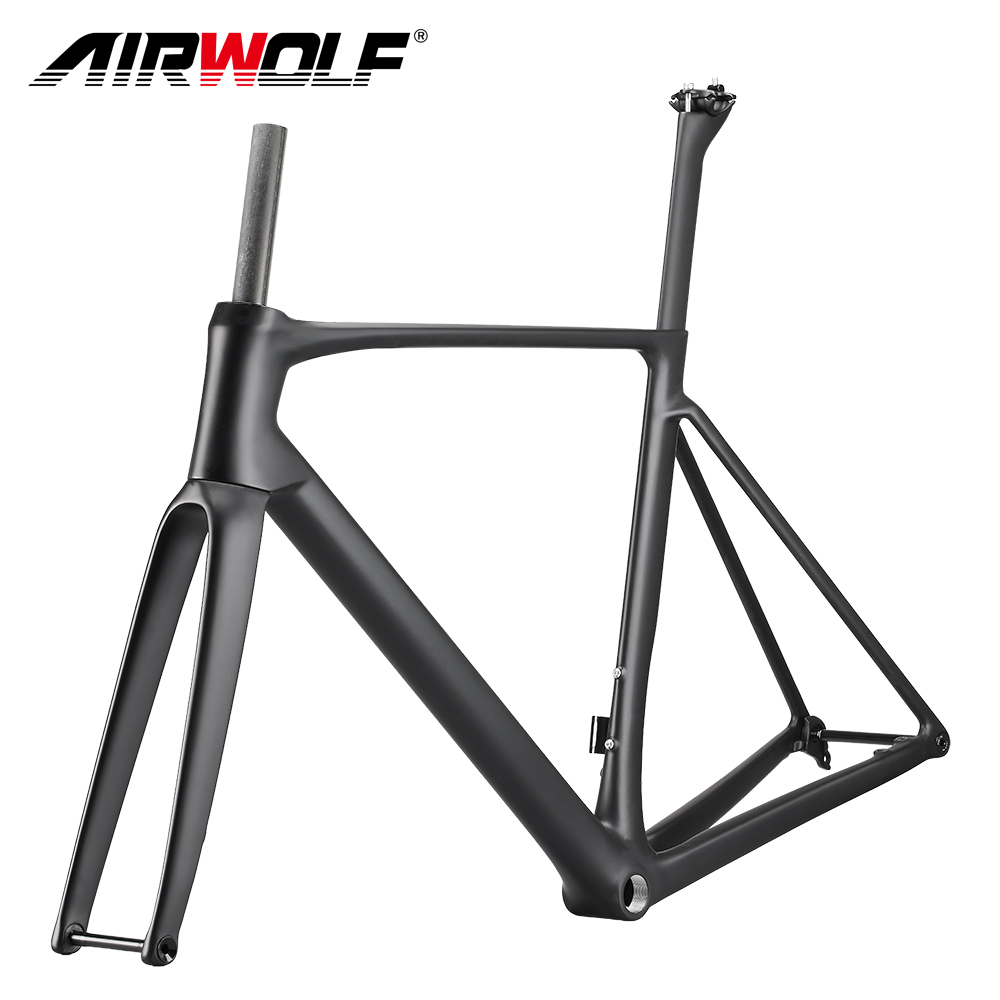

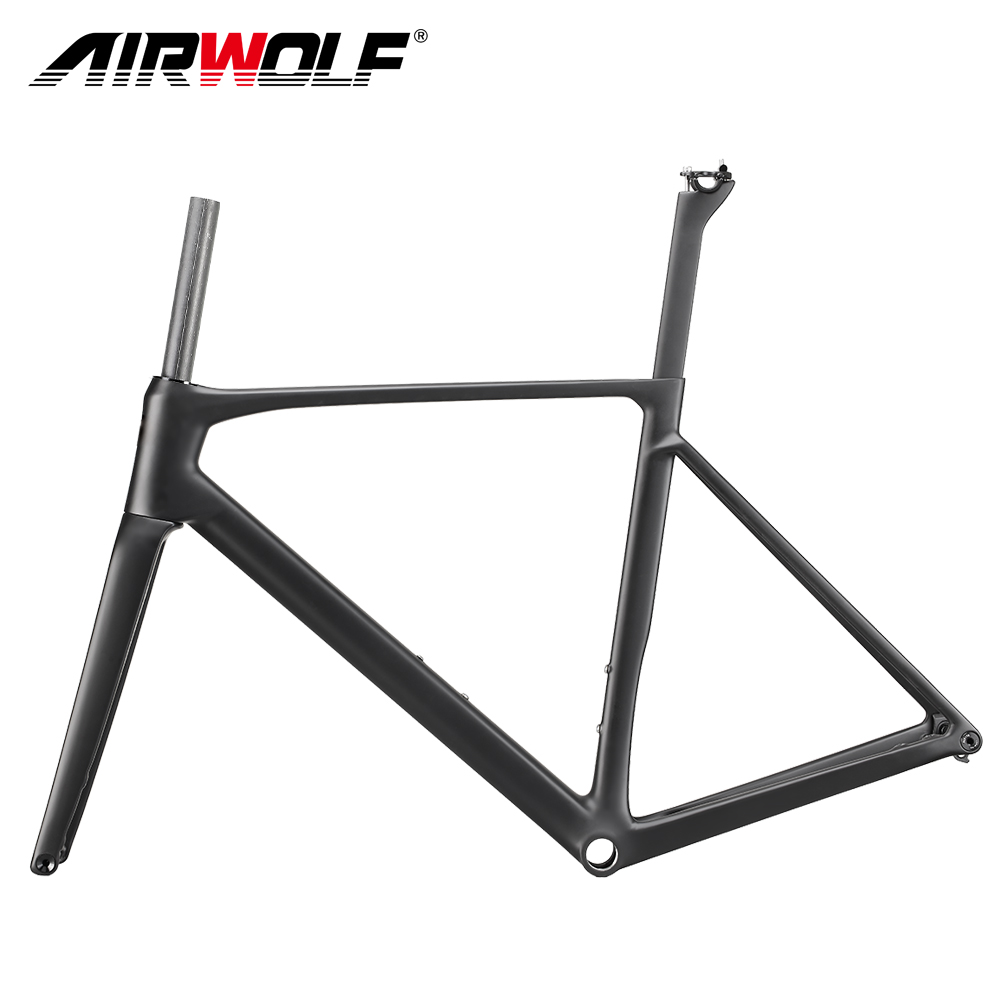

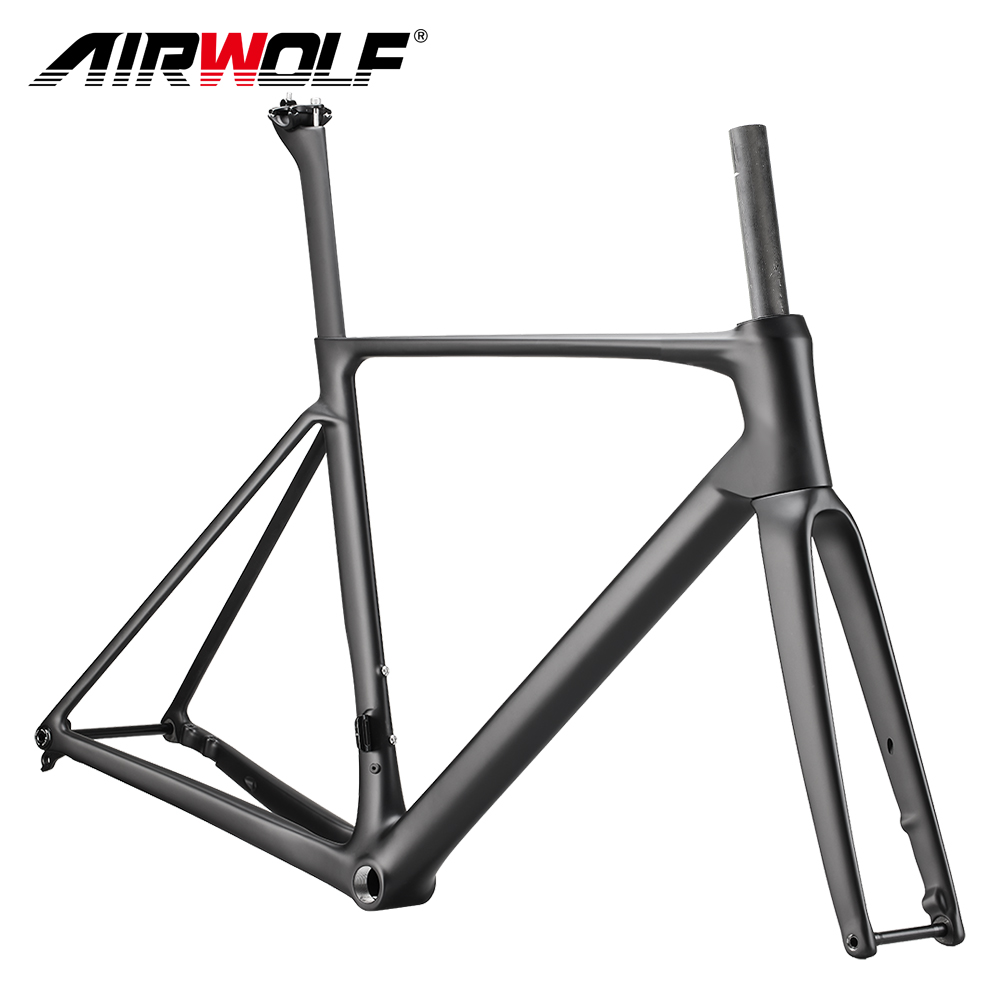

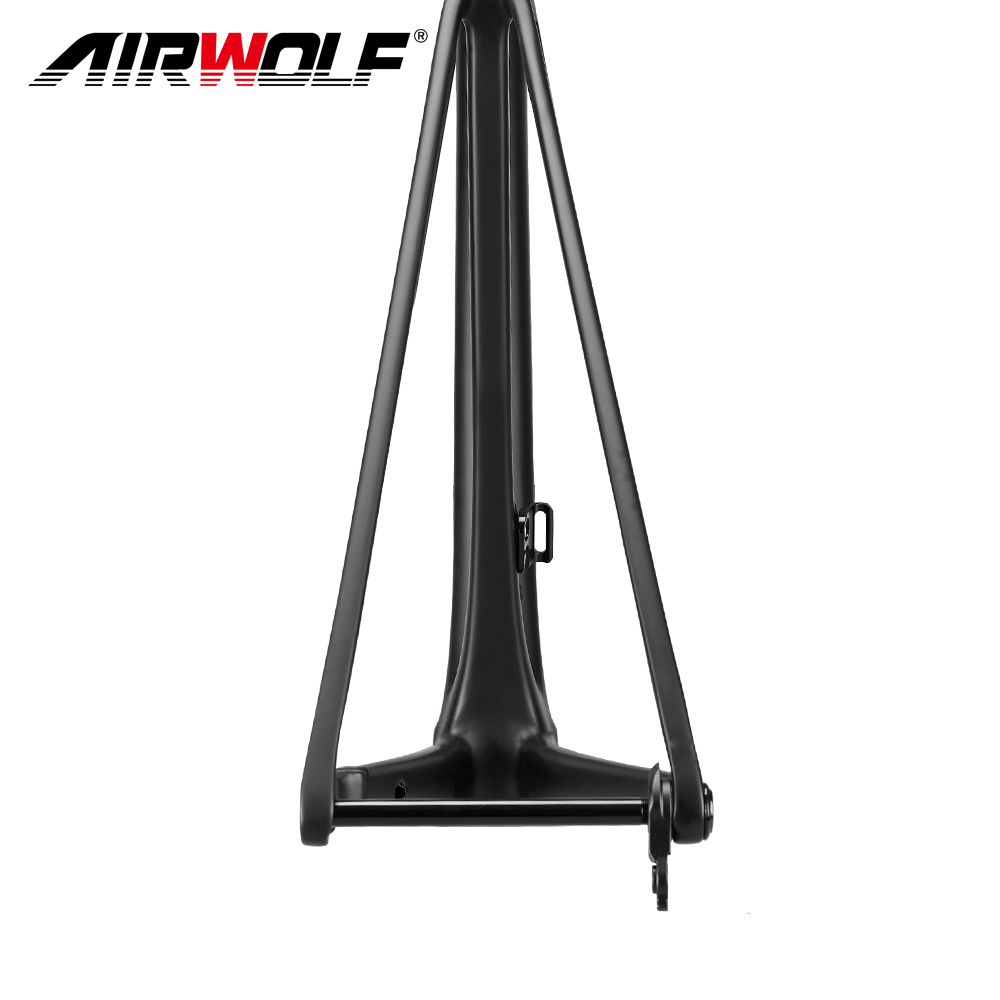

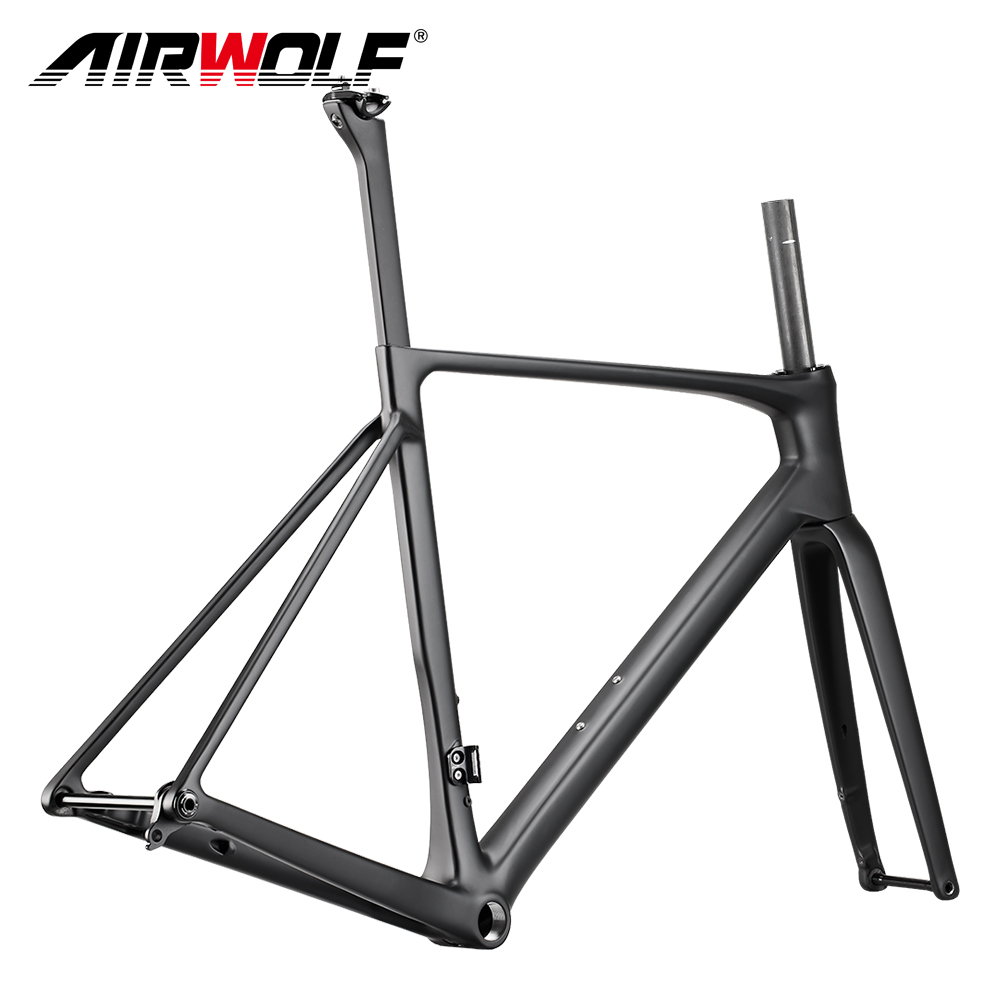

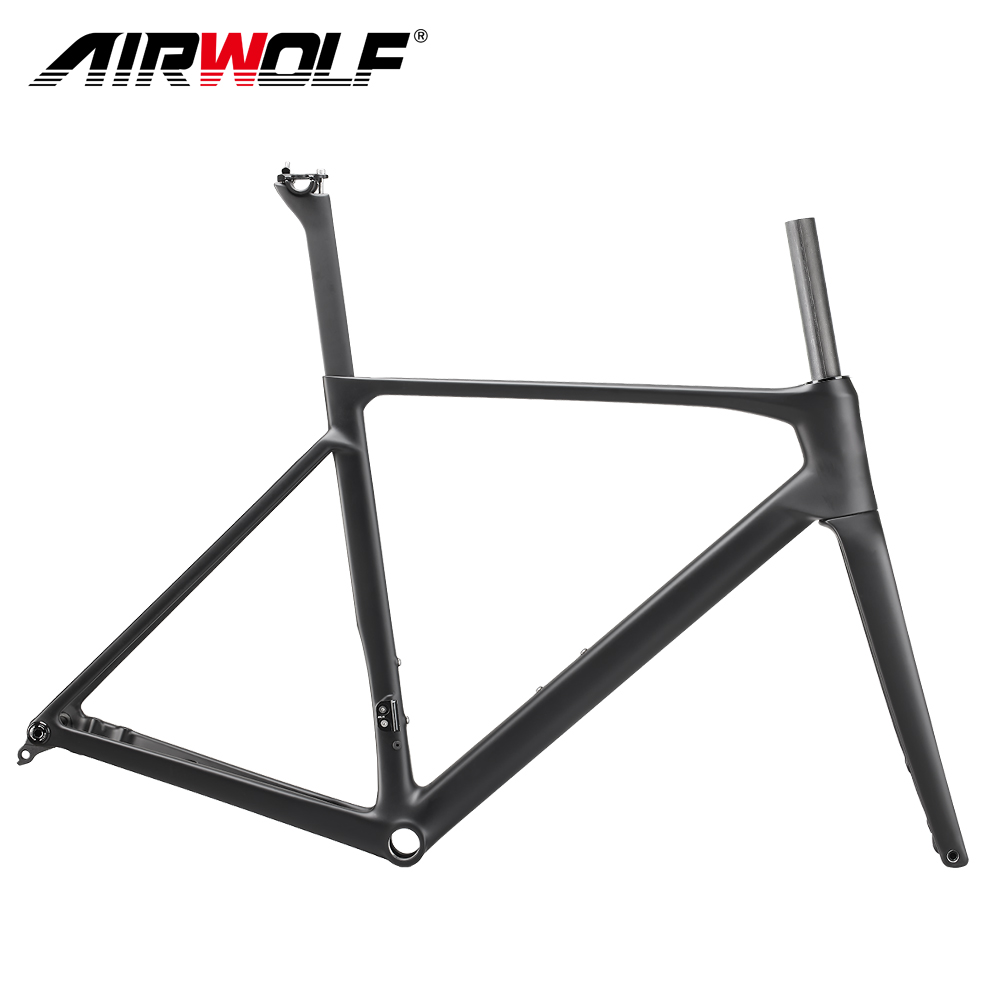

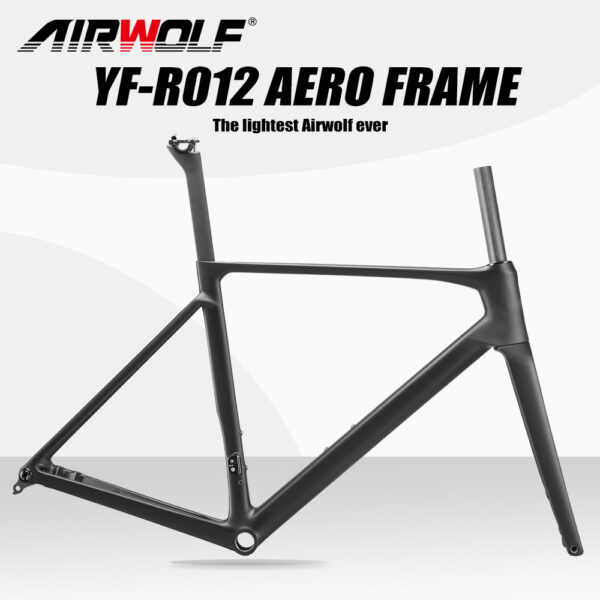

| Content | AIRWOLF YFR012 Black AERO Carbon Road Frame Full Internal Cable Routing Disc Brake BSA Bike Frames Frameset

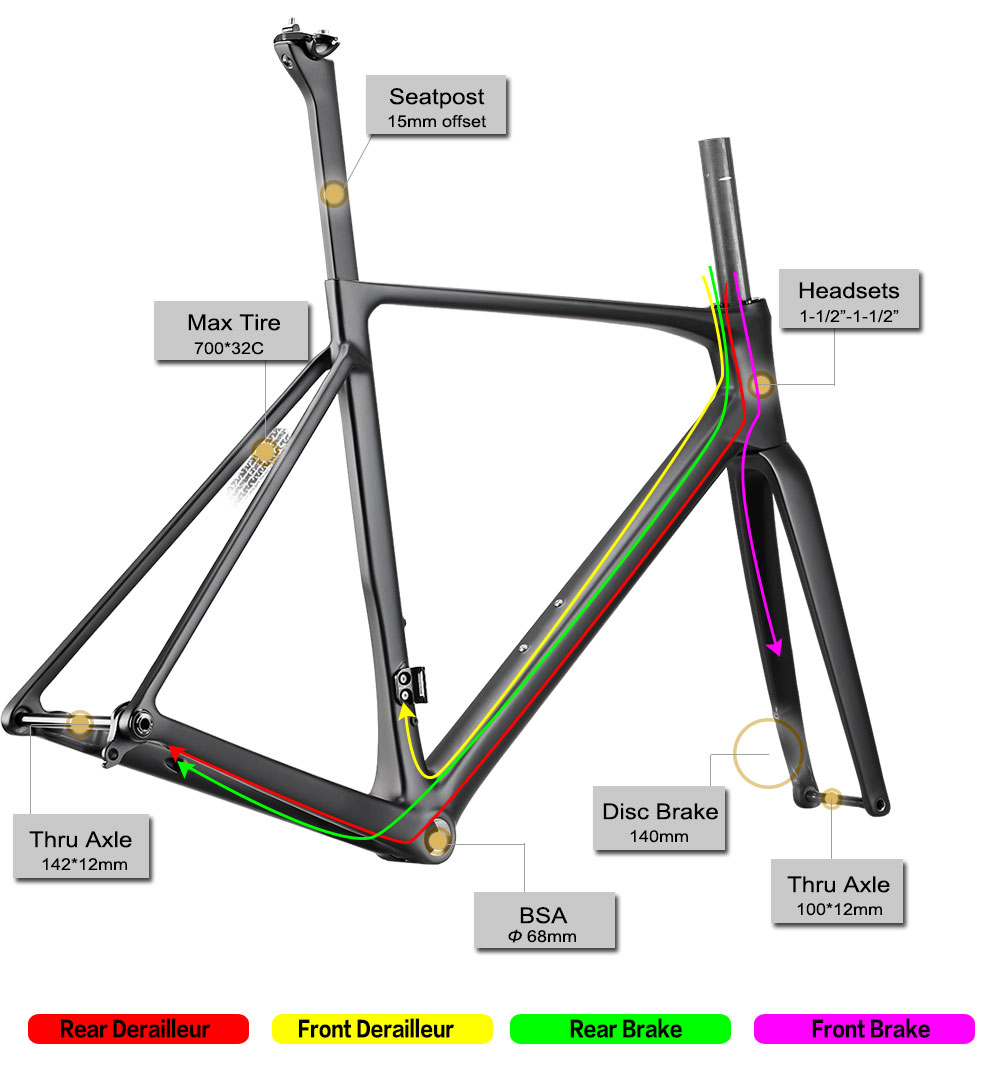

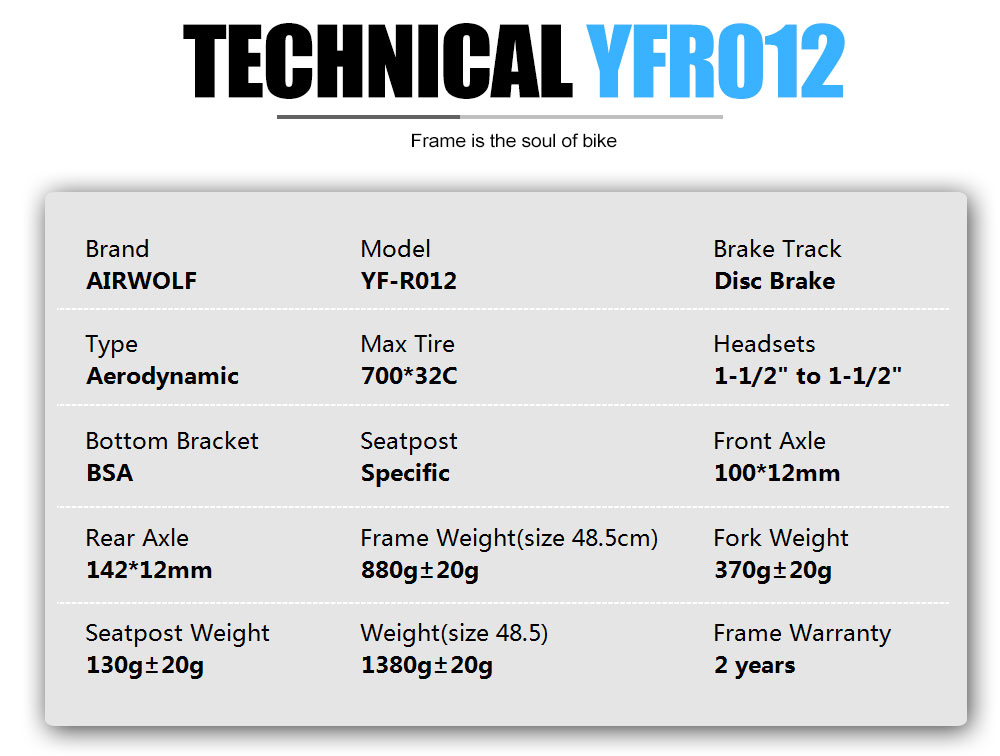

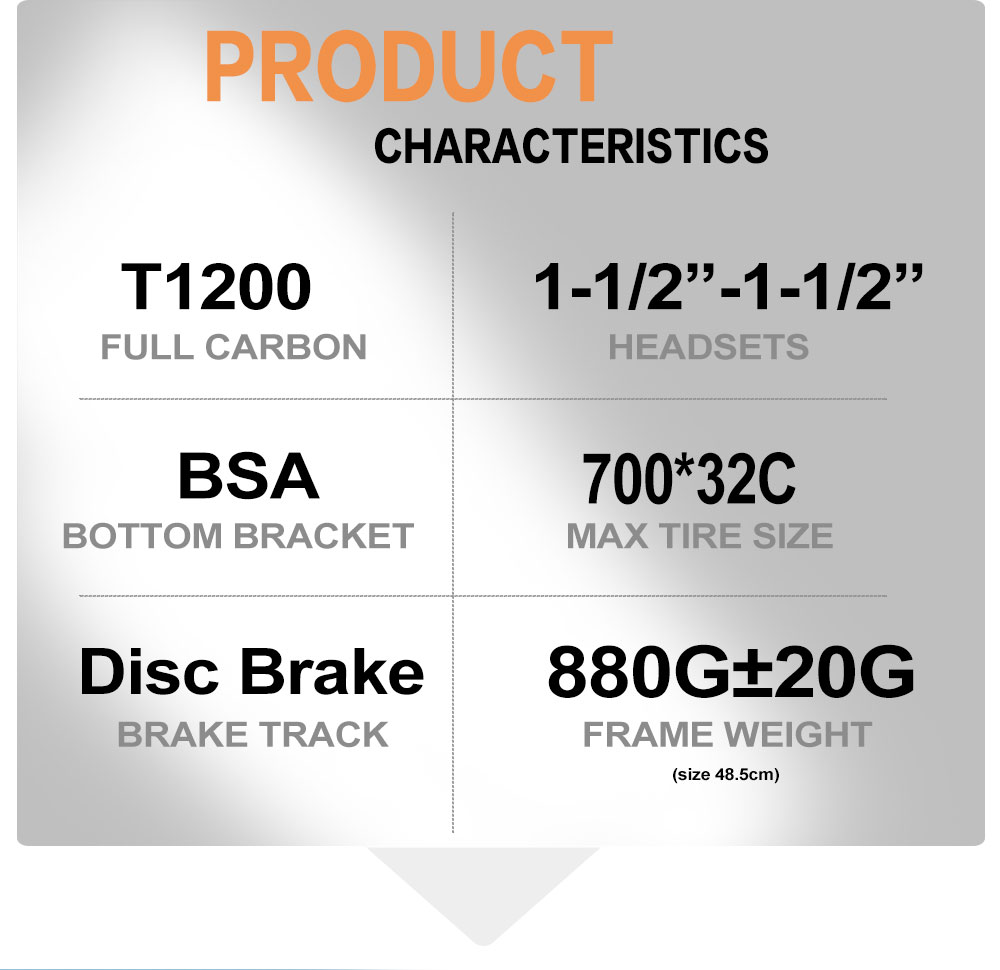

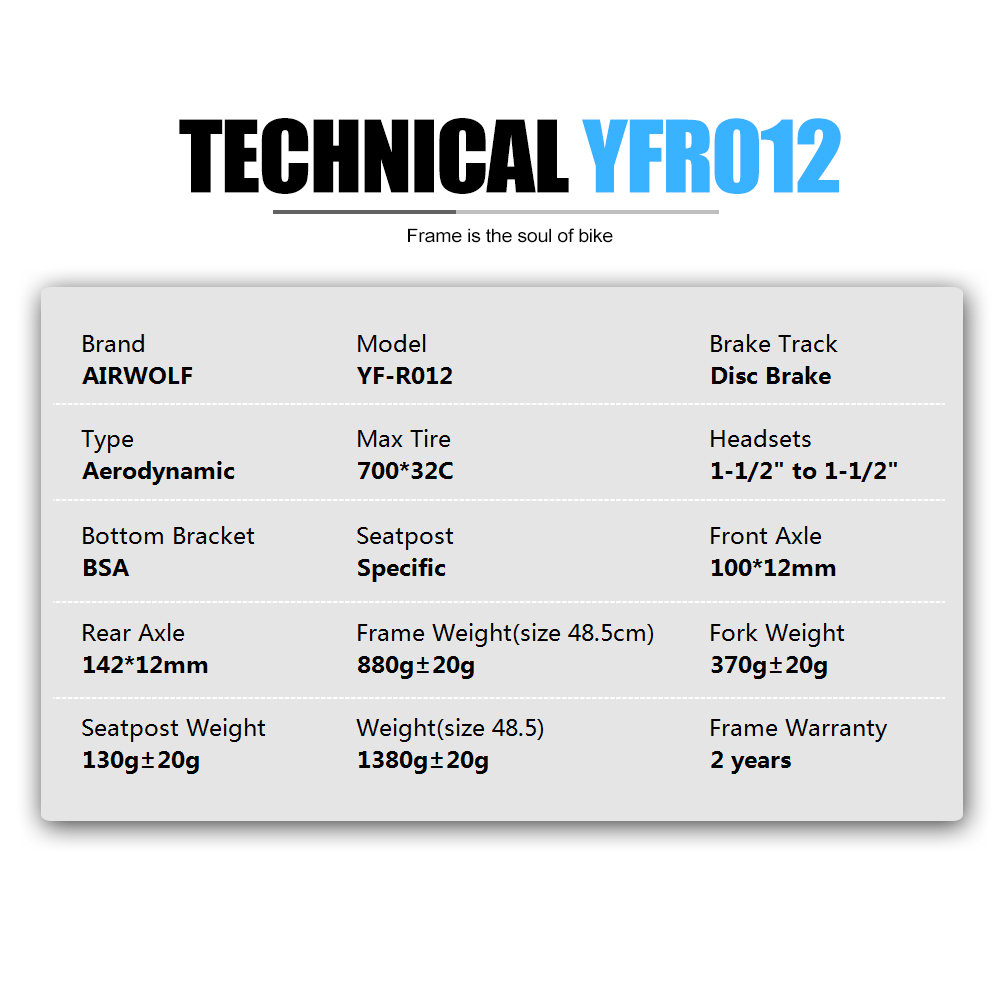

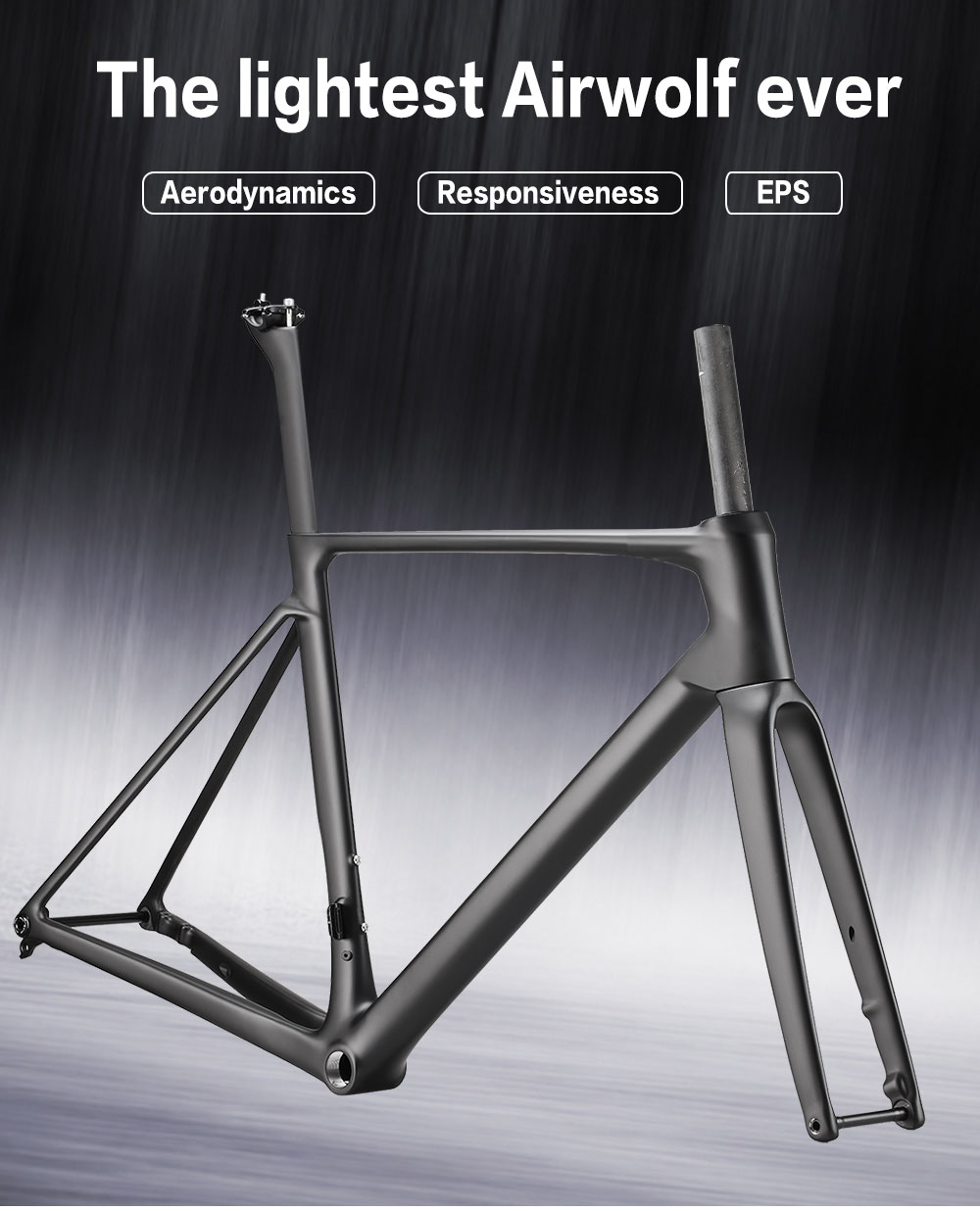

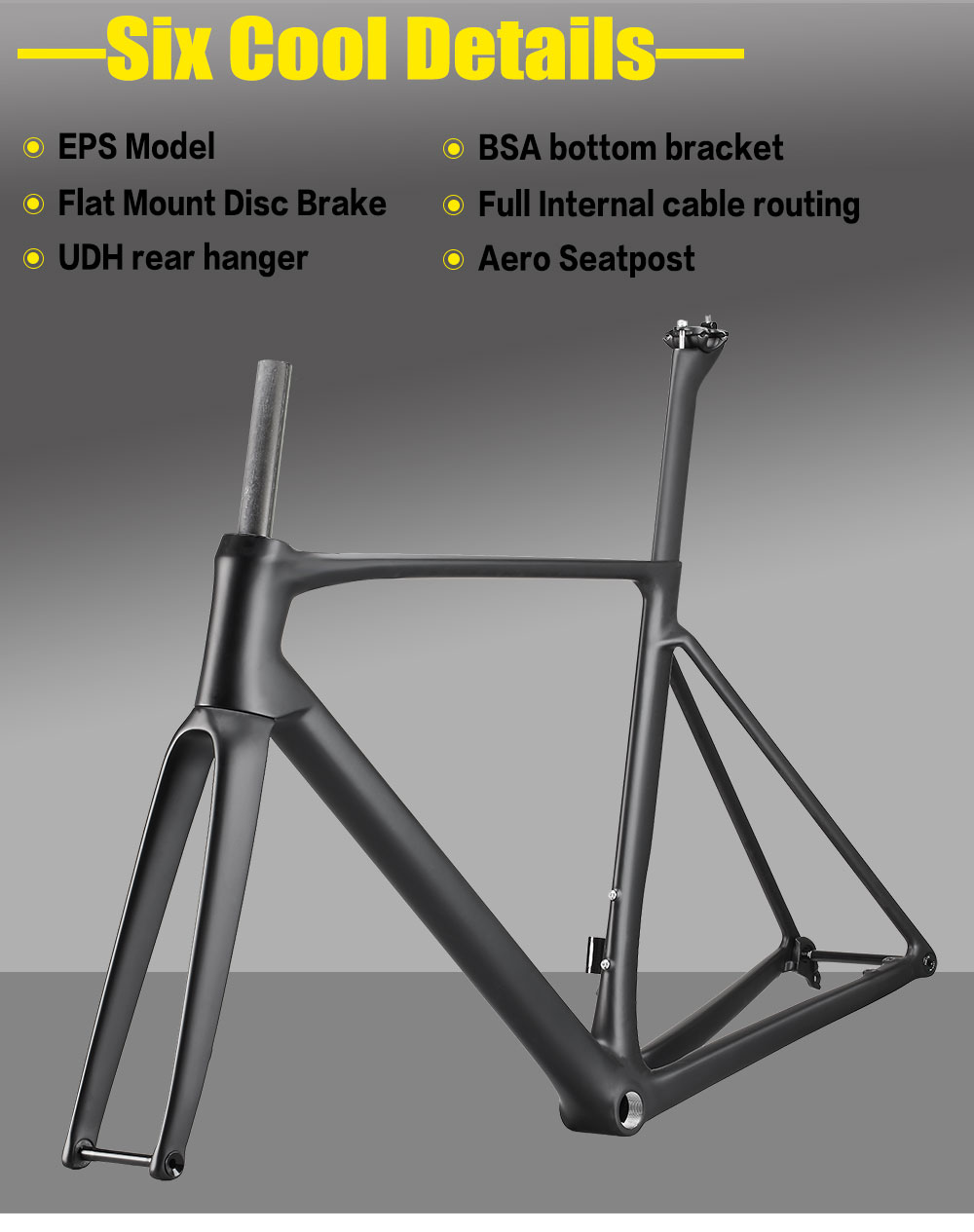

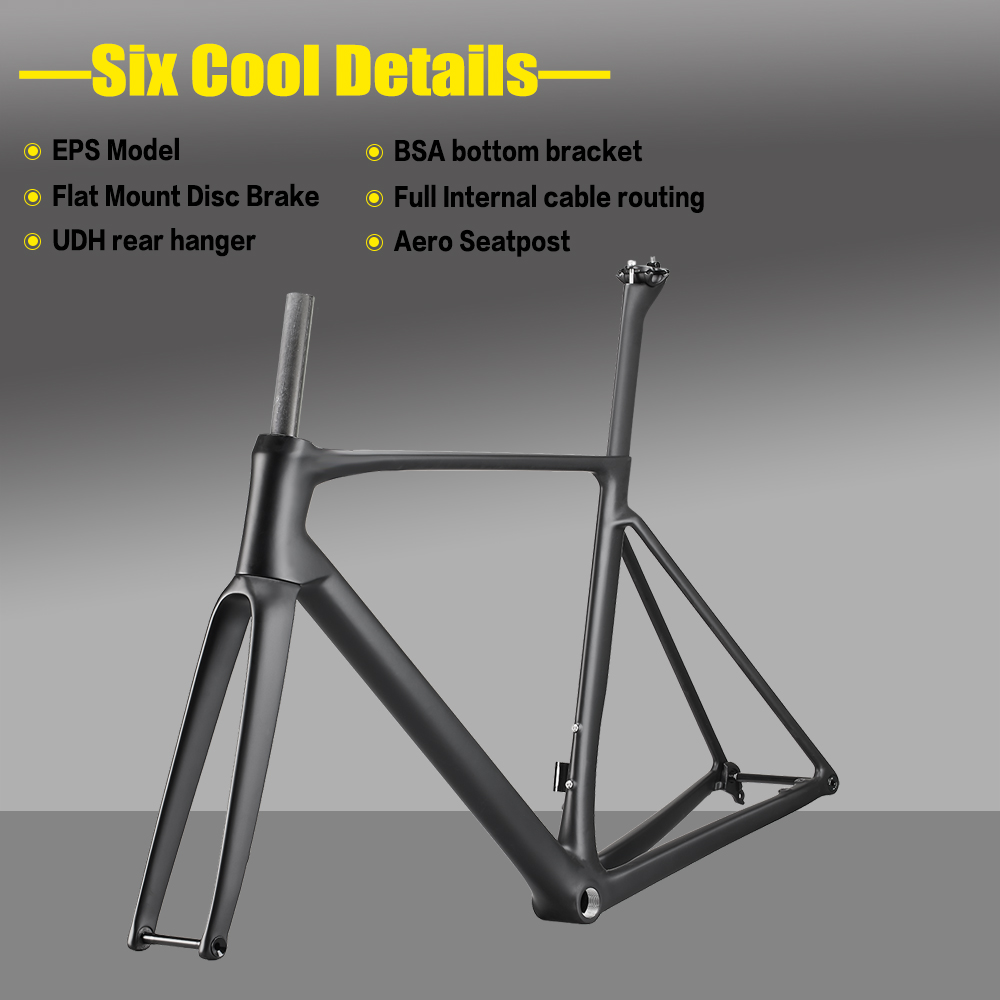

AIRWOLF YFR012 Aerodynamic Disc Road Frame Details:
Frame Material : T1200 Toray Carbon Fiber
Carbon Weave : UD

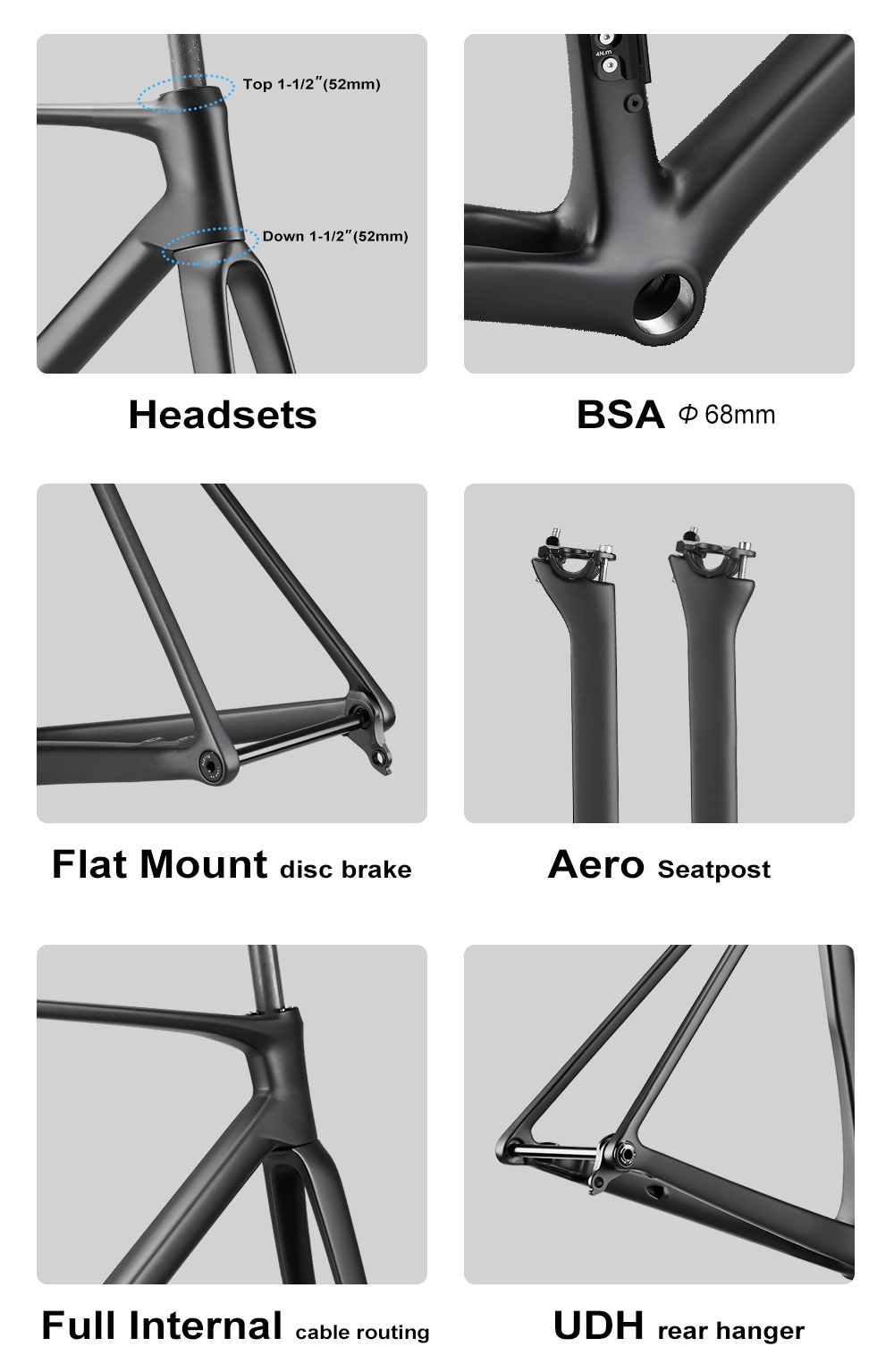

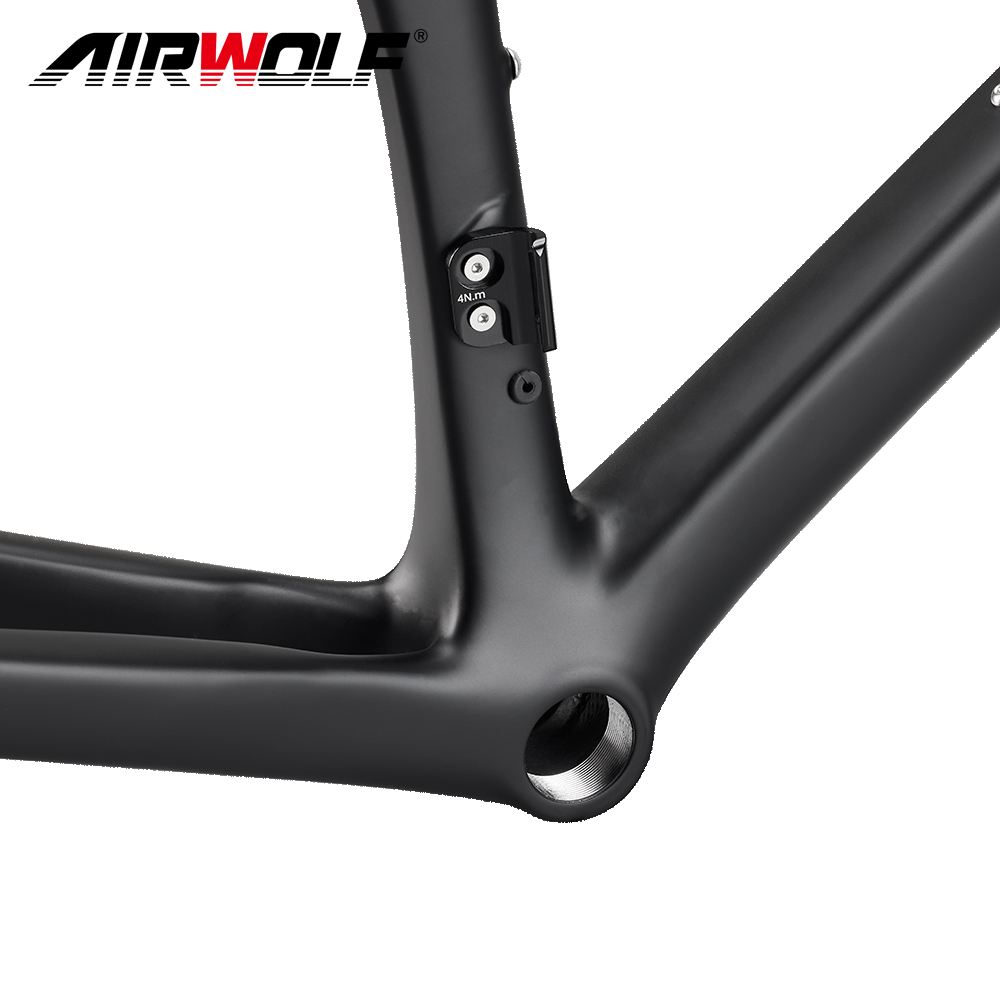

Bottom Bracket : BSA(BB68)
Finish : Matte or Glossy

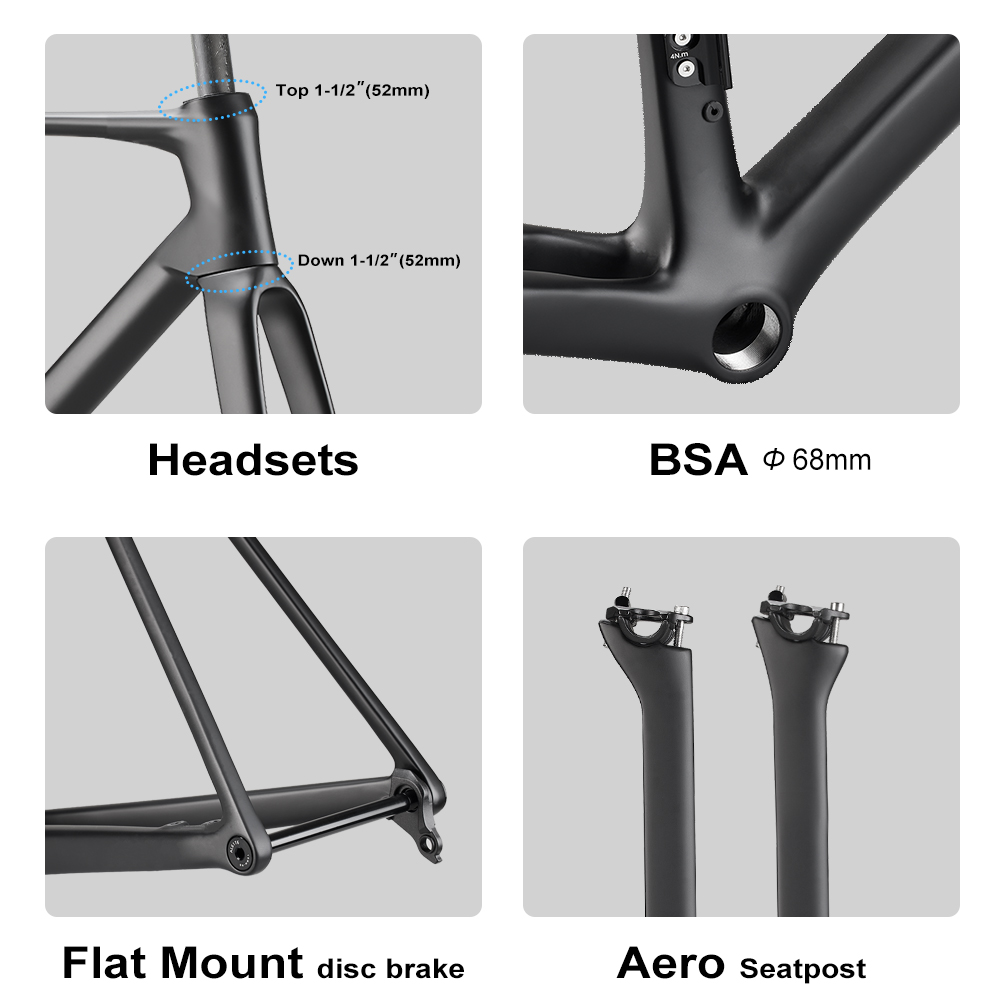

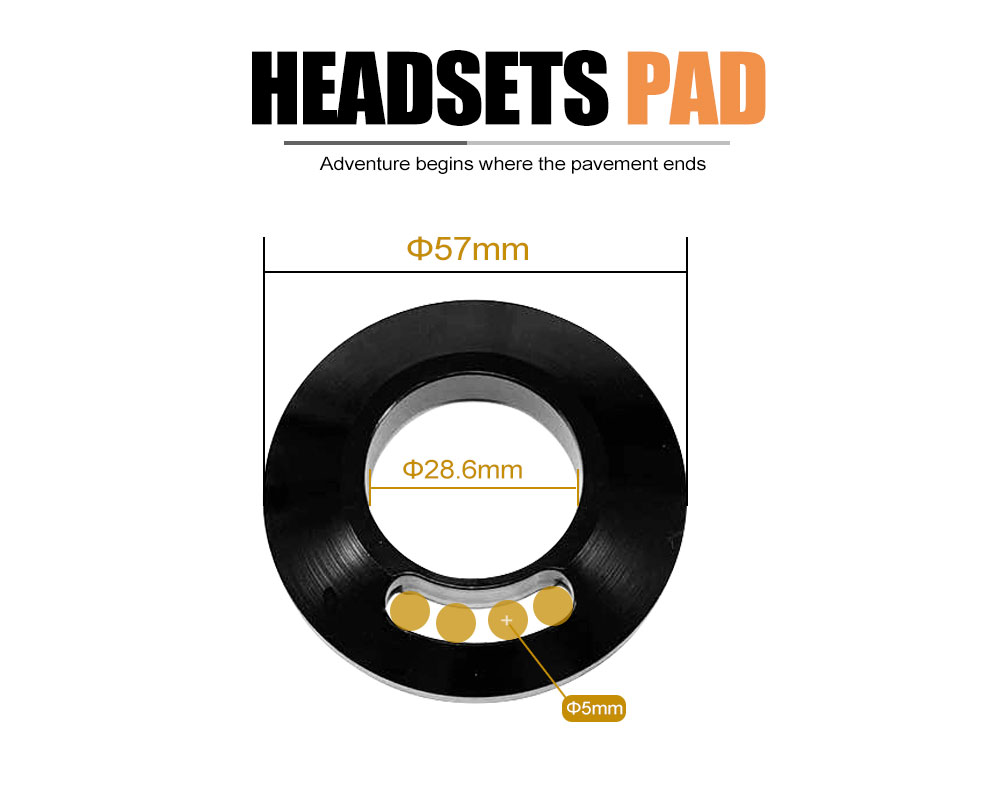

Headsets : 1-1/2″ to 1-1/2″
System : Aerodynamic

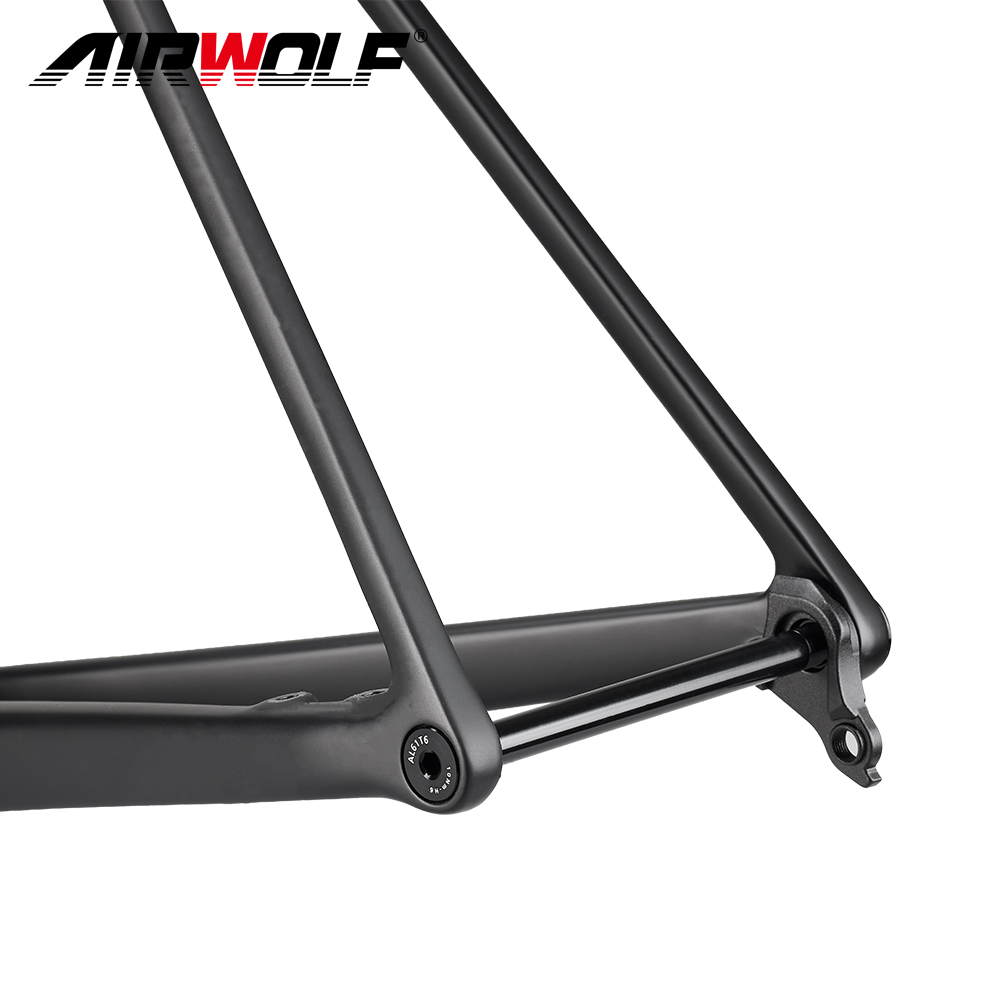

Thru Axle Size : Front 100*12mm , Rear 142*12mm

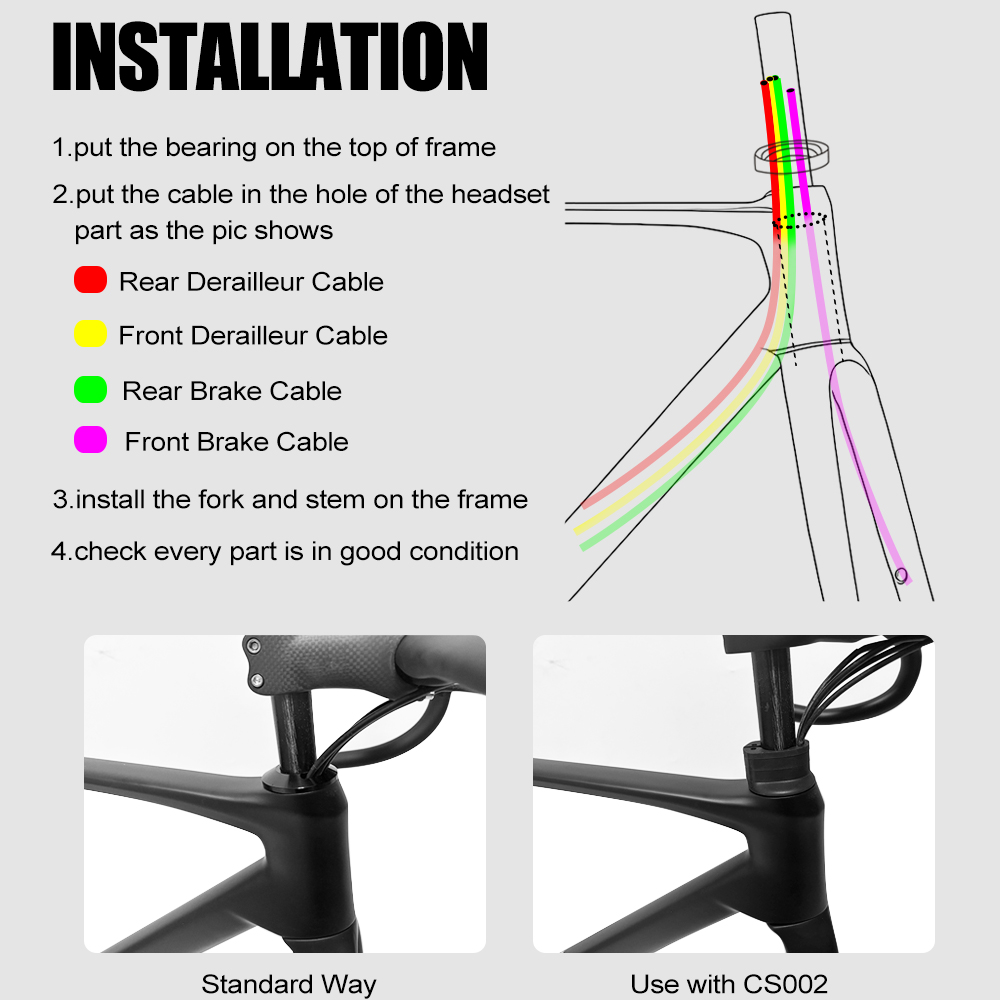

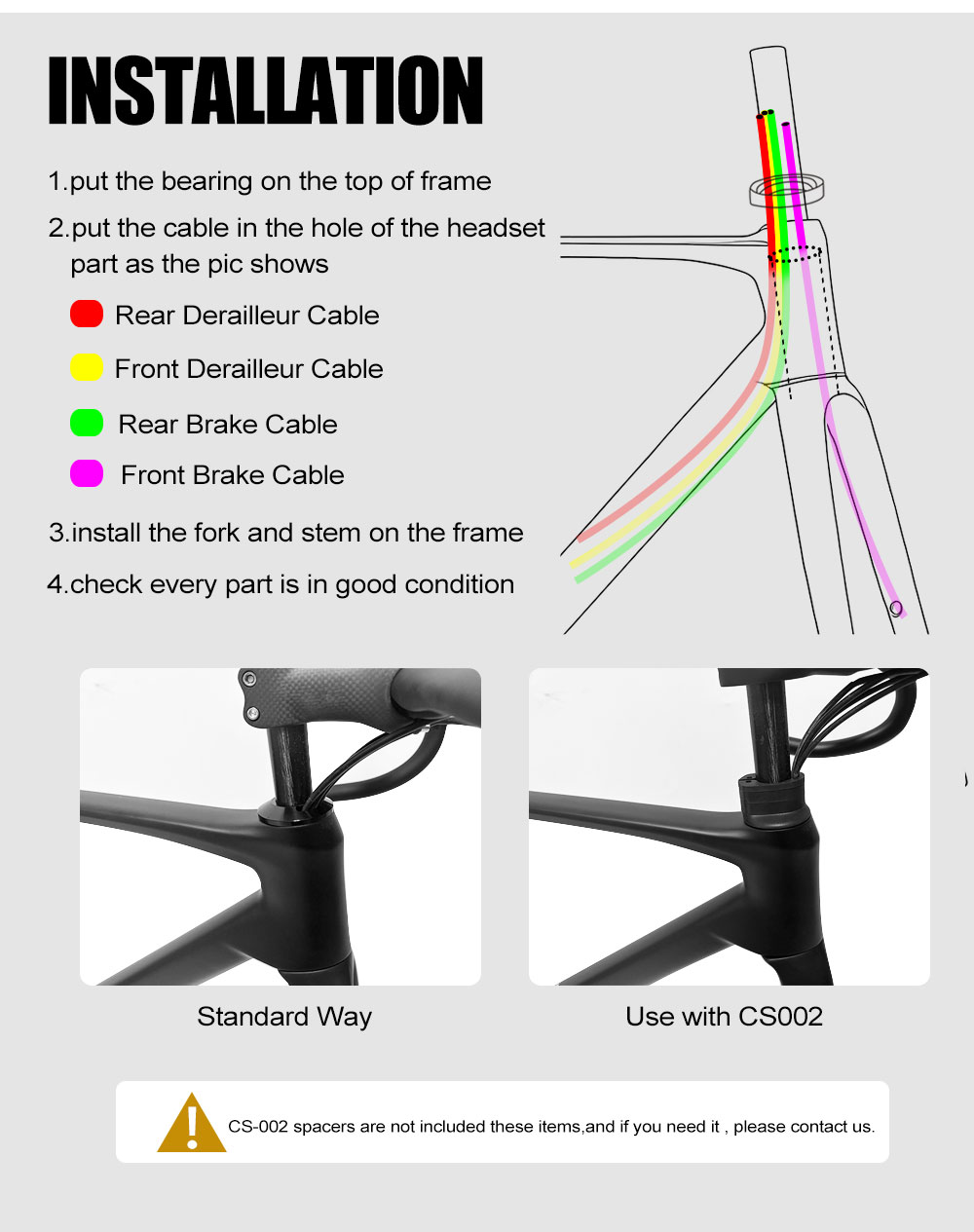

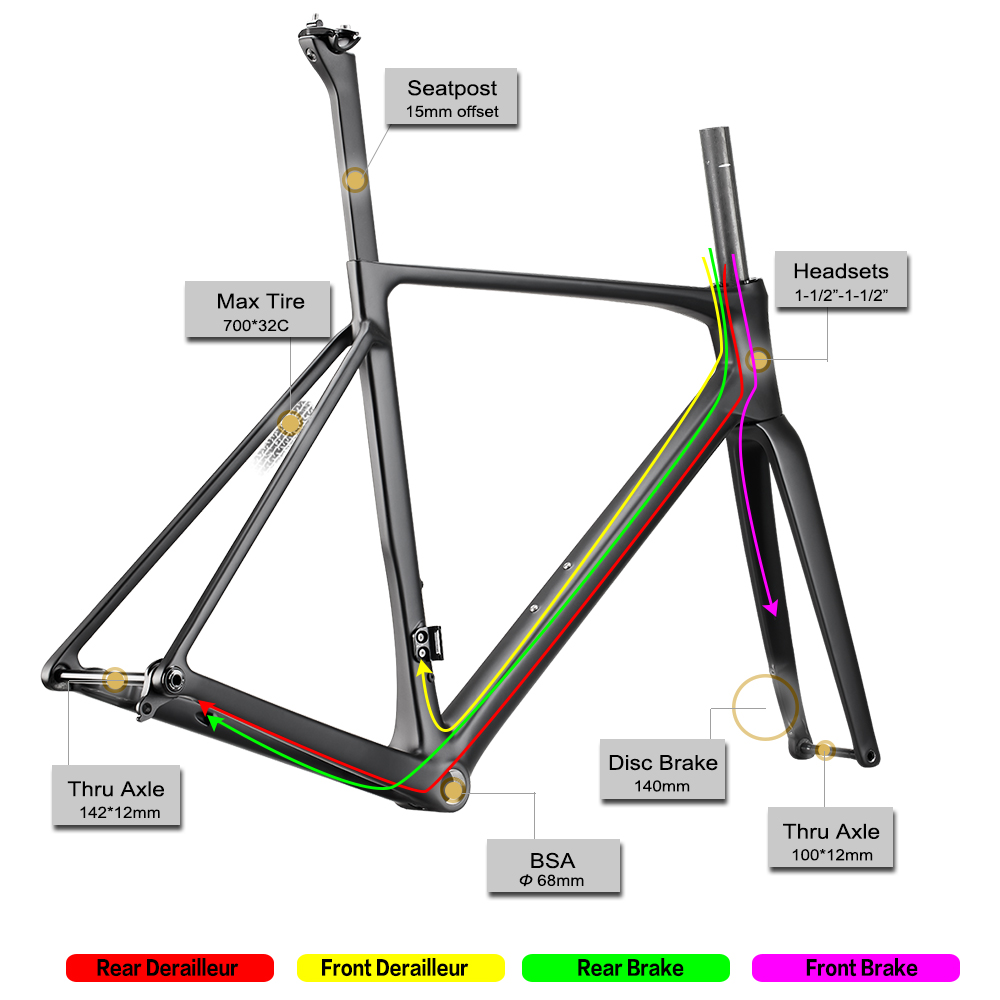

Cable Routing : Internal Cable Routing

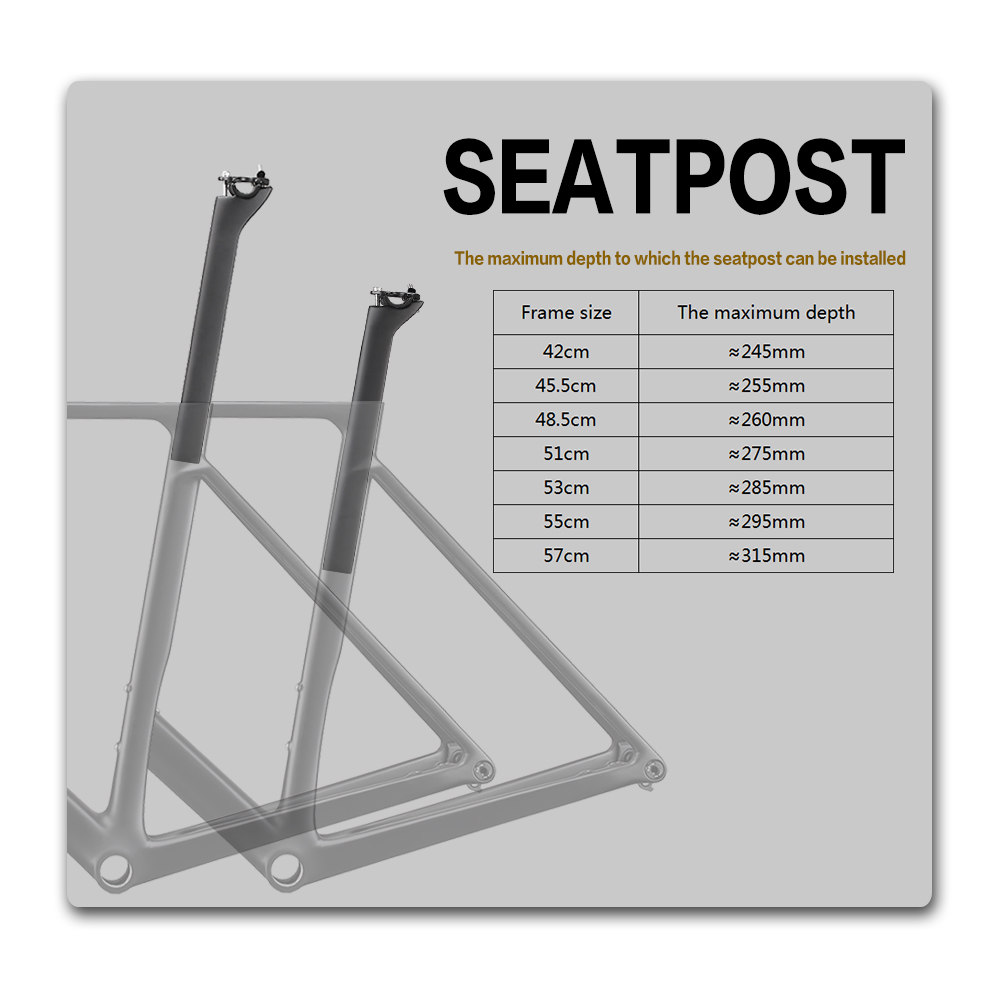

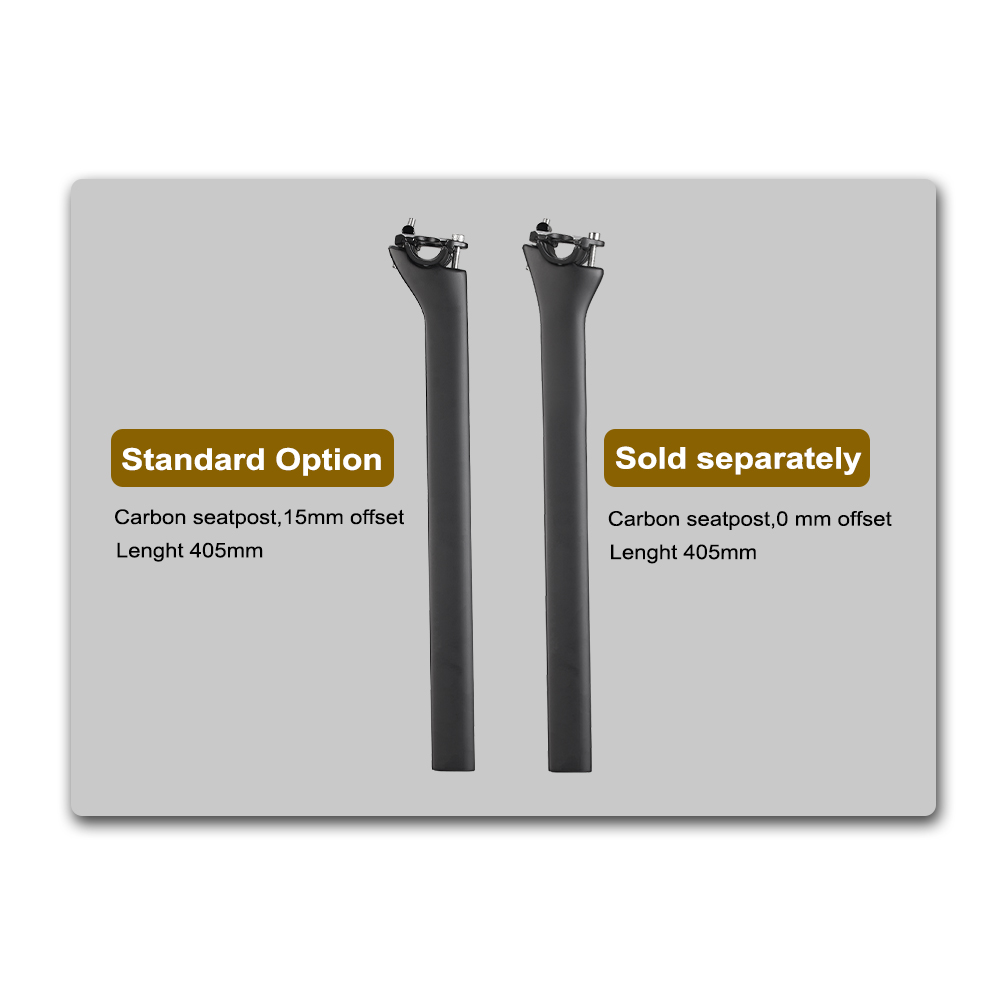

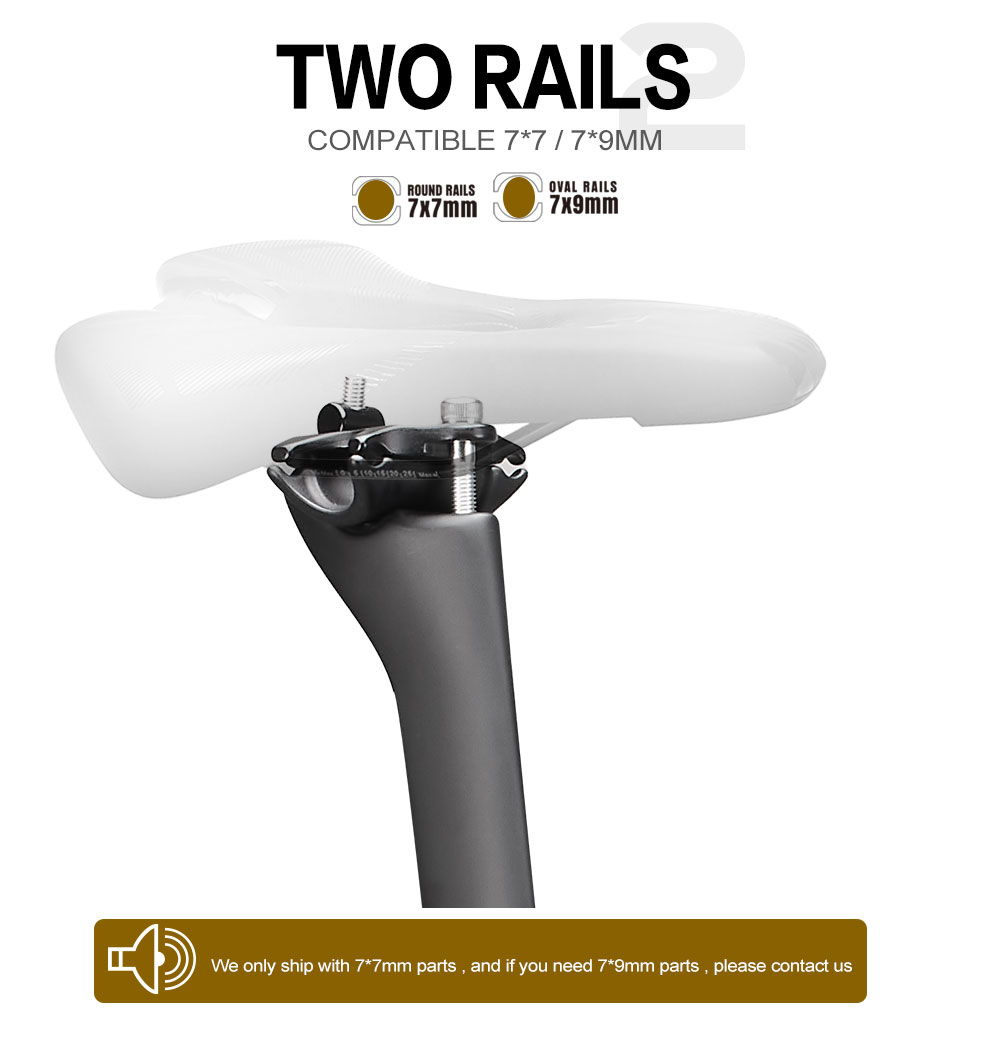

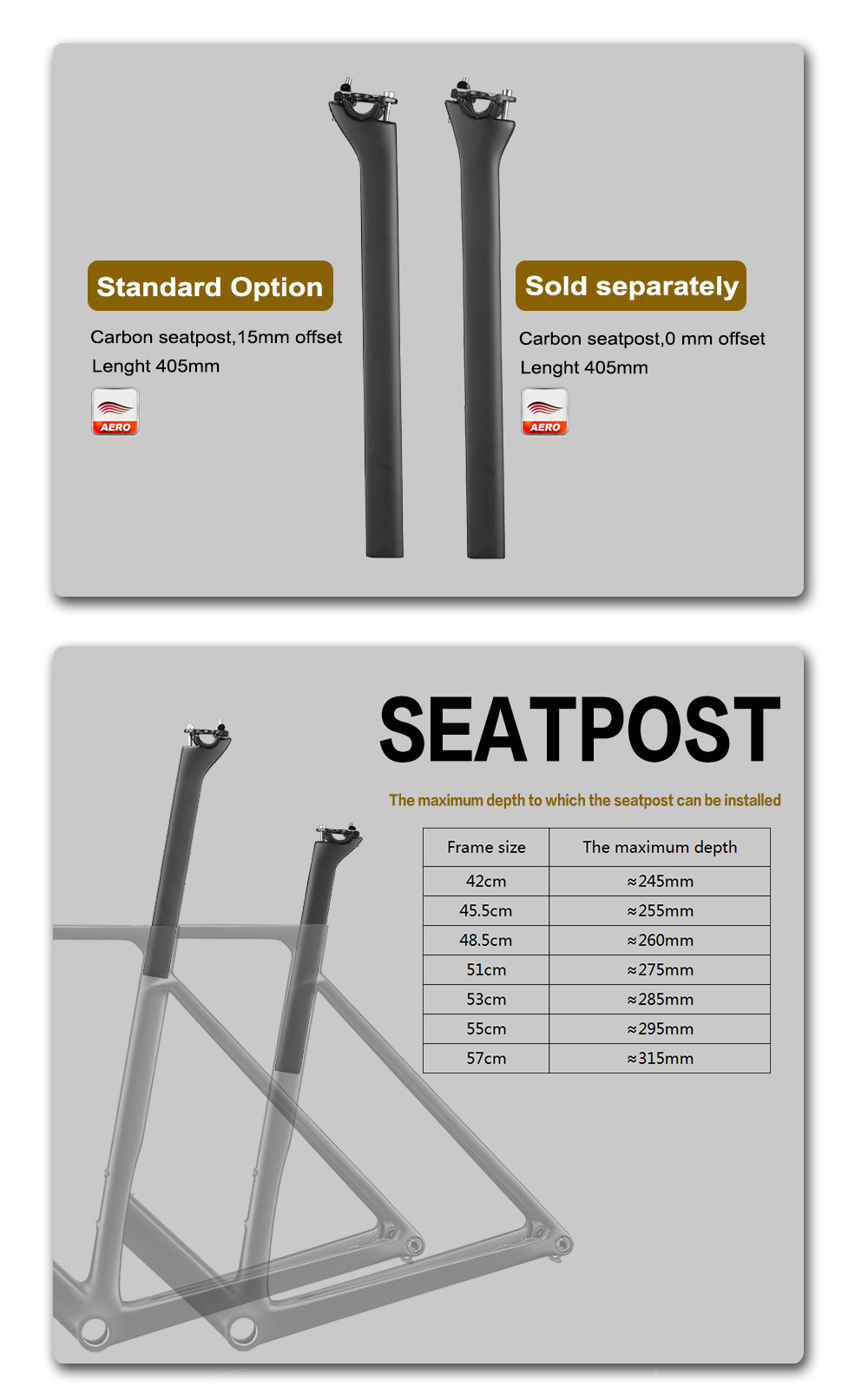

Seatpost : 15mm offset or 0 offset
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical

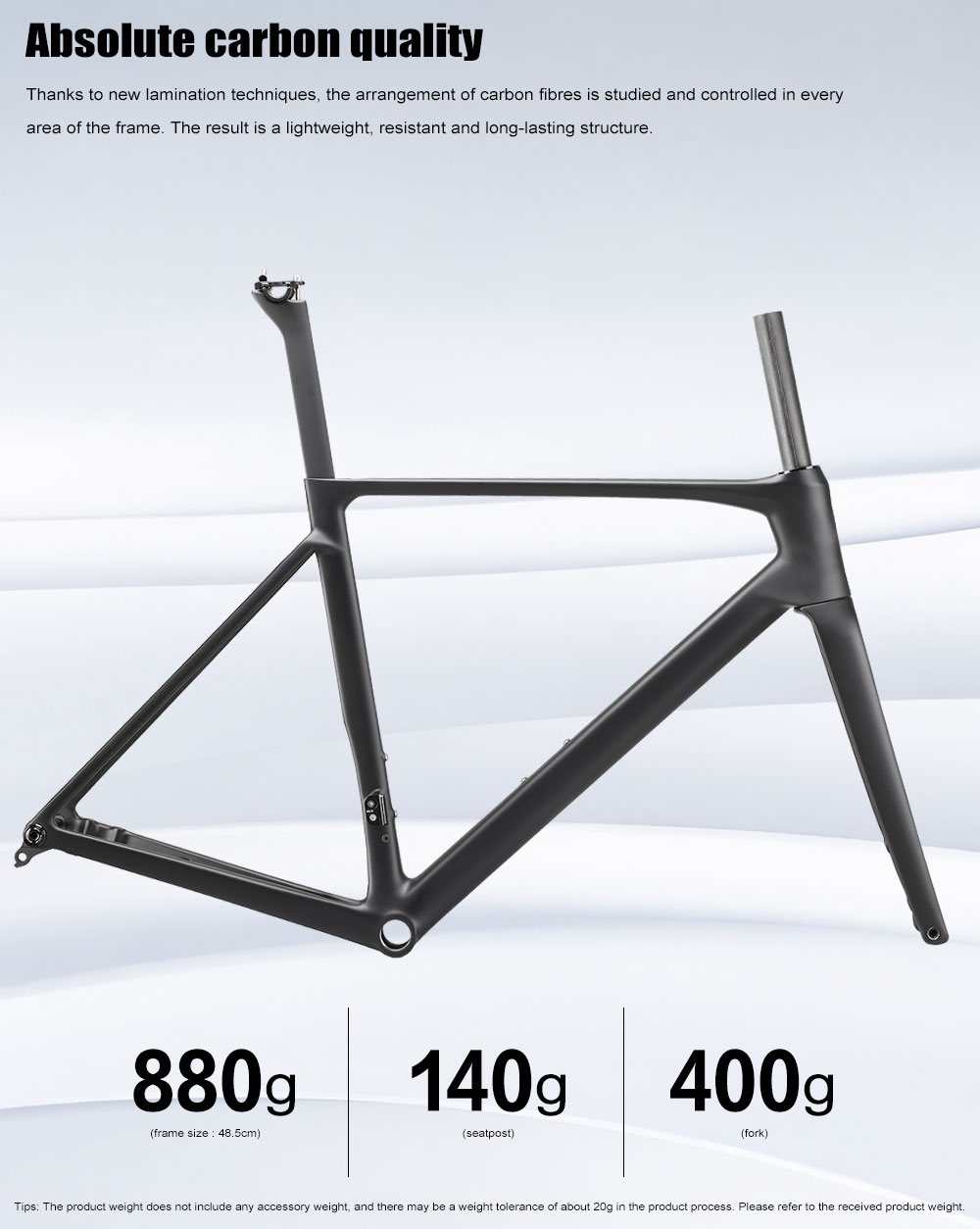

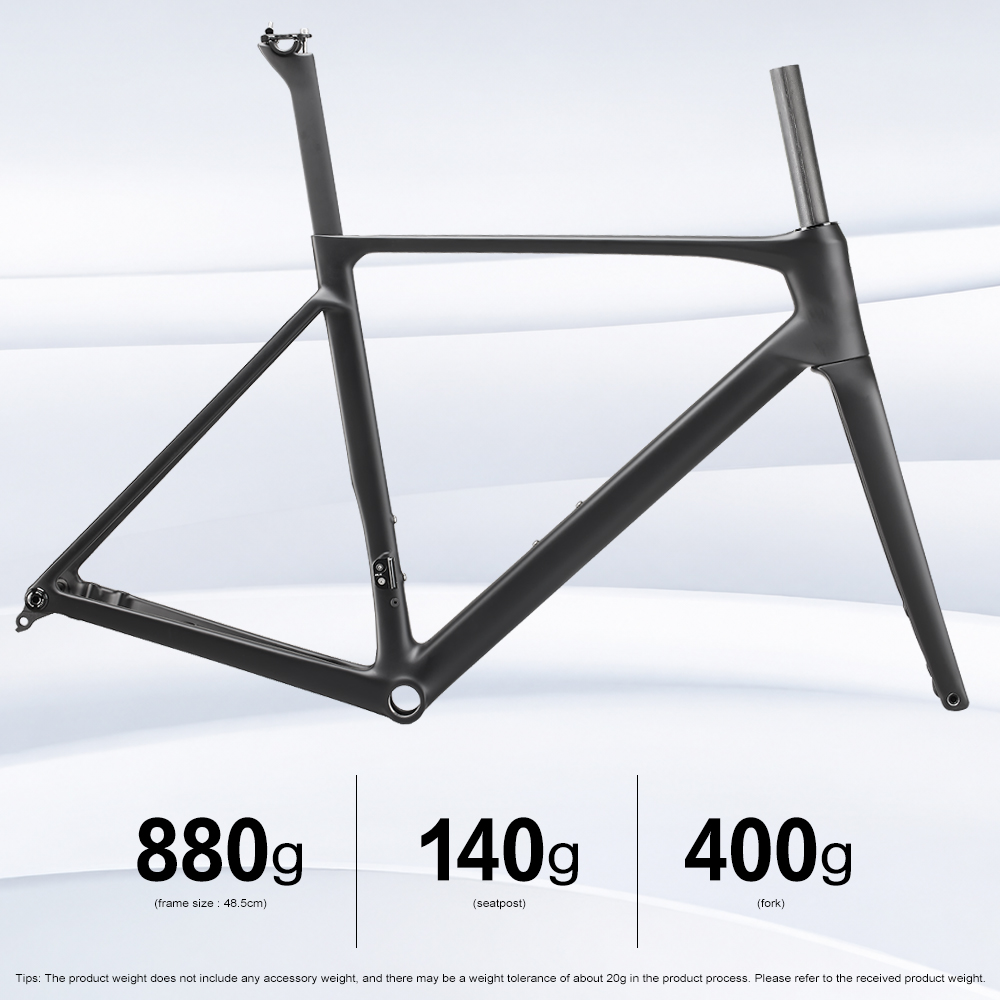

Weight : Frame 880g (size 48.5) , Fork 370g , Seatpost 130g

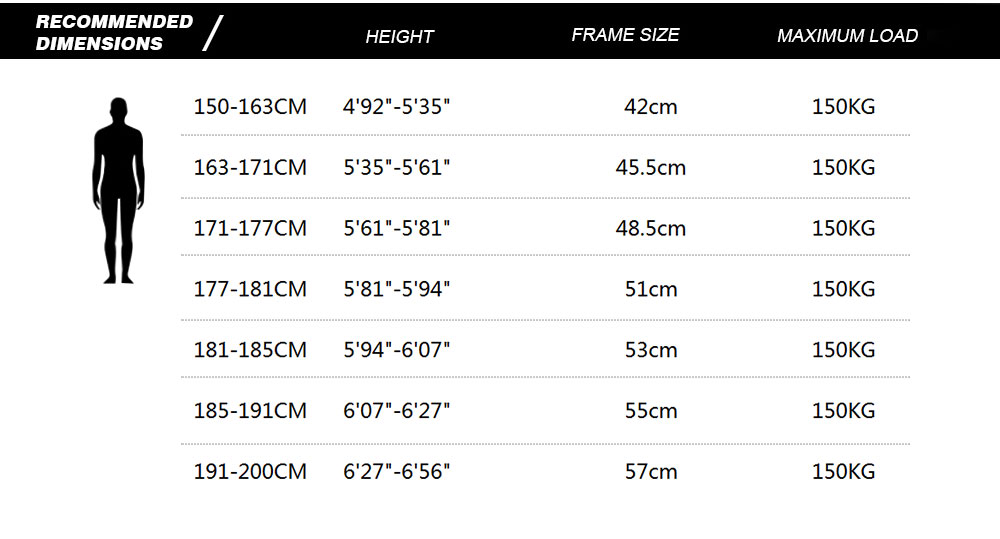

Frame Size : 42/45.5/48.5/51/53/55/57cm
Max Tire Size : 700*32C
Warranty : 2 Years

| 1.Brand Name:Airwolf
2.Frame Type:YFR045 Carbon Gravel Bike Frame
3.Frame Material:T1100 Toray Carbon Fiber
4.Bike Type:Cyclecross Gravel Bike
5.Carbon Weave:UD
6.Finish:Matte Or Glossy
7.Bottom Bracket:BB386 (46*86.5mm)
8.Headsets:Up 1-1/8'' Down 1-1/2''
9.Brake Type:Disc Brake
10.Disc Rotor Size:140/160mm
11.Fork Thru Axle:100*12mm
12.Frame Thru Axle:142*12mm
13.Cable Routing:Internal Cable Routing
14.Front Derailleur:Stationary Type
15.Suitable Derailleur:Di2 or Mechanical Dechaincal
16.Weight:Frame 1223g (Size:54cm),Fork 478g ,Seatpost 199g
17.Frame Size:49/52/54/56/58cm
18.Max Tire Size:700*45C
19.Warranty:2 Years
20.OEM Painting:Colors And logo
21.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum Parts
                            | 1.Brand Name:Airwolf
2.Frame Type:YFR068 Carbon Gravel Bike Frame
3.Frame Material:T1100 Toray Carbon Fiber
4.Bike Type:Cyclecross Gravel Bike
5.Carbon Weave:UD
6.Finish:Matte Or Glossy
7.Bottom Bracket:BB Right (46*79mm)
8.Headsets:49.5mm Down 49.5mm
9.Brake Type:Disc Brake
10.Disc Rotor Size:140/160mm
11.Fork Thru Axle:100*12mm
12.Frame Thru Axle:142*12mm
13.Cable Routing:Internal Cable Routing
14.Front Derailleur:Stationary Type
15.Suitable Derailleur:Di2 or Mechanical Dechaincal
16.Weight:Frame 1061g (Size:54cm),Fork 442g ,Seatpost 209g,Handlebar 249g(size 420mm),Stem 141g(Size 90mm)
17.Frame Size:48/51/54/56/58cm
18.Max Tire Size:700*40C
19.Warranty:2 Years
20.OEM Painting:Colors And logo
21.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum Parts

| TT Frame Material : T1100 Toray Carbon Fibre
Frame Type : Carbon TT Frame/Time Trial Frame/Triathlon Bike Frame
Frame Model : YFT058
Carbon Weave : UD
Bottom Bracket : BB386
Finish : Matte or Glossy
Headsets : 1-1/2"(52mm) to 1-1/2"(52mm)
System : Triathletes, time trialists, general speed demons
Thru Axle Size : Front 100*12mm,Rear 142*12mm
Cable Routing : Internal Cable Routing
Type : Carbon Triathlon Bike Frame
Apply To : Triathlon , paved roads
Seatpost : Framed Specific , 0°seat angle,lengt 390mm
Front Derailleur : Stationary type
Suitable Derailleur : Di2 or Mechanical
Brake Type : Disc Brake
Battery : Inside the seatpost
Weight : Frame 1300g (size M) , Fork 375g , Seatpost 275g ,Stem 395g , TT Bar 559g(size 420mm)
Frame Size : S/M/L
Stem Size : 110mm
TT bar size : 400/420/440mm
Max Tire Size : 700*28C
Frameset Include : Frame , Fork , Seatpost ,Stem ,TT Bar , Headsets ,Seatpost Clamp , BB transfer ,Thru Axle Rod , Aluminum parts
Warranty : 2 Years

| YFR069/YFR072 Carbon Road Frame 700*28C Cheap Price And High Quality Road Bike Frame Disc Braeks and Rim Brakes Also Available Road Bicycle Frame
YFR069 Carbon Road Frame Descriptions:
1>Material:T1100 Carbon Fiber,
2>Carbon Weave:UD,
3>Bottom Bracket:BB386
4>Available Size:46/48/50/52/54cm
5>Fork:100*9mm,Frame:130*9mm
6>Max Tires:700*28C
7>Including:Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer

YFR069 Carbon Road Frame Descriptions:
1>Material:T1100 Carbon Fiber,
2>Carbon Weave:UD,
3>Bottom Bracket:BB386
4>Available Size:46/48/50/52/54cm
5>Fork:100*12mm,Frame:142*12mm
6>Max Tires:700*28C
7>Including:Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer

| 1.Brand Name:Airwolf
2.Frame Type:SLR Gen7 frame
3.Frame Material:T1100 Toray Carbon Fiber
4.Bike Type:Carbon Road Bike Frame
5.Carbon Weave:UD
6.Finish:Matte Or Glossy
7.Bottom Bracket:T47
8.Headsets:Up 1-1/2'' Down 1-1/2''
9.Brake Type:Disc Brake
10.Disc Rotor Size:140/160mm
11.Fork Thru Axle:100*12mm
12.Frame Thru Axle:142*12mm
13.Cable Routing:Internal Cable Routing
14.Front Derailleur:Stationary Type
15.Suitable Derailleur:Di2 or Mechanical Dechaincal
16.Frame Size:47/50/52/54/56/58cm
18.Handlebar With:400/420/440mm
19.Stem Lenght:90/100/110/120mm
20.Max Tire Size:700*28C
21.Warranty:3 Years
22.OEM Painting:Colors And logo
23.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum Parts
    |
| Additional information |
| Frame Size |
42cm, 45.5cm, 48.5cm, 51cm, 53cm, 55cm, 57cm
|
| Handlebar Size |
370*70mm, 370*80mm, 370*90mm, 370*100mm, 370*110mm, 370*120mm, 390*70mm, 390*80mm, 390*90mm, 390*100mm, 390*110mm, 390*120mm, 410*70mm, 410*80mm, 410*90mm, 410*100mm, 410*110mm, 410*120mm, 430*70mm, 430*80mm, 430*90mm, 430*100mm, 430*110mm, 430*120mm
|
| Finished |
Matte, Glossy
|
| Colors |
Black, Dark Gray, Light Gray, White, Dark Blue, Light Blue, Yellow, Red, Orange, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple, Metallic Rose Red, Ice Crystal Green, Ice Crystal Dark Blue, Ice Crystal Orange, Ice Crystal Light Blue, Ice Crystal Gold, Ice Crystal Red, Ice Crystal Purple, Ice Crystal Pink, Ice Crystal Gray, Chameleon Colors
|
|
| Frame Size |
49CM, 52CM, 54CM, 56CM, 58CM
|
| Color |
Black, Blue and Orange, Dark Blue, Red, Grass Green, Yellow, Green, Light Blue, Grey, Metallic Red And Black, Metallic Green And Black, Metallic Dark Blue And Black, Metallic Orange And Black, Metallic Gold And Black, Metallic Indigo Blue And Black, Metallic Rose Red And Black, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple, Metallic Rose Red, Chameleon, Ice Crystal Green, Ice Crystal Dark Blue, Ice Crystal Light Blue, Ice Crystal Gold, Ice Crystal Red, Ice Crystal Purple, Ice Crystal Pink, Ice Crystal Gray
|
| Finished |
Matte, Glossy
|
|
| Frame Size |
48cm, 51cm, 54cm, 56cm, 58cm
|
| Handlebar Size |
400mm, 420mm, 440mm
|
| Stem Size |
90mm, 100mm, 110mm, 120mm
|
| Color |
Pearl White
|
| Finished |
Matte, Glossy
|
|
| Frame Size |
S(51cm), M(54cm), L(57cm)
|
| Handlebar Size |
400mm, 420mm, 440mm
|
| Stem Size |
110mm
|
| Color |
All Black, Pearl White
|
| Finished |
Matte, Glossy
|
|
| Weight |
4.5 kg |
| Frame Size |
46cm, 48cm, 50cm, 52cm, 54cm
|
| Finished |
Matte, Glossy
|
| Brake Style |
V Brake, Disc Brake
|
| Color |
Black, Grey, Red, White, Pink, Navy Blue, Light Blue, Orange, Green, Yellow, Blue, Rose Red, Transprency Red, Transprency Dark Green, Transprency Green, Transprency Blue, Transprency Orange, Transprency Gold, Transprency Deep Green, Transprency Deep Purple, Transprency Light Purple, Chameleon 01, Chameleon 02, Chameleon 03, Chameleon 04, Chameleon 05, Chameleon 06, Chameleon 07, Chameleon 08, Chameleon 09, Chameleon 10, Chameleon 11, Chameleon 14
|
|
| Frame Size |
47CM, 50CM, 52CM, 54CM, 56CM, 58CM
|
| Handlebar Size |
400*90mm, 400*100mm, 400*110mm, 400*120mm, 420*90mm, 420*100mm, 420*110mm, 420*120mm, 440*90mm, 440*100mm, 440*120mm, 440*120mm
|
| Finished |
Matte, Glossy
|
| Color |
All Black, Blue And Black 1, Blue and Yellow, Blue And Black 2, Chameleon, Deep Blue, Green, Grey And Black, Grey, Orange, Purple and red, Red And Blue, Red Black, Transparent Blue, Transparent Red and Black, Transparent Red, White Black, White, Yellow
|
|
