| Description | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172

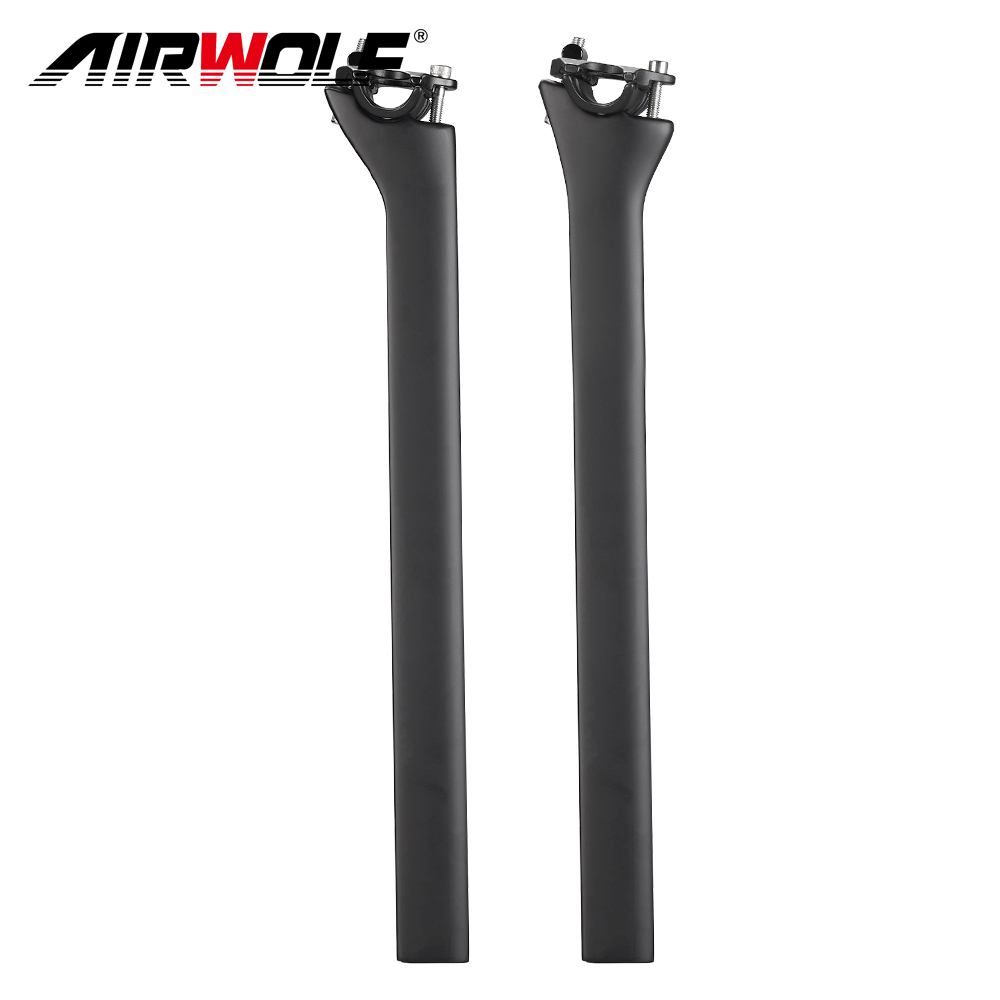

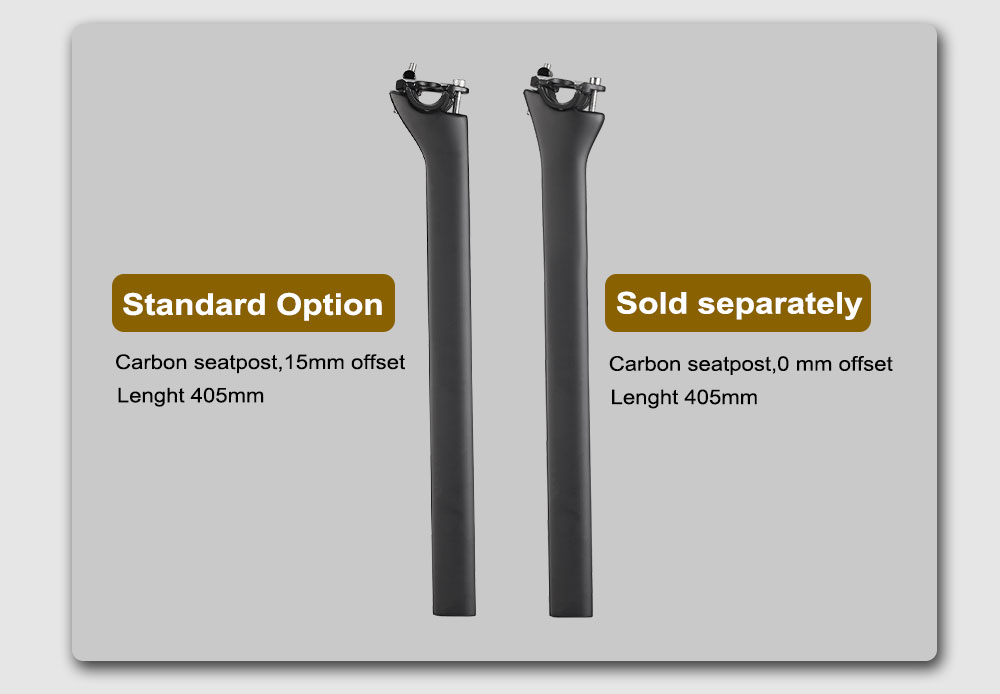

Seatpost Standard Option : 15mm offset
Seatpost Sold separately : 0mm offset | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
This price is not include the original logo. If you need one with the logo, please contact us ! | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
The price is frame with logo , if you need more picures , please contact us !
This frame is come with offset 25mm seatpost ,and if you need 0 degree seatpost , please leave the message. | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172 | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
For this frame set,we can do A5 logo for the frame,If you need more pictures , please contact us .

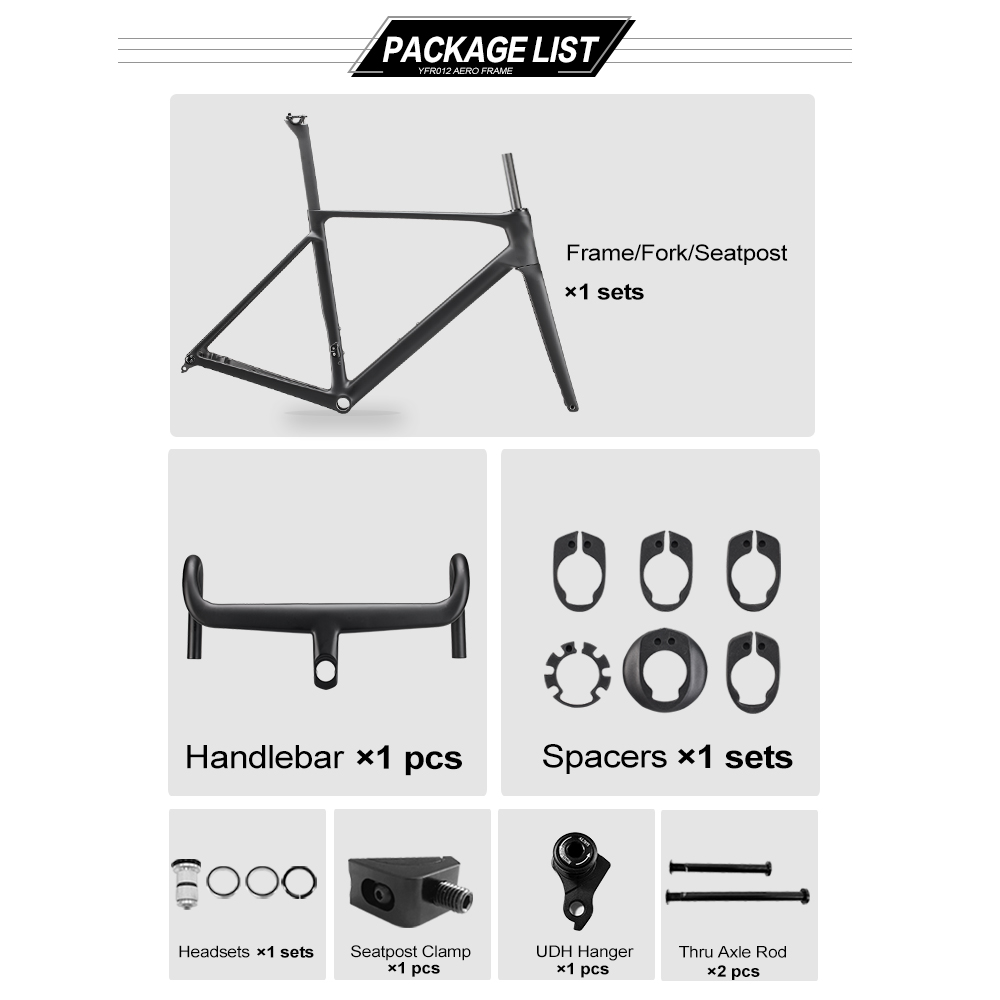

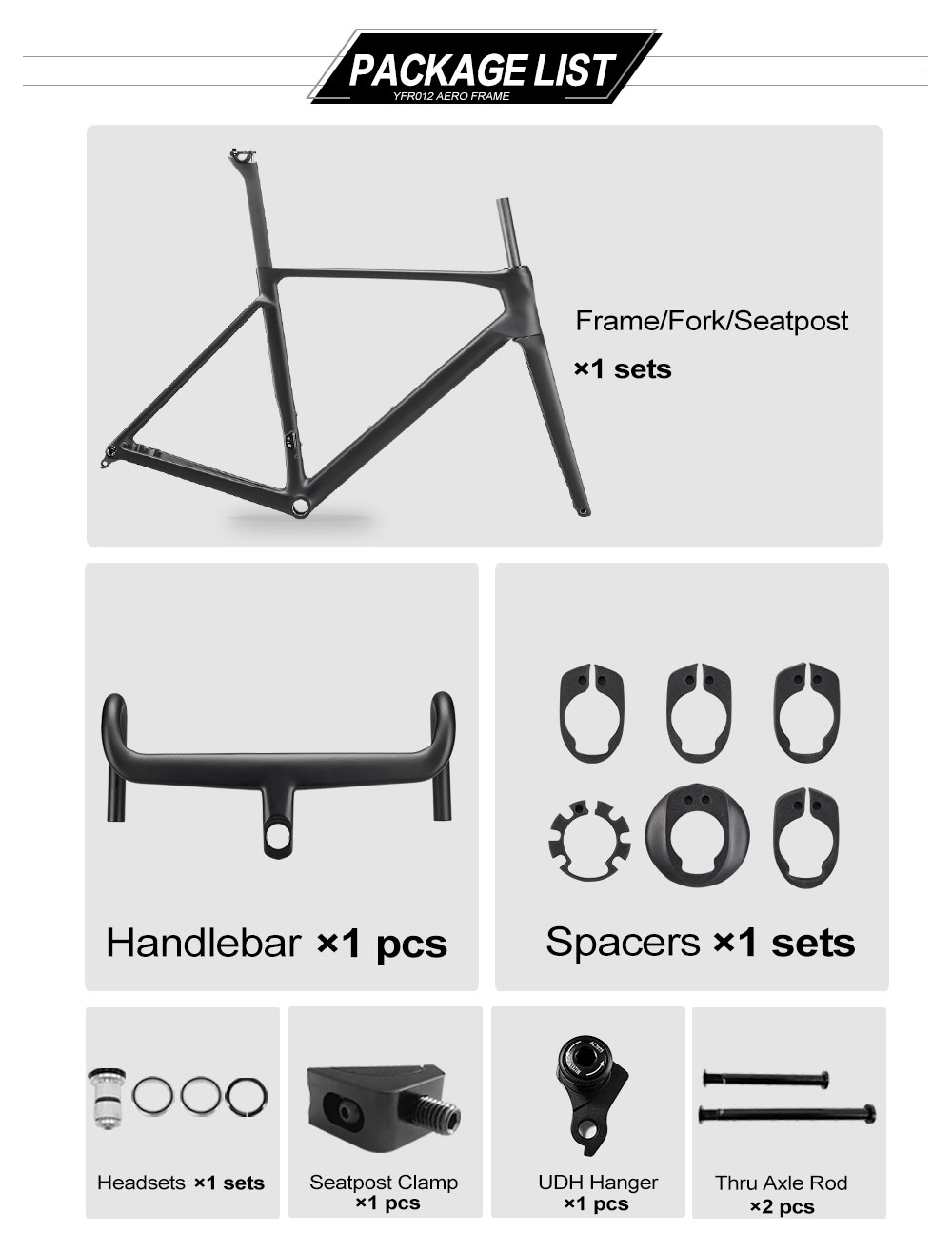

For the order,it included frame,fork,seatpost,handlebar,stem,clamp,BB transfer,Headsets,hangers,thru axle. | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
For this frame set,we can do logo for the frame,If you want to do the logo,please contact us
For the order,it included frame,fork,seatpost,handlebar,stem,clamp,BB transfer,Headsets,hangers,thru axle.
To Europe,we use the DPD shipping method to ship the goods,you don't need to worry about the custom problem,goods directly arrive at your home,and you don't need to deal with custom and also don't have custom problem.
To USA,we use the UPS or Fedex to ship the goods,after ship the goods,about 7-10days,good can arrive at you |

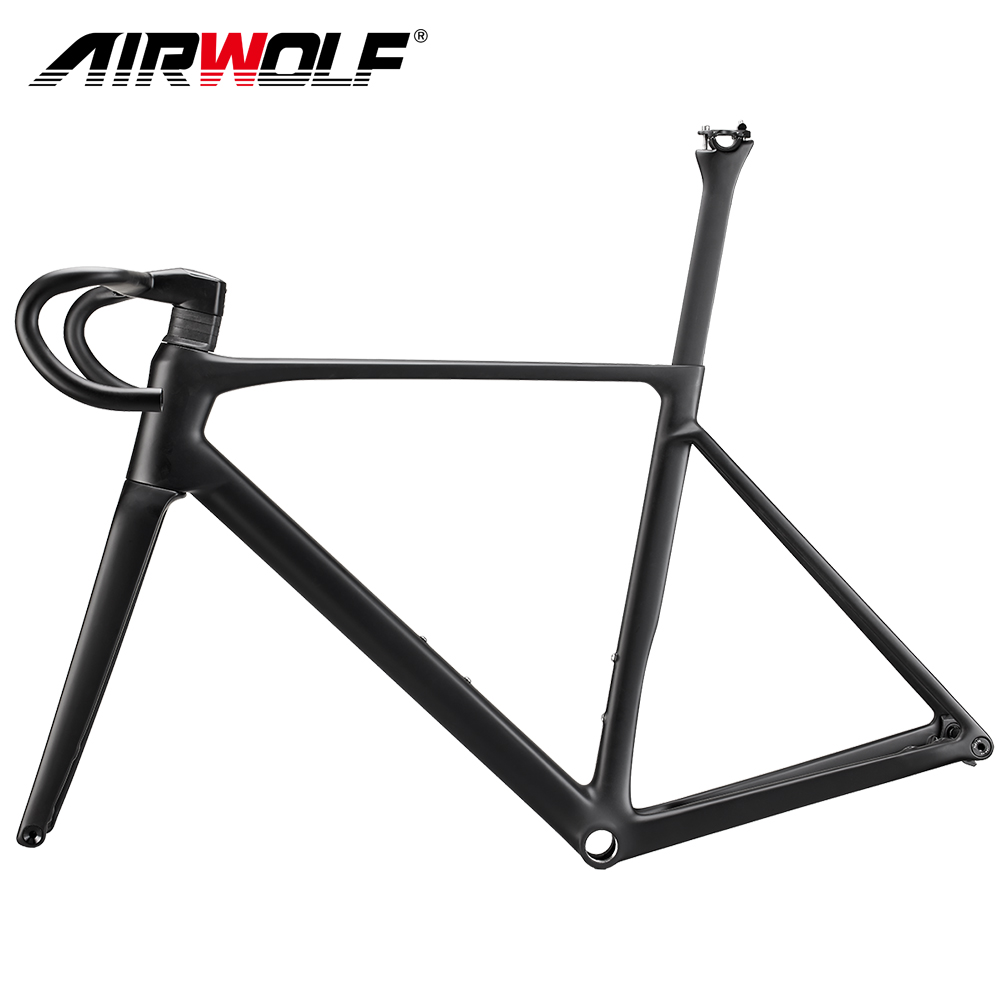

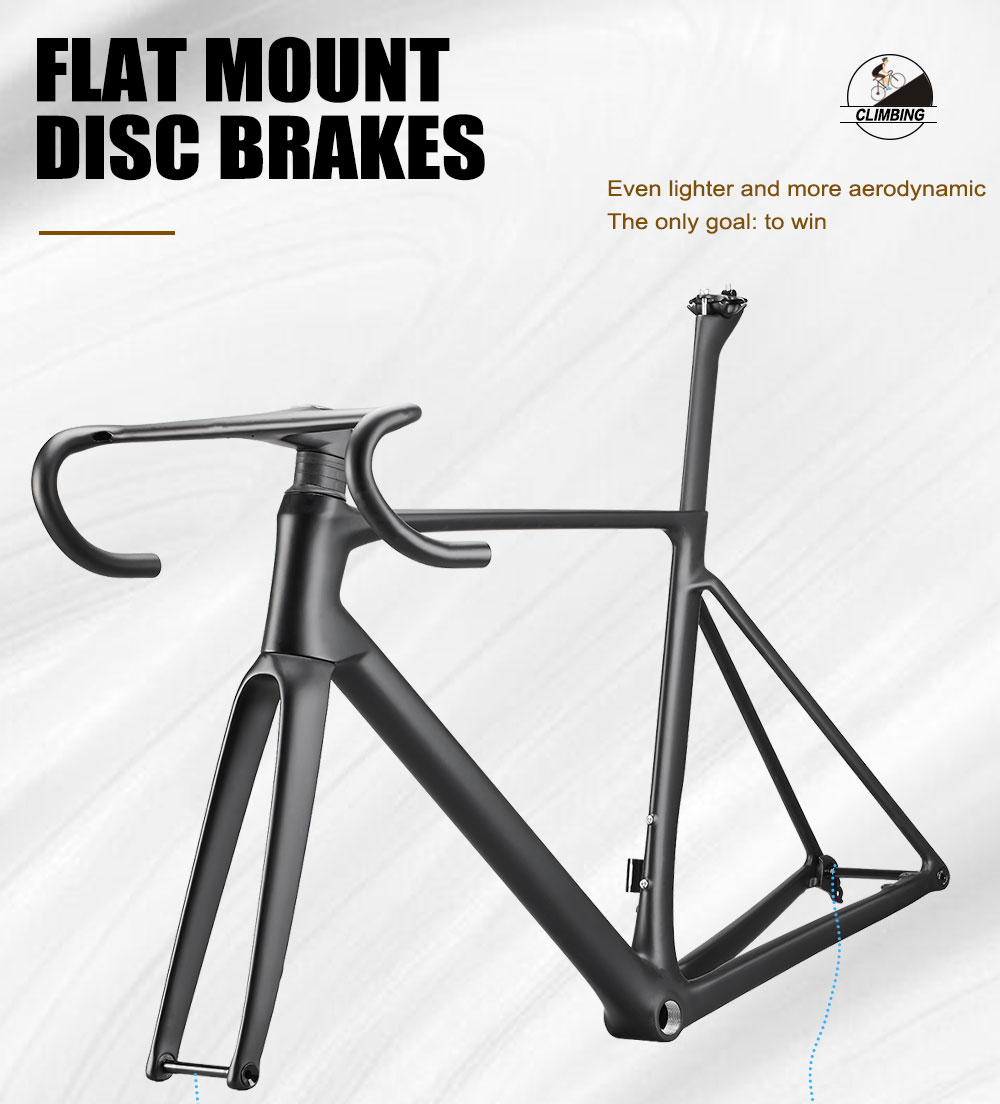

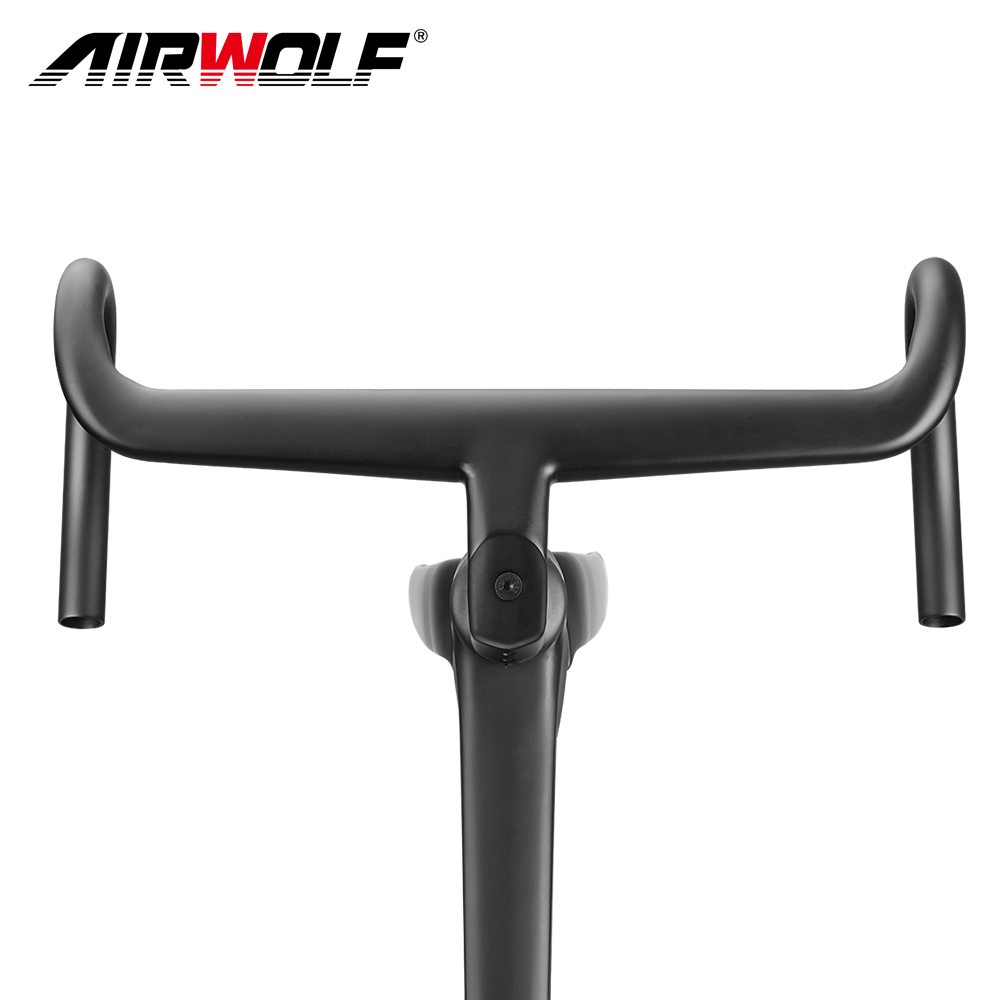

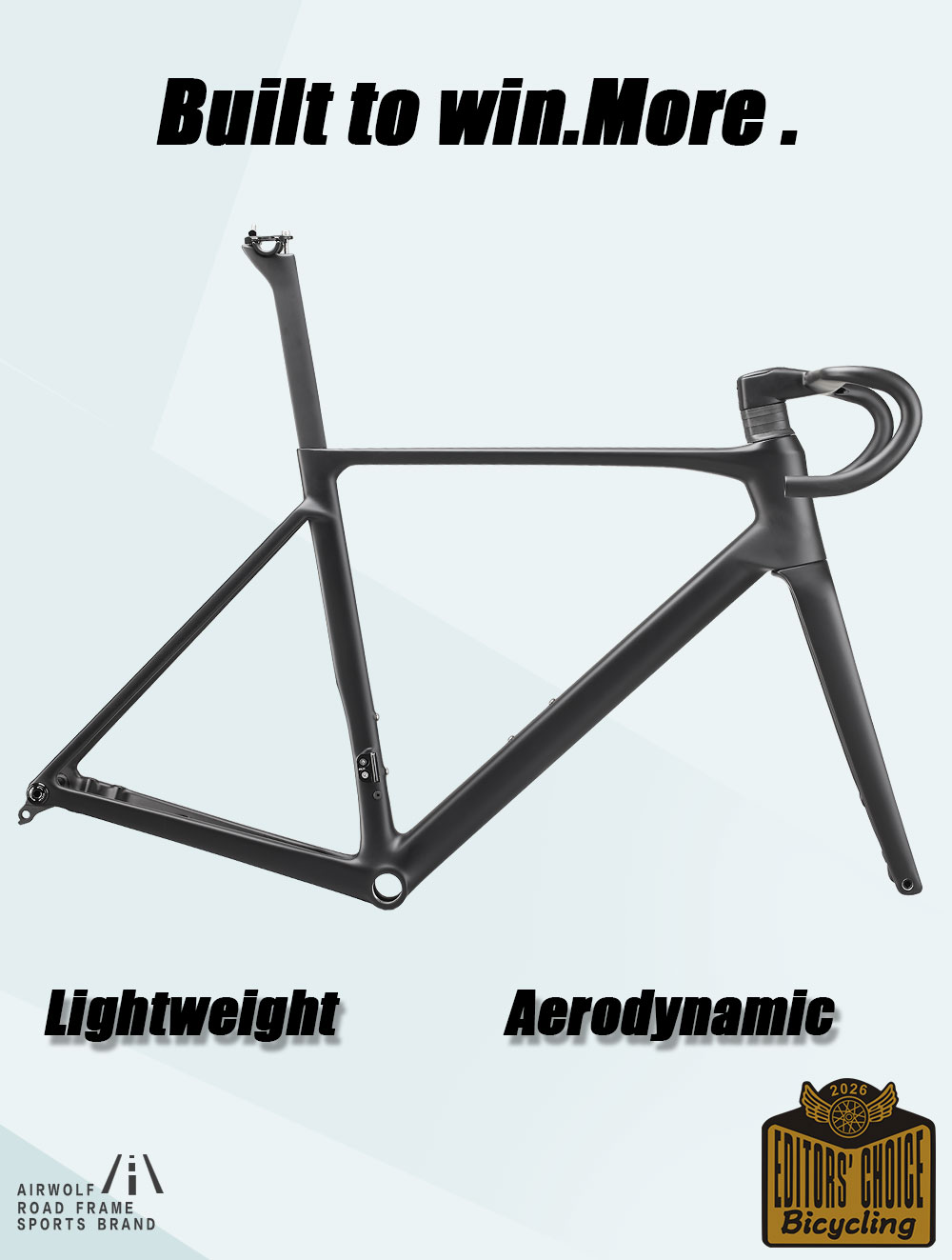

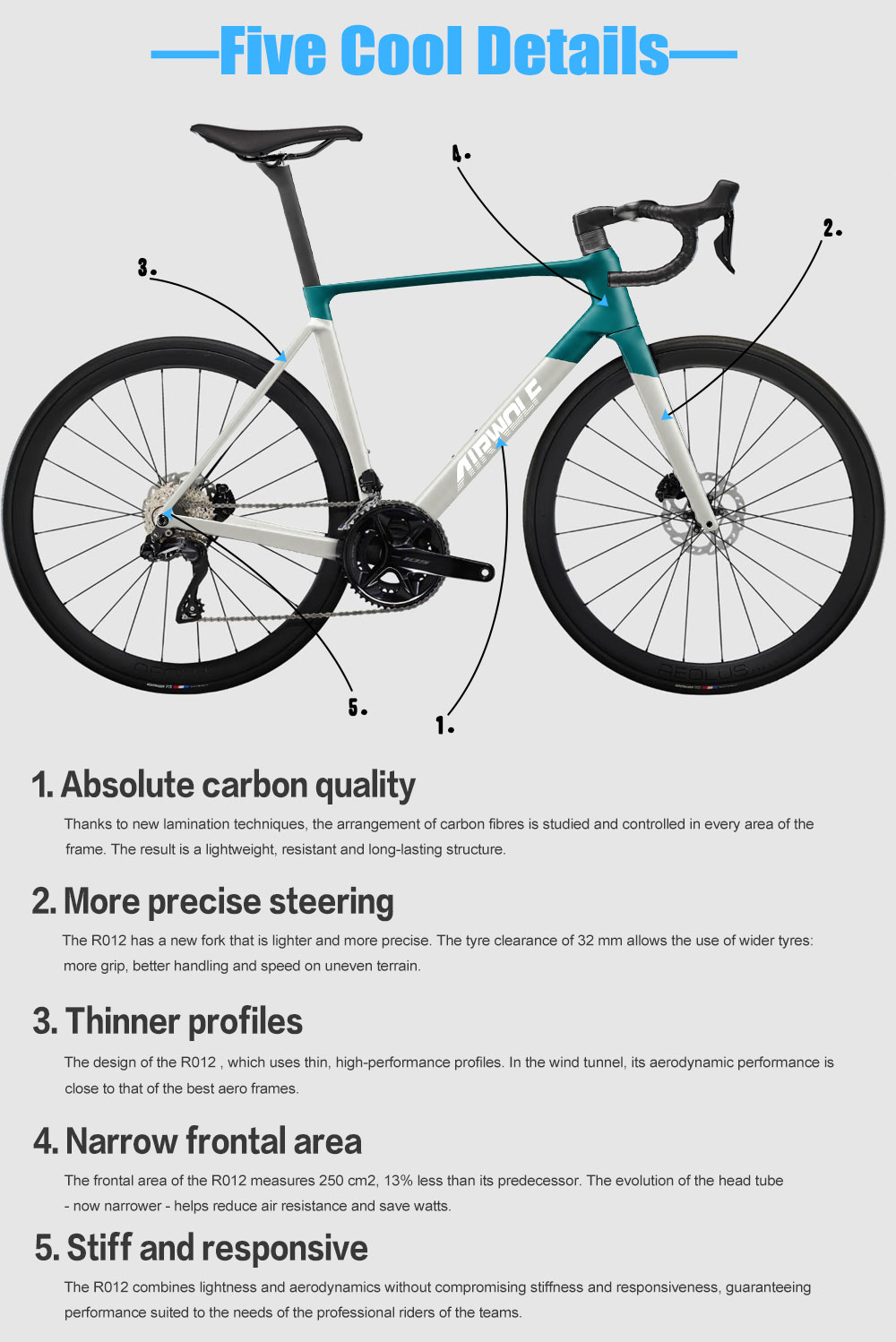

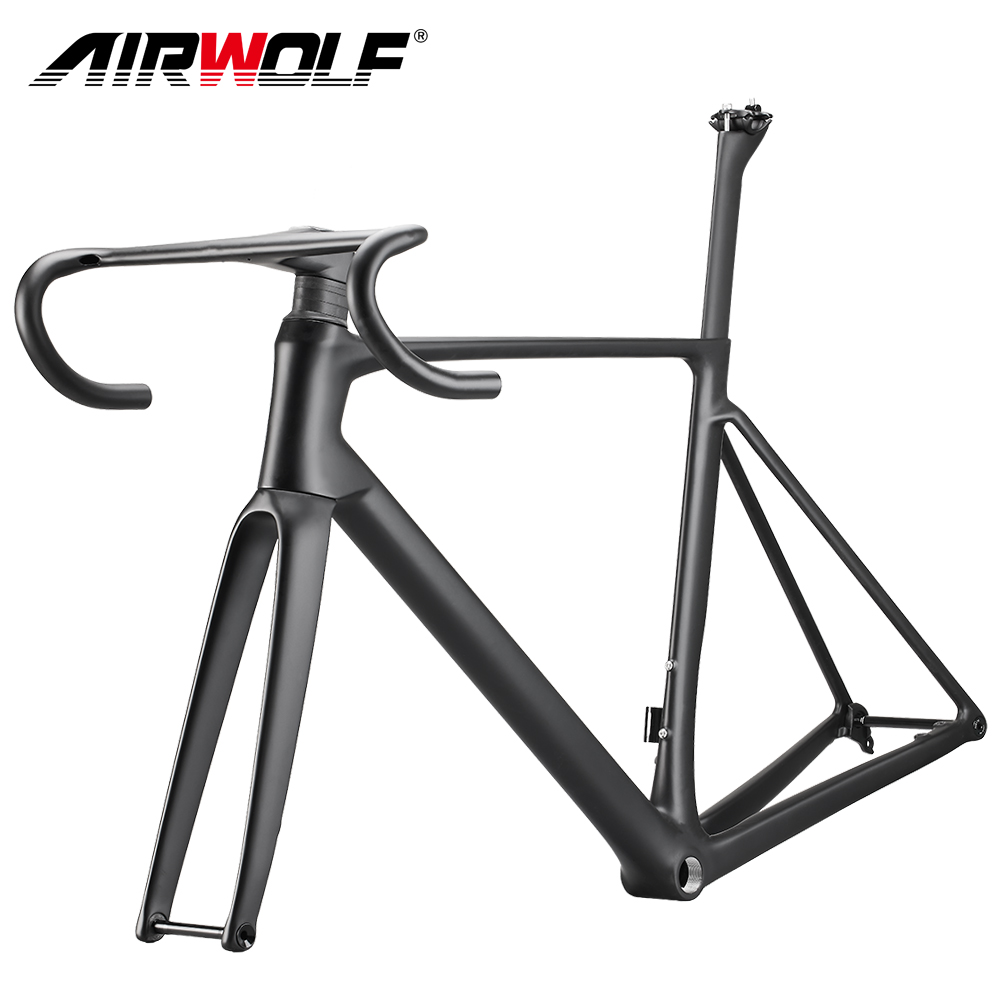

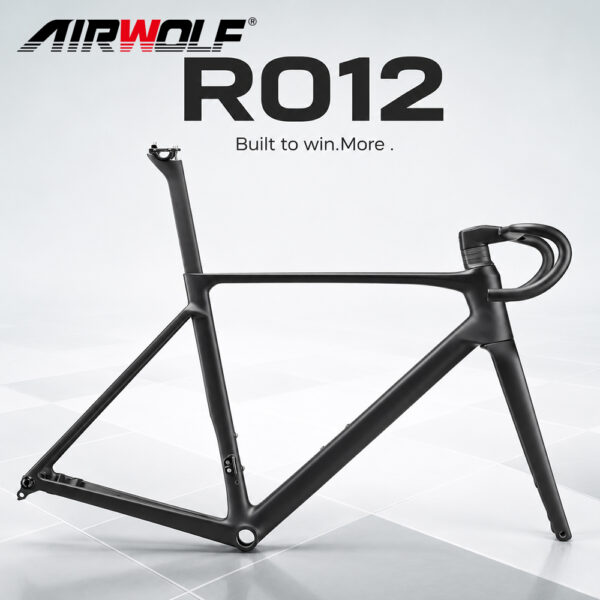

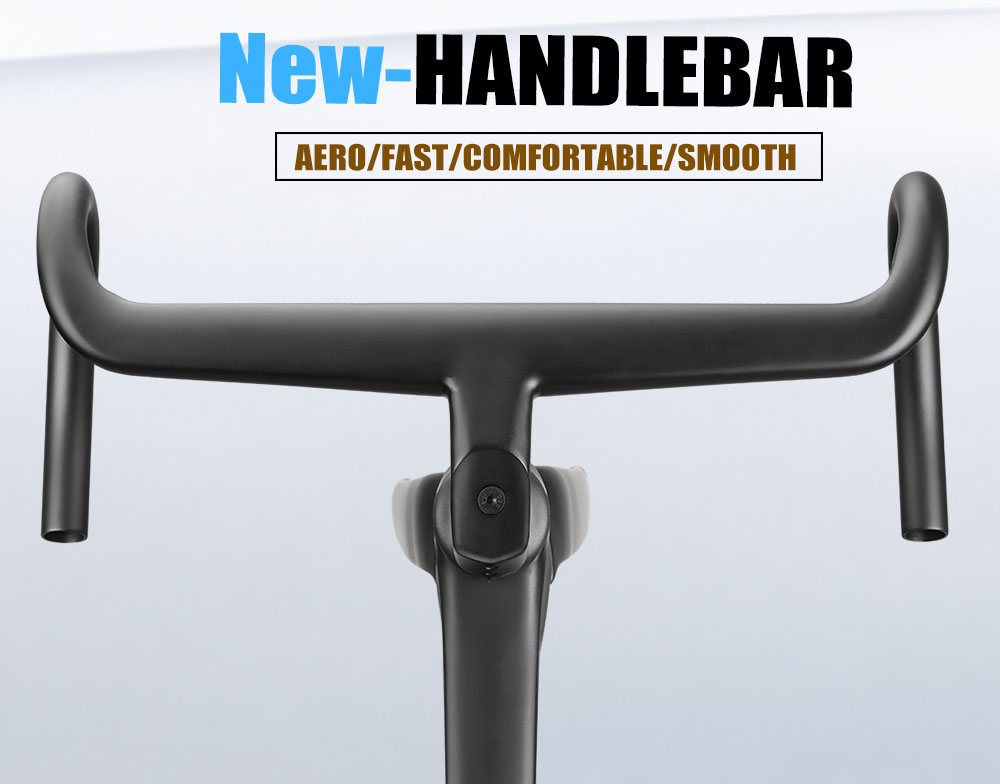

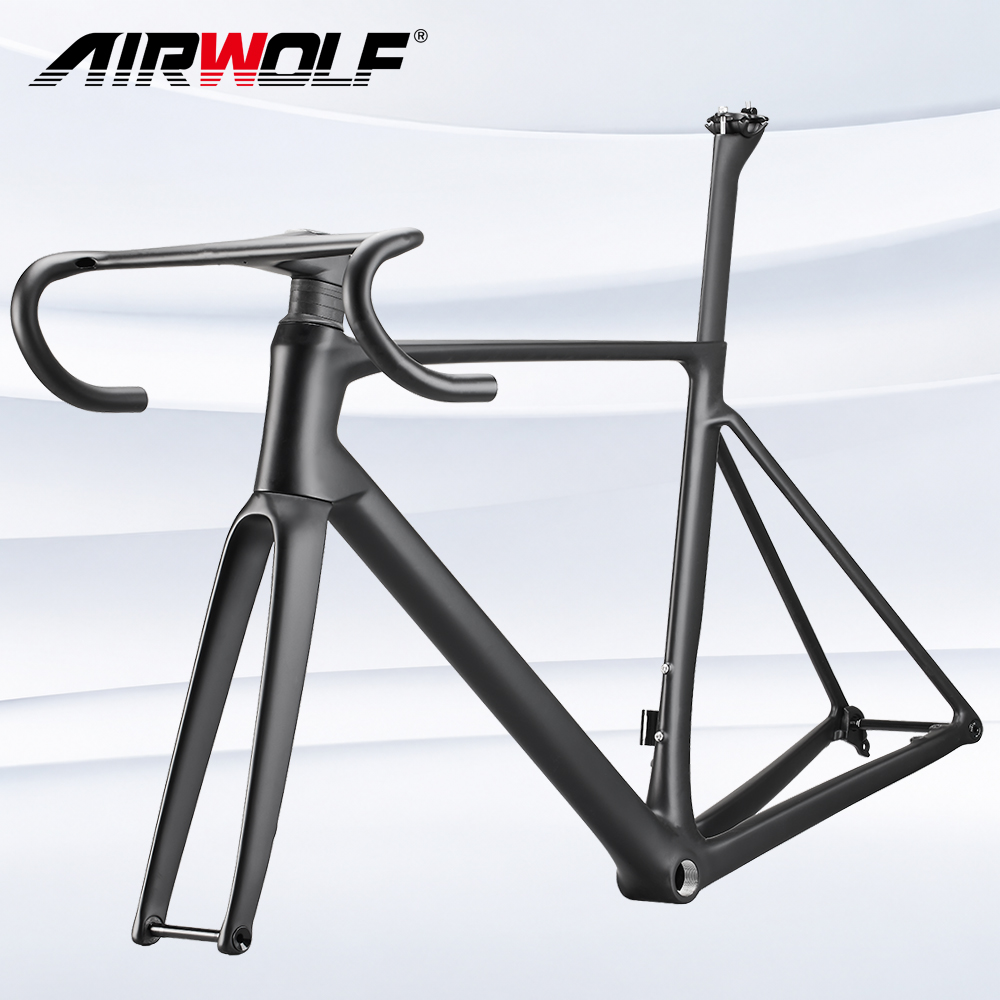

| Content | AIRWOLF YFR012 Light And Aerodynamic Frame EPS Molded Carbon Frame Road Bikes With Aerodynamic Handlebar

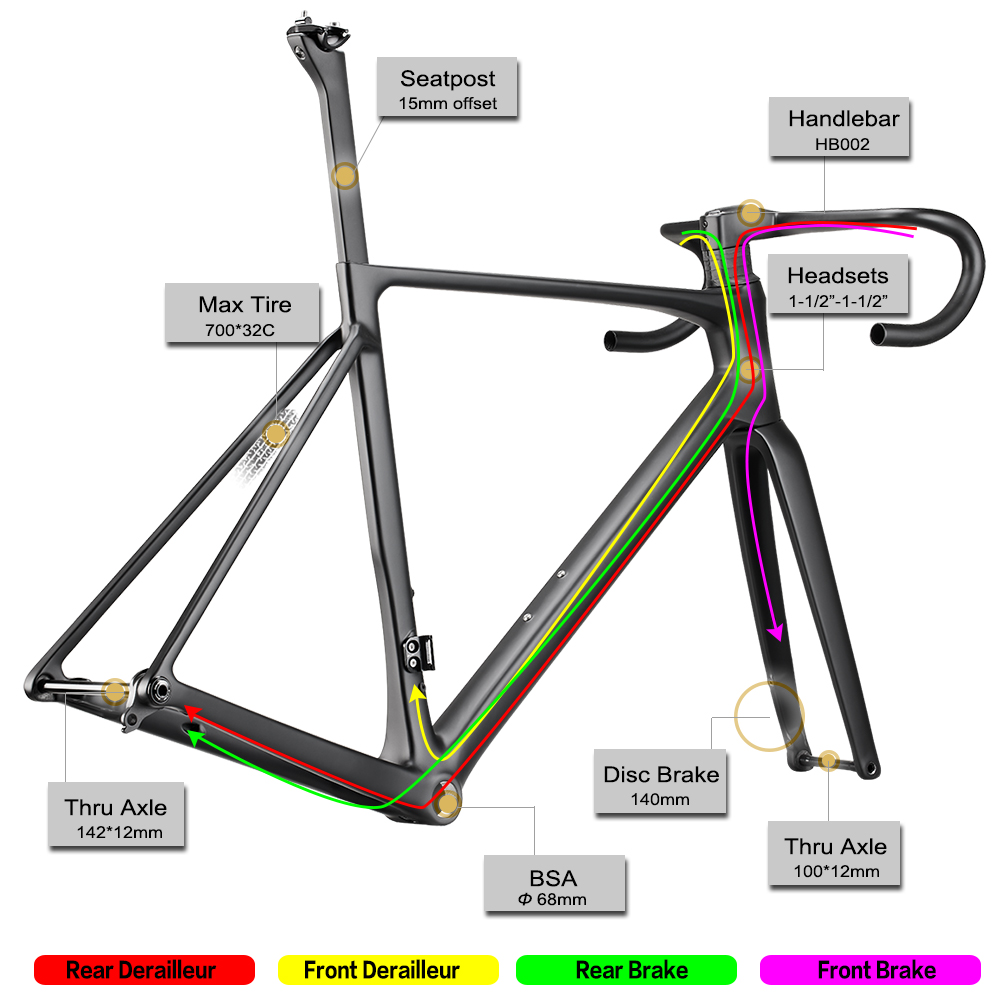

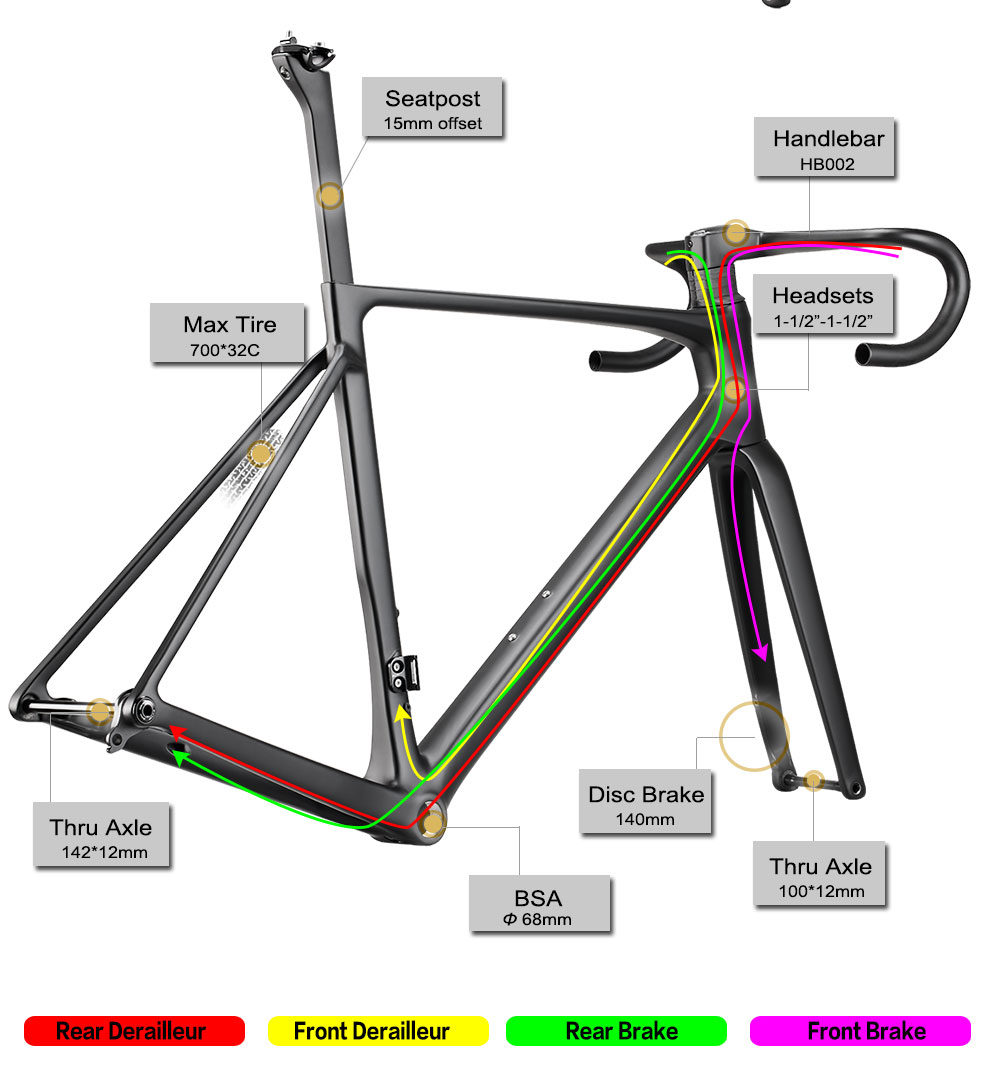

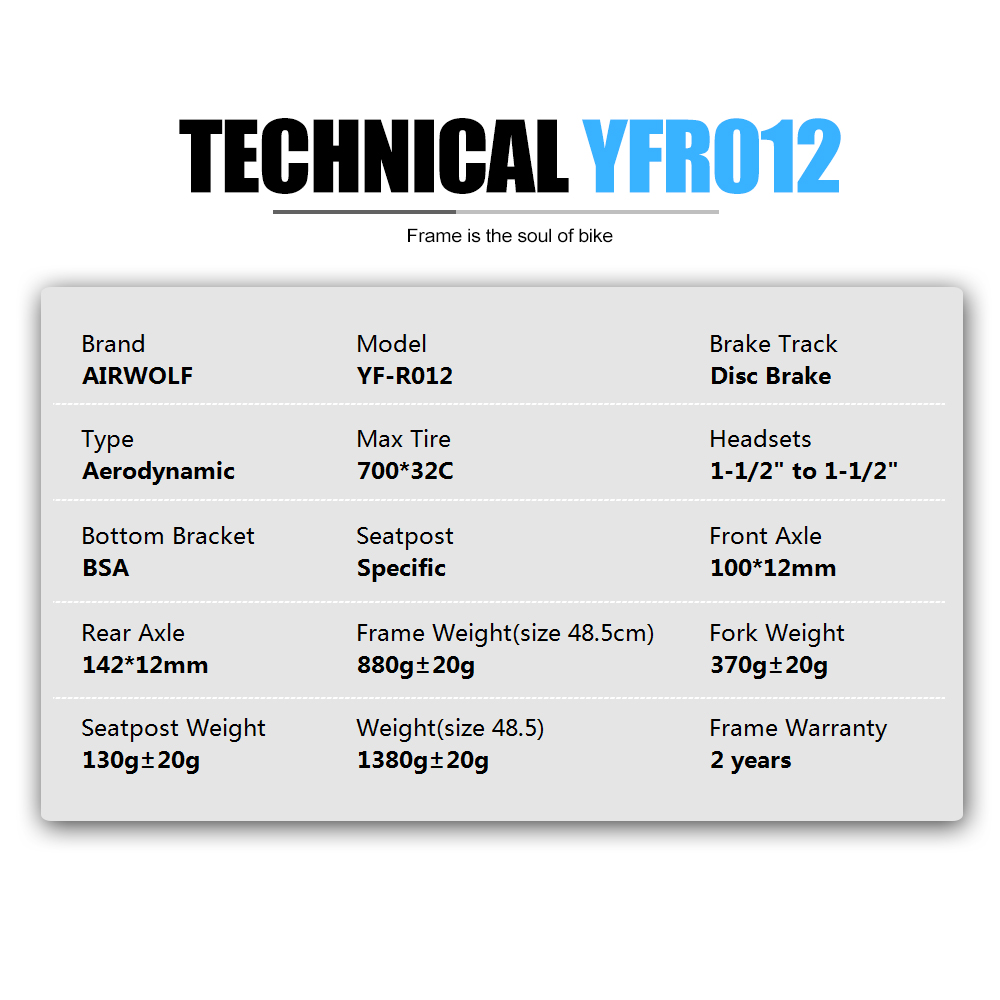

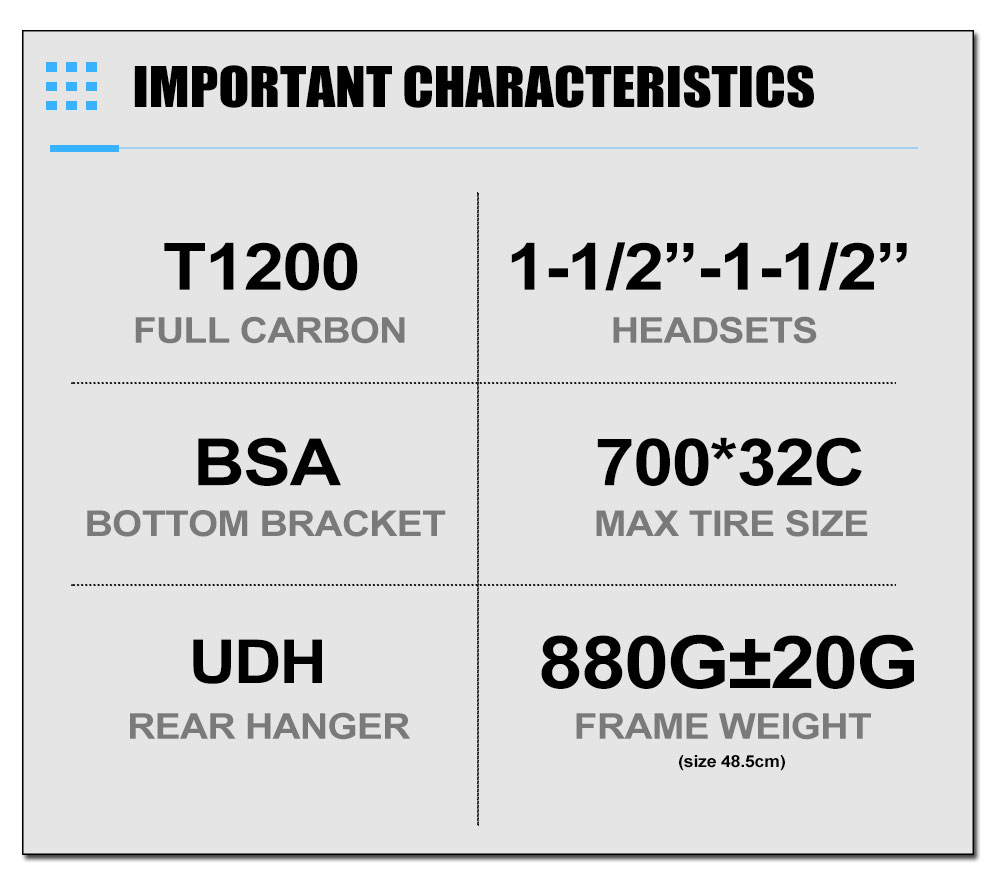

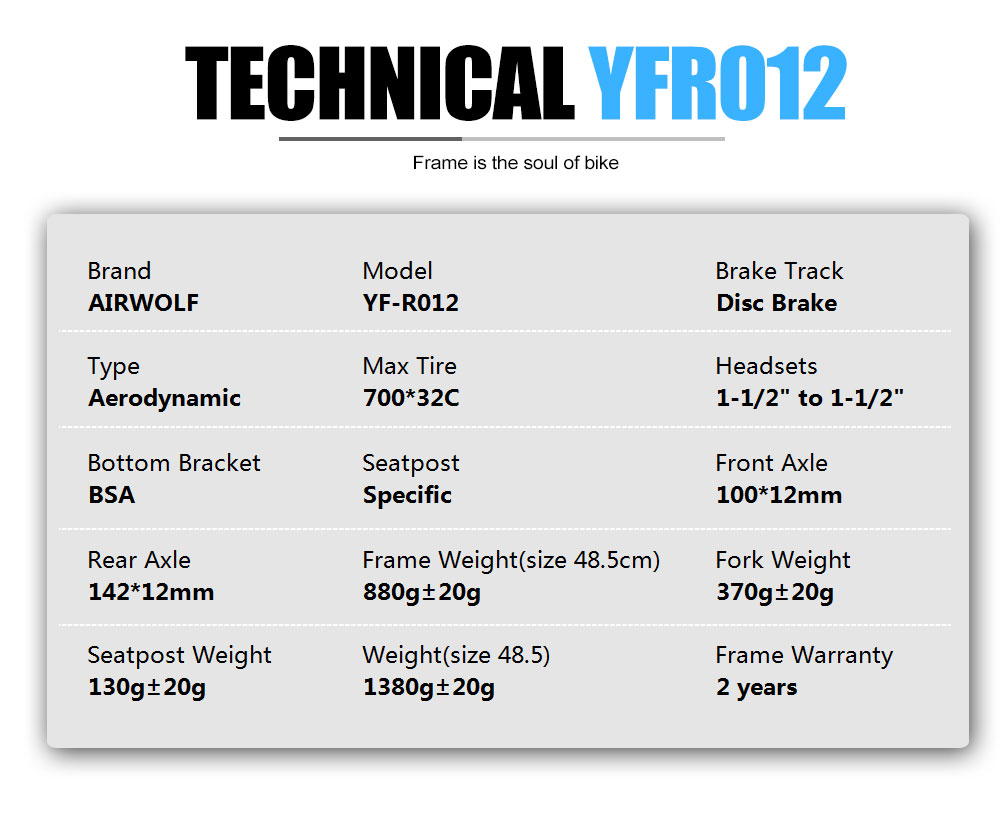

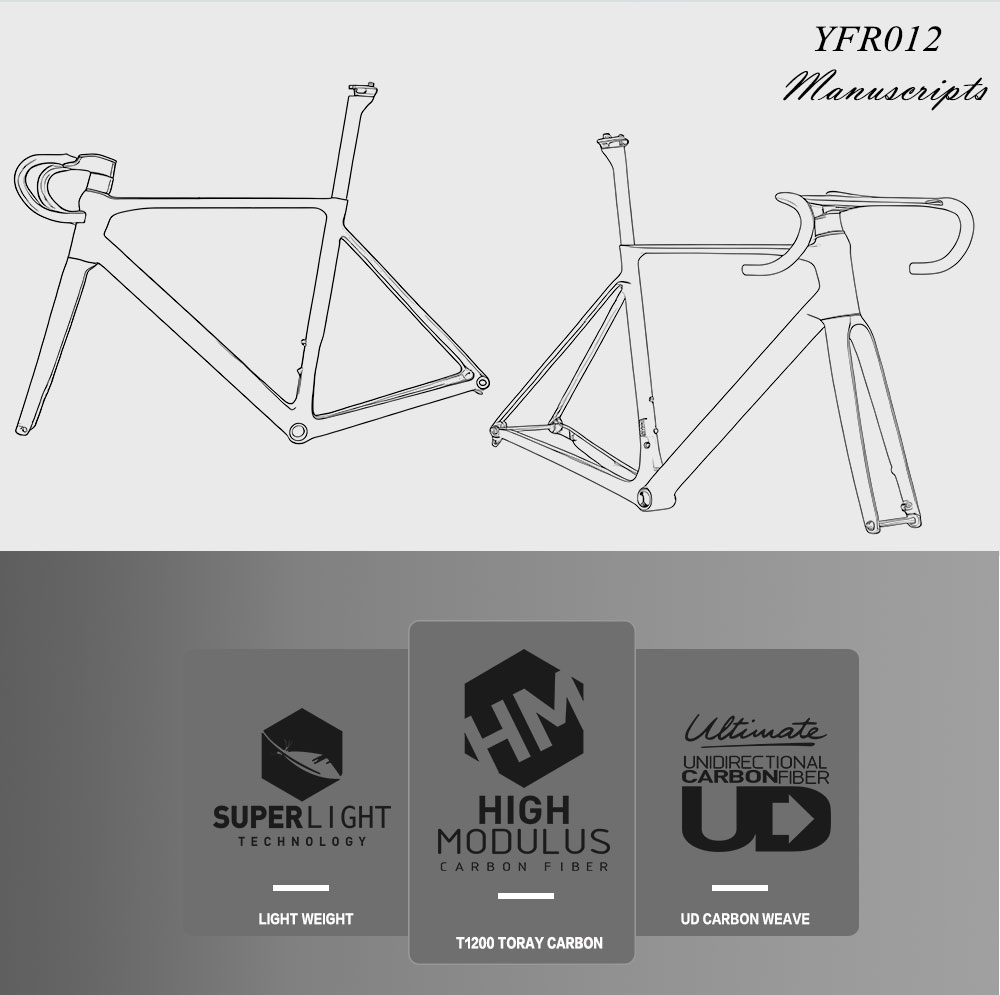

AIRWOLF YFR012 Aerodynamic Disc Road Frame Details:

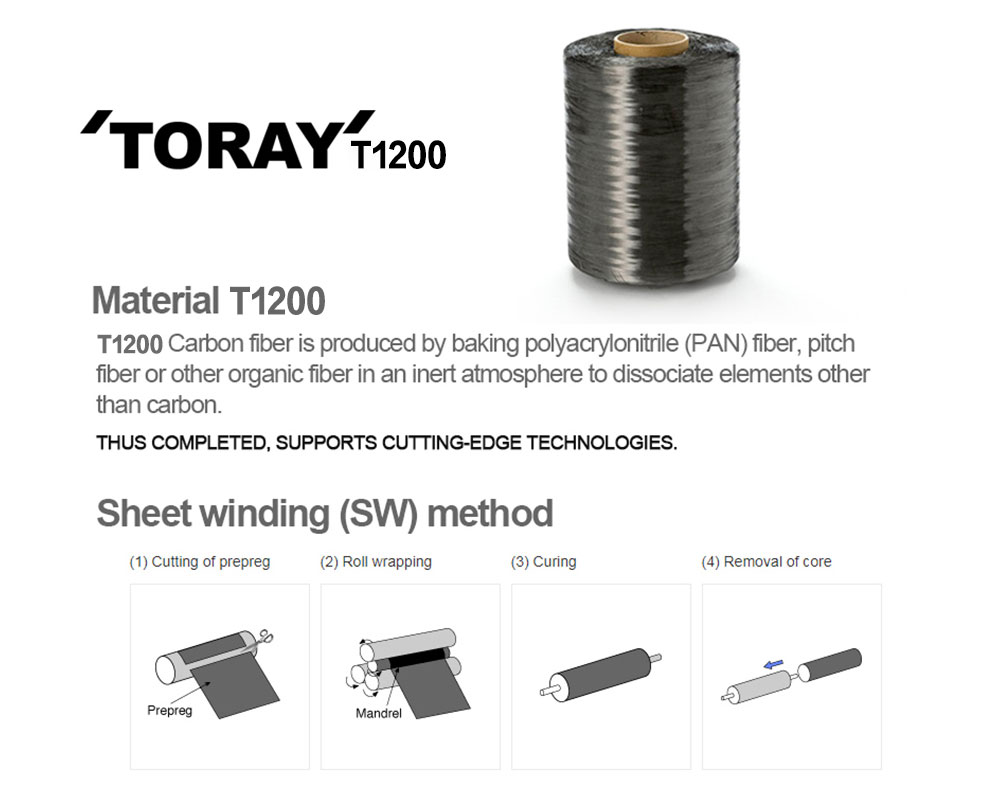

Frame Material : T1200 Toray Carbon Fiber
Carbon Weave : UD

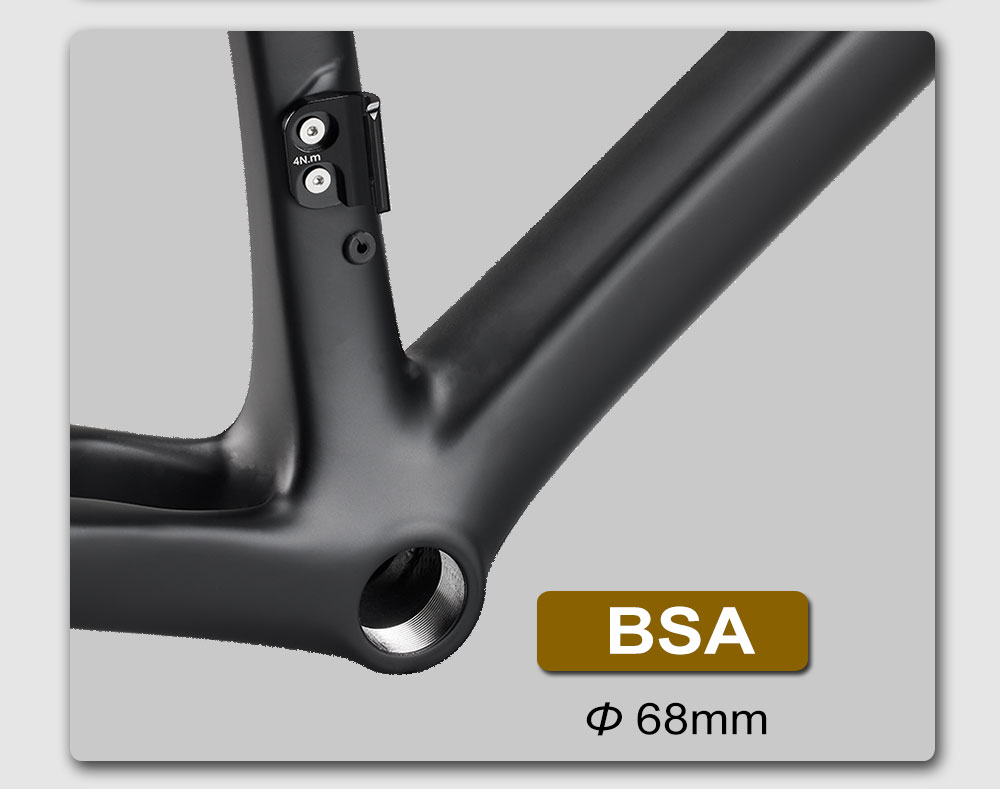

Bottom Bracket : BSA(BB68)
Finish : Matte or Glossy

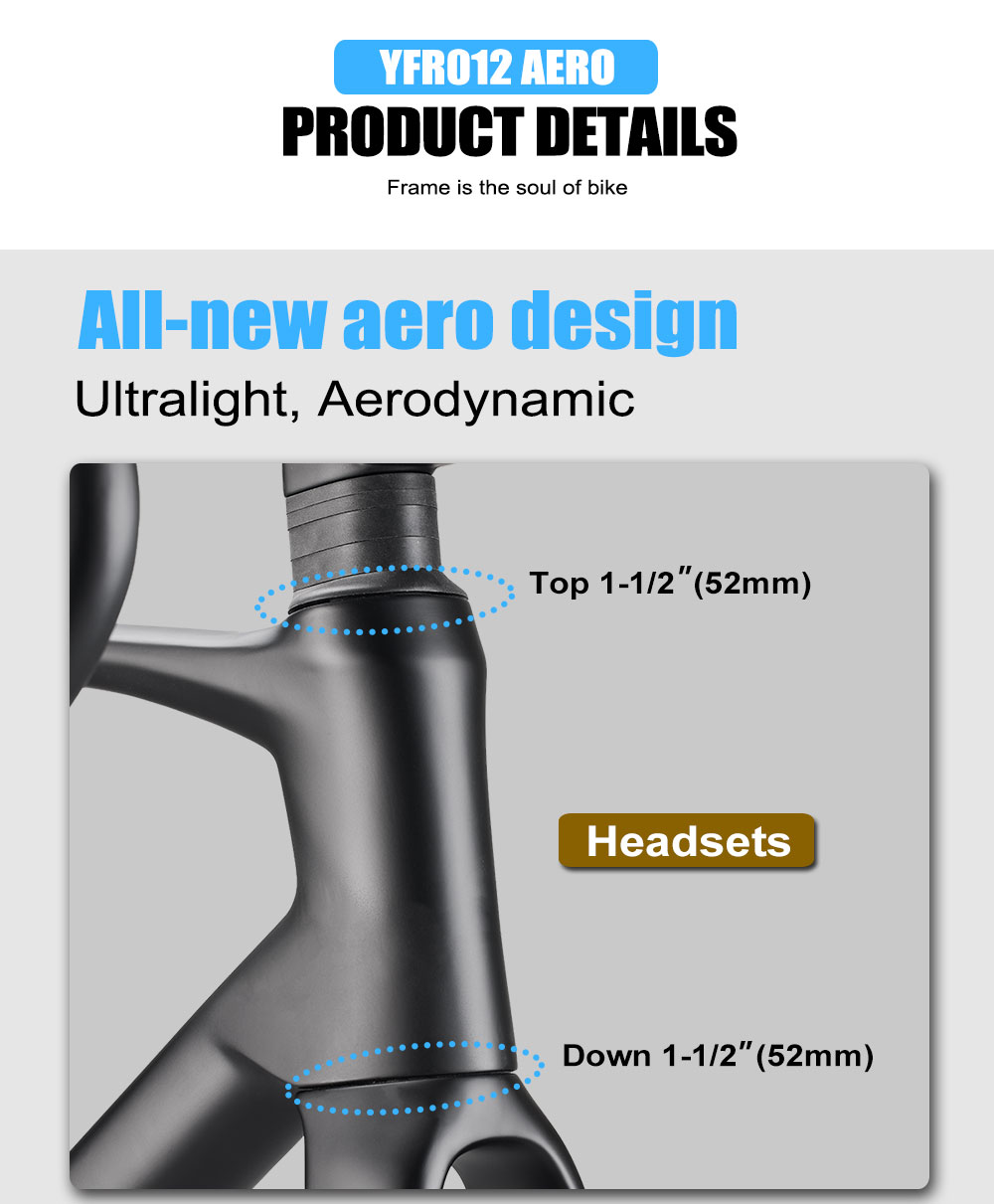

Headsets : 1-1/2" to 1-1/2"
System : Aerodynamic

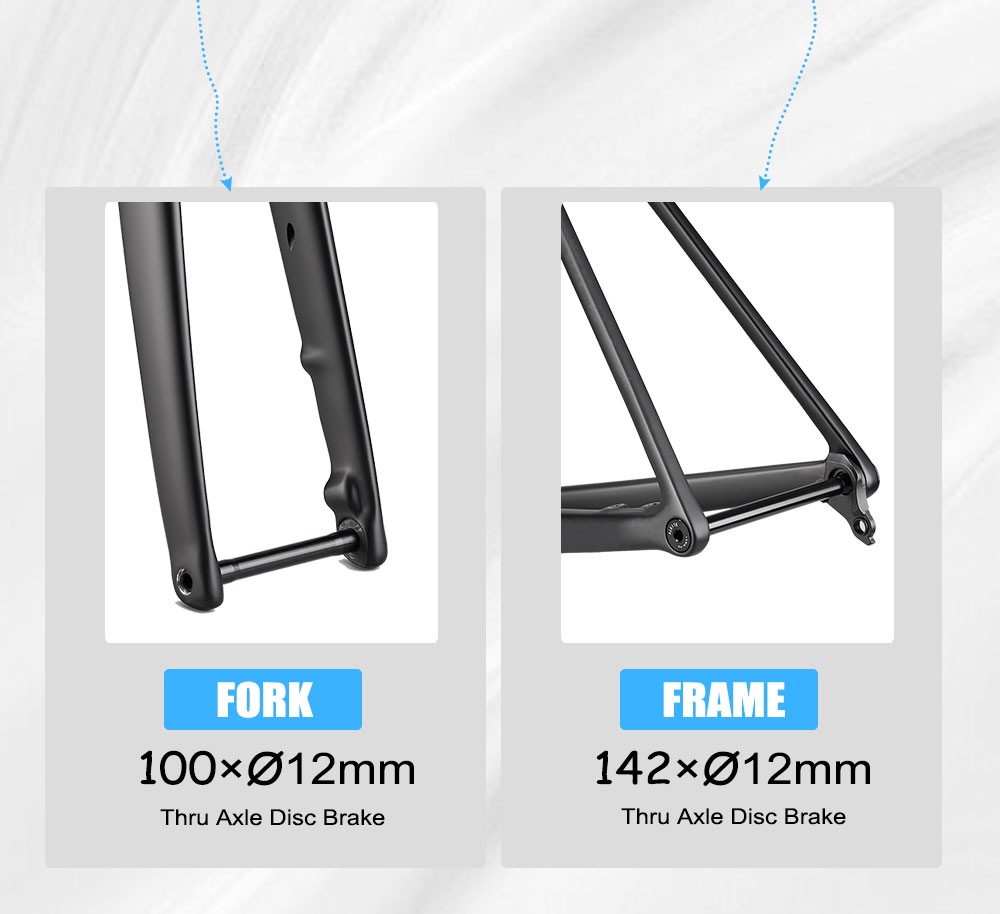

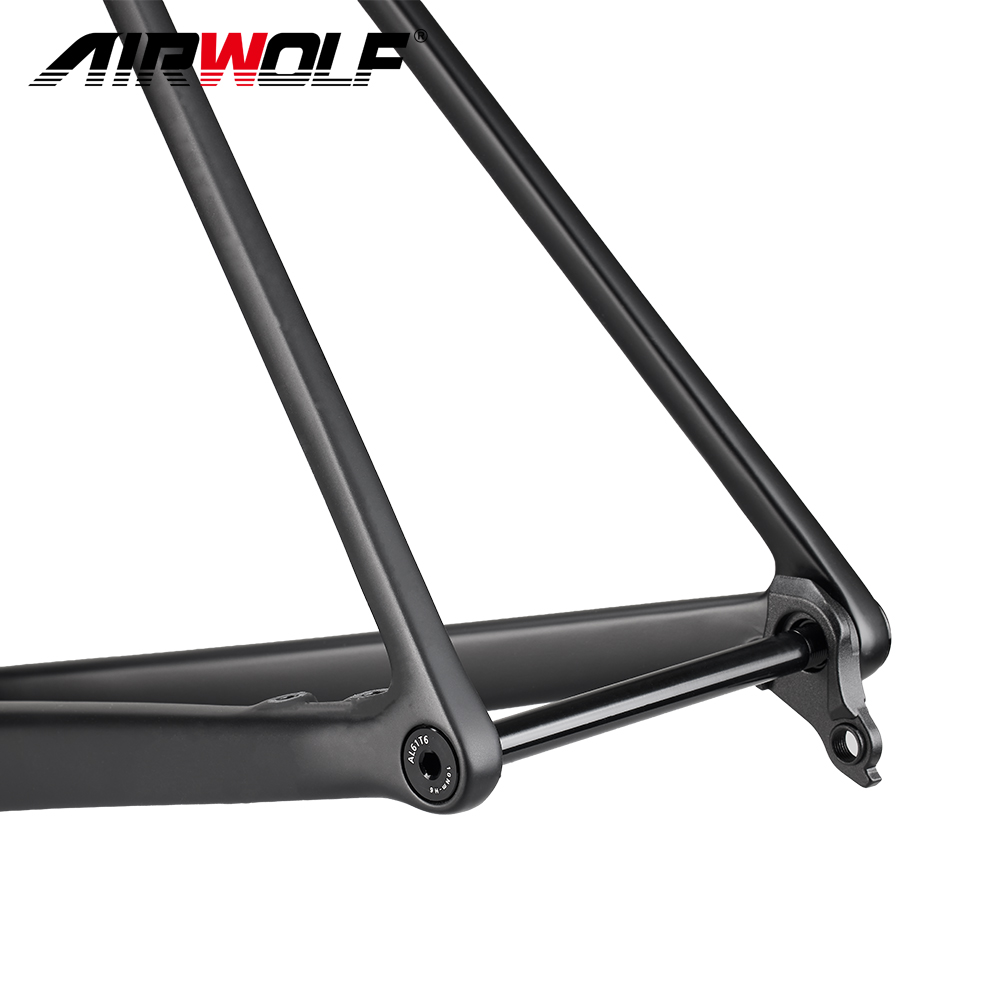

Thru Axle Size : Front 100*12mm , Rear 142*12mm

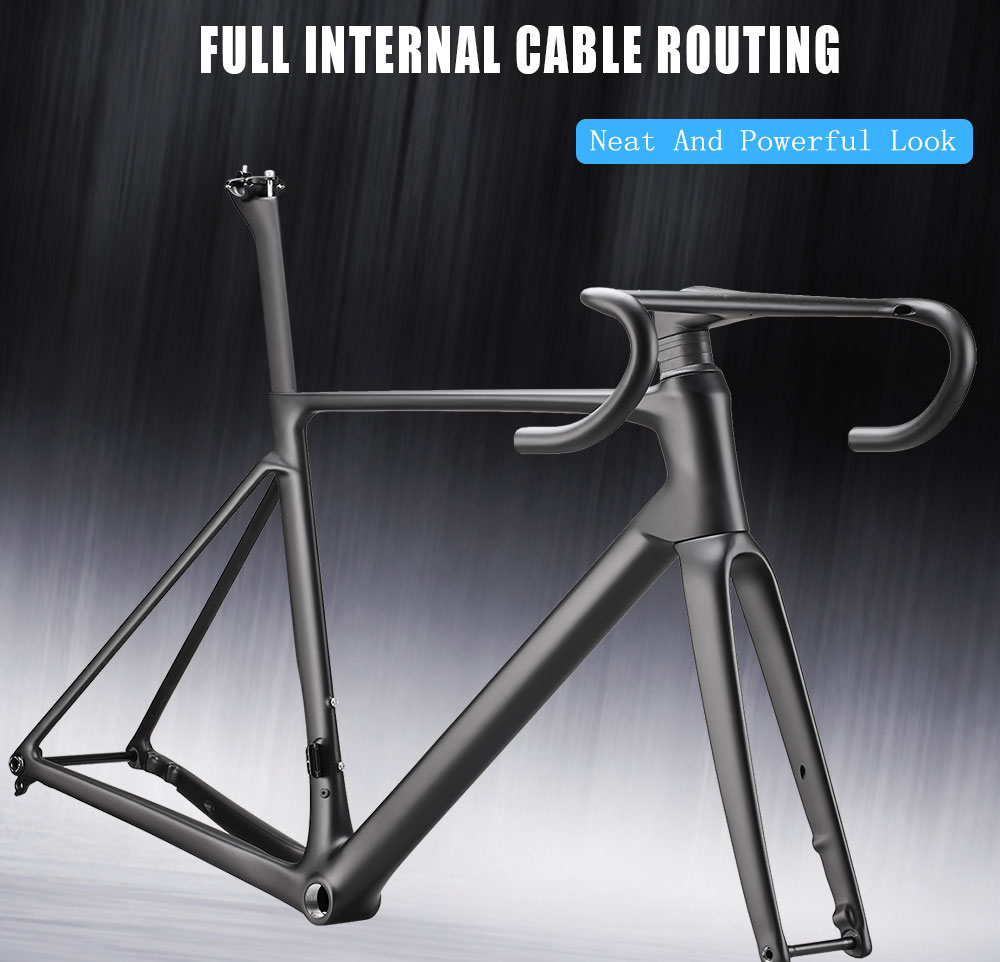

Cable Routing : Internal Cable Routing

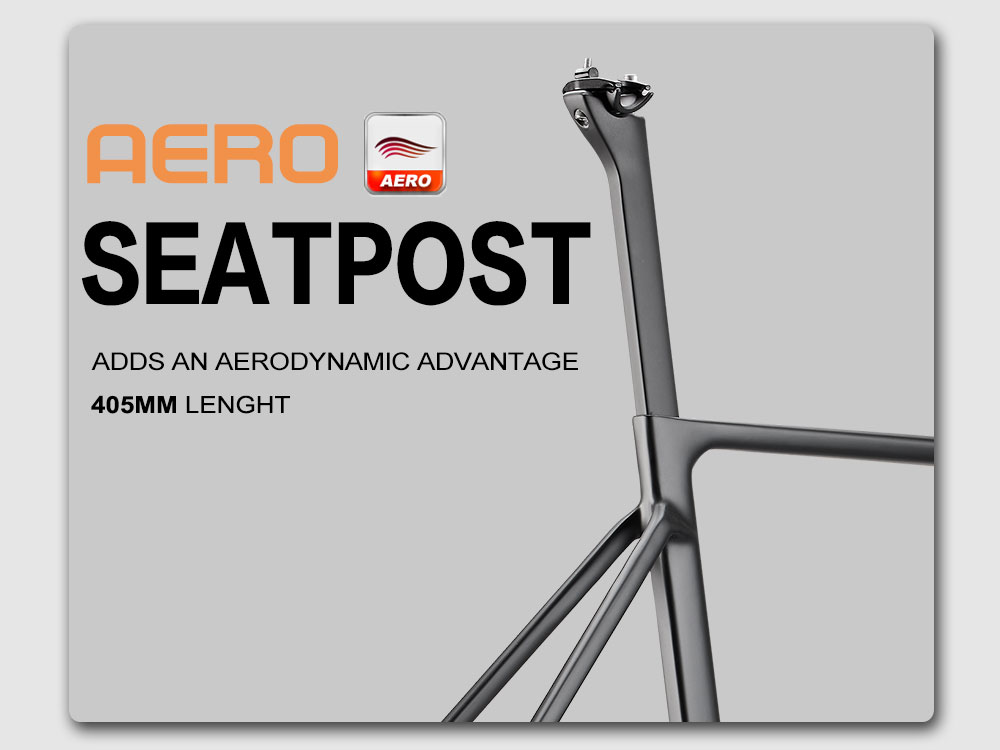

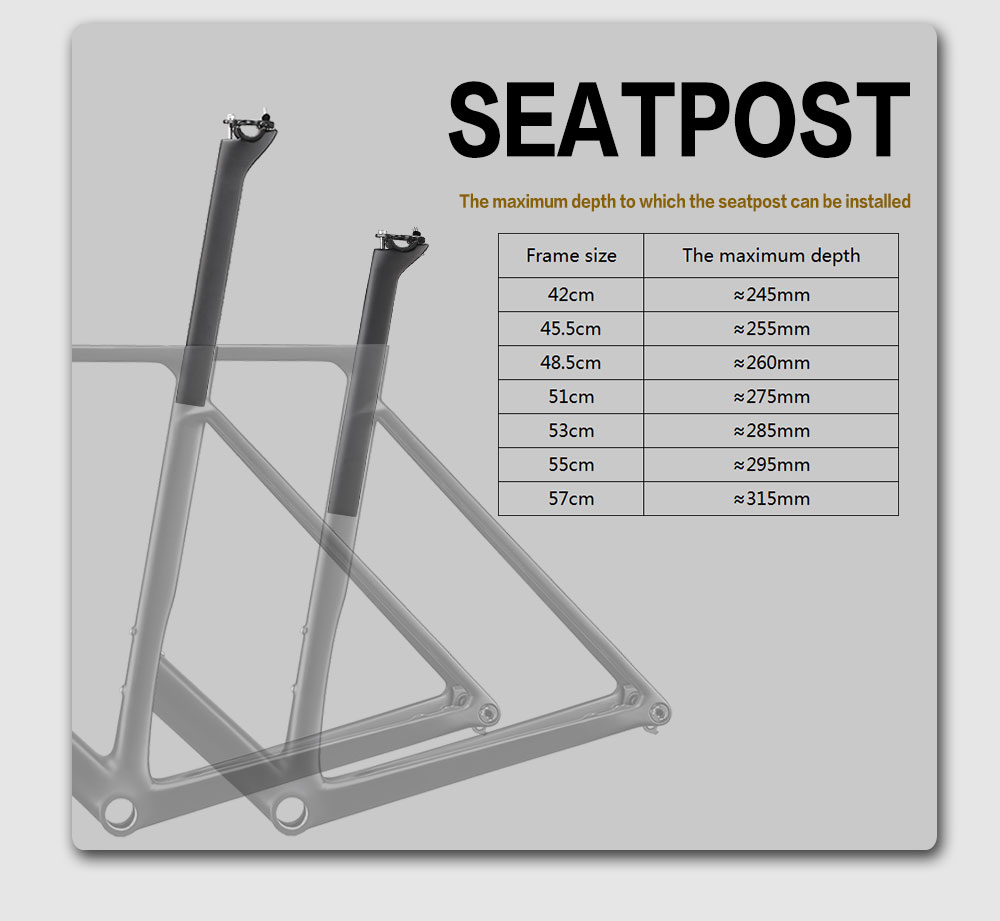

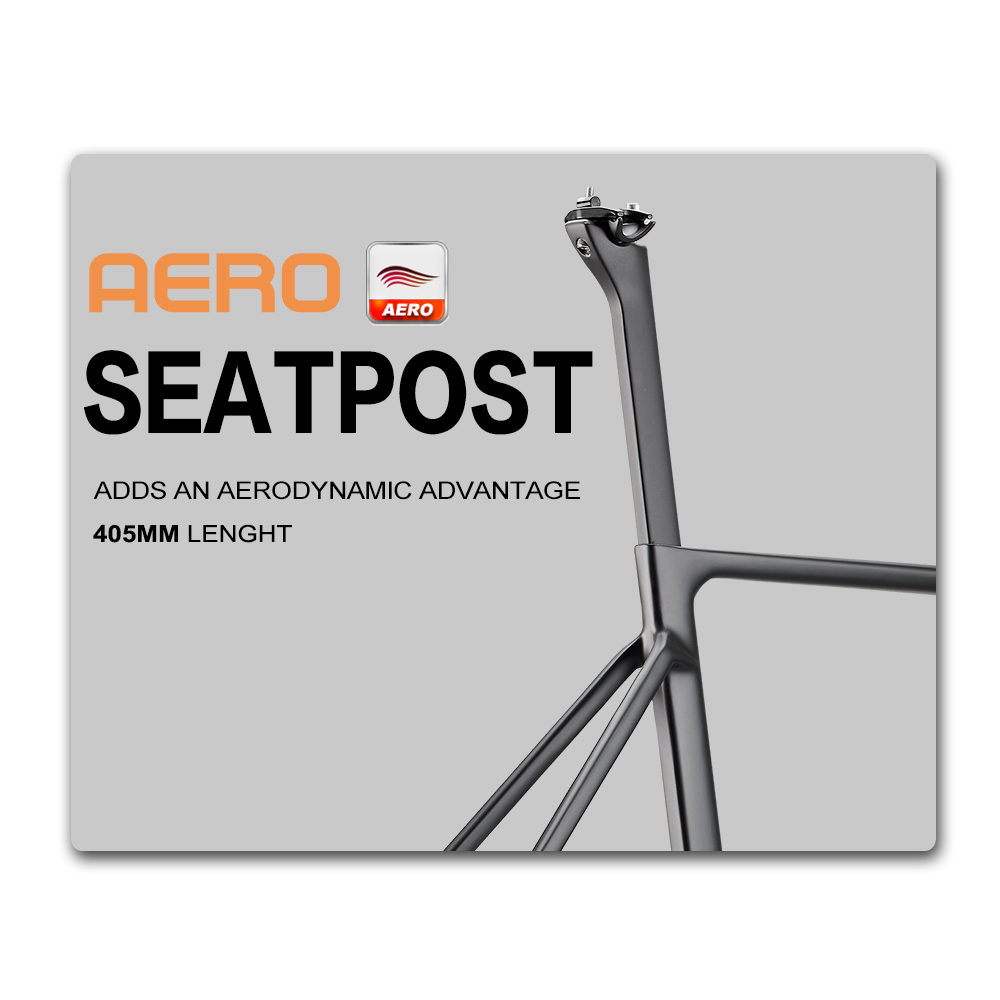

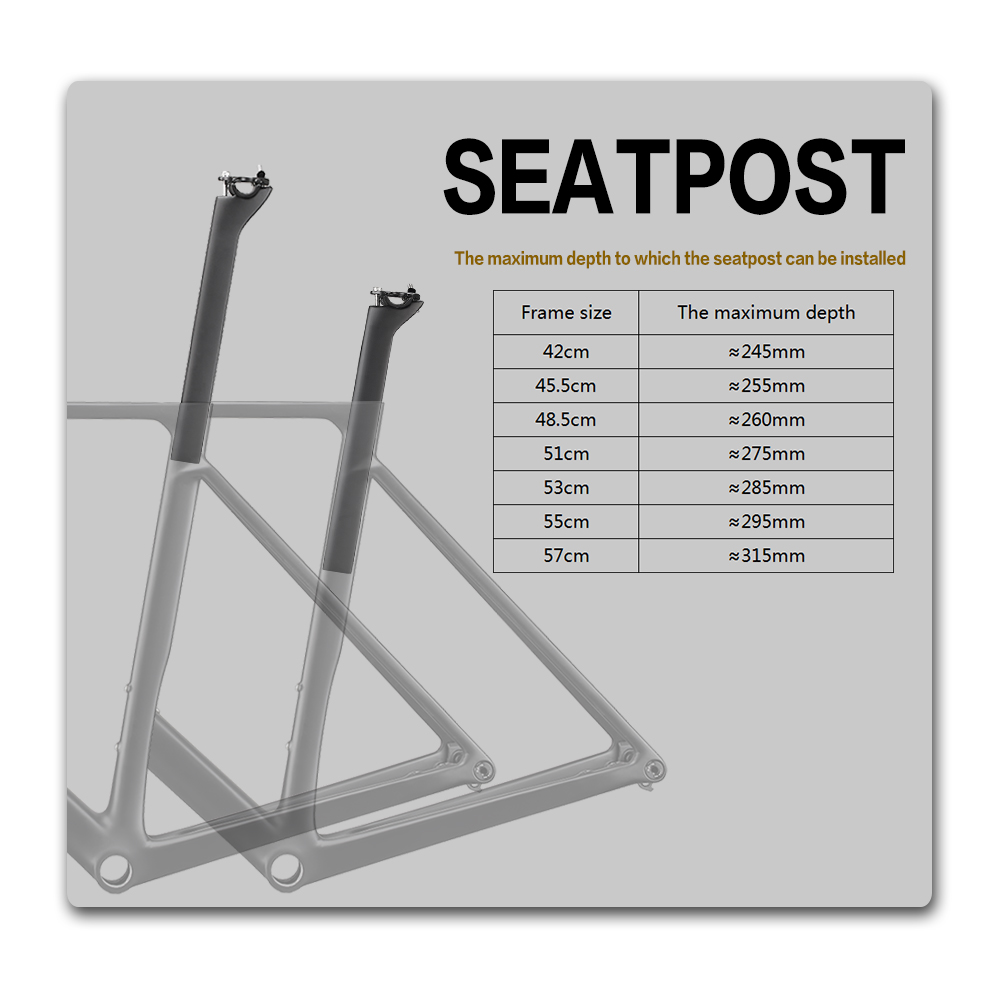

Seatpost : 15mm offset or 0 offset
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical
Weight : Frame 880g (size 48.5) , Fork 370g , Seatpost 130g

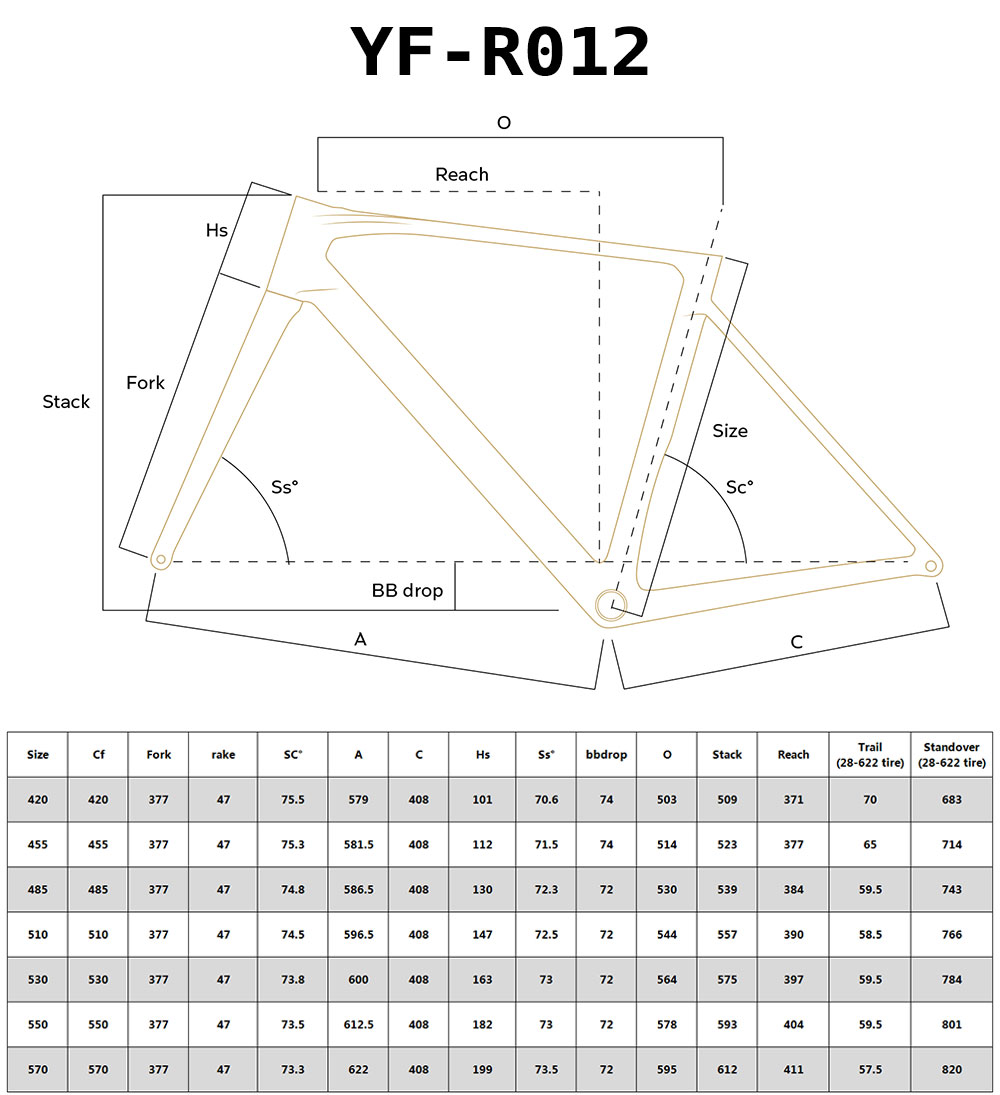

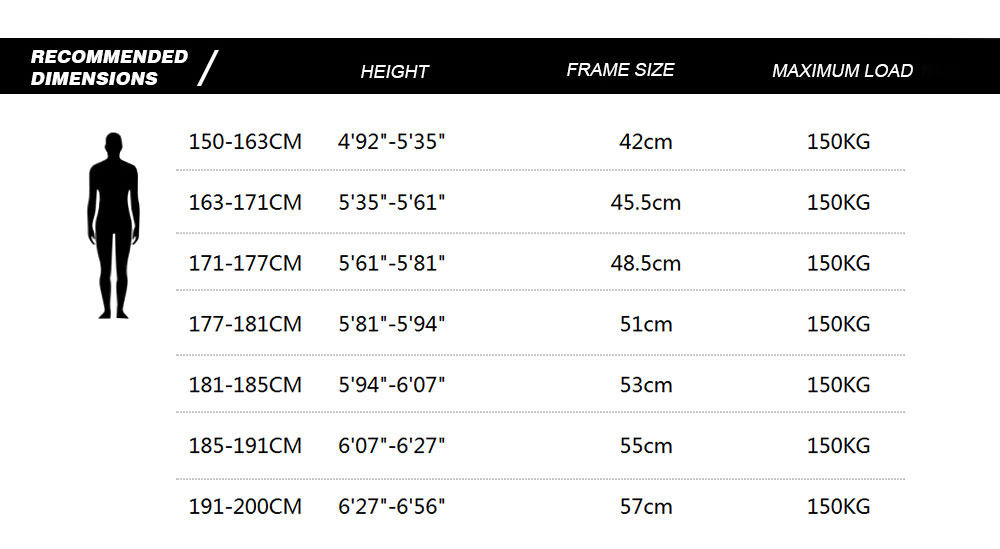

Frame Size : 42/45.5/48.5/51/53/55/57cm

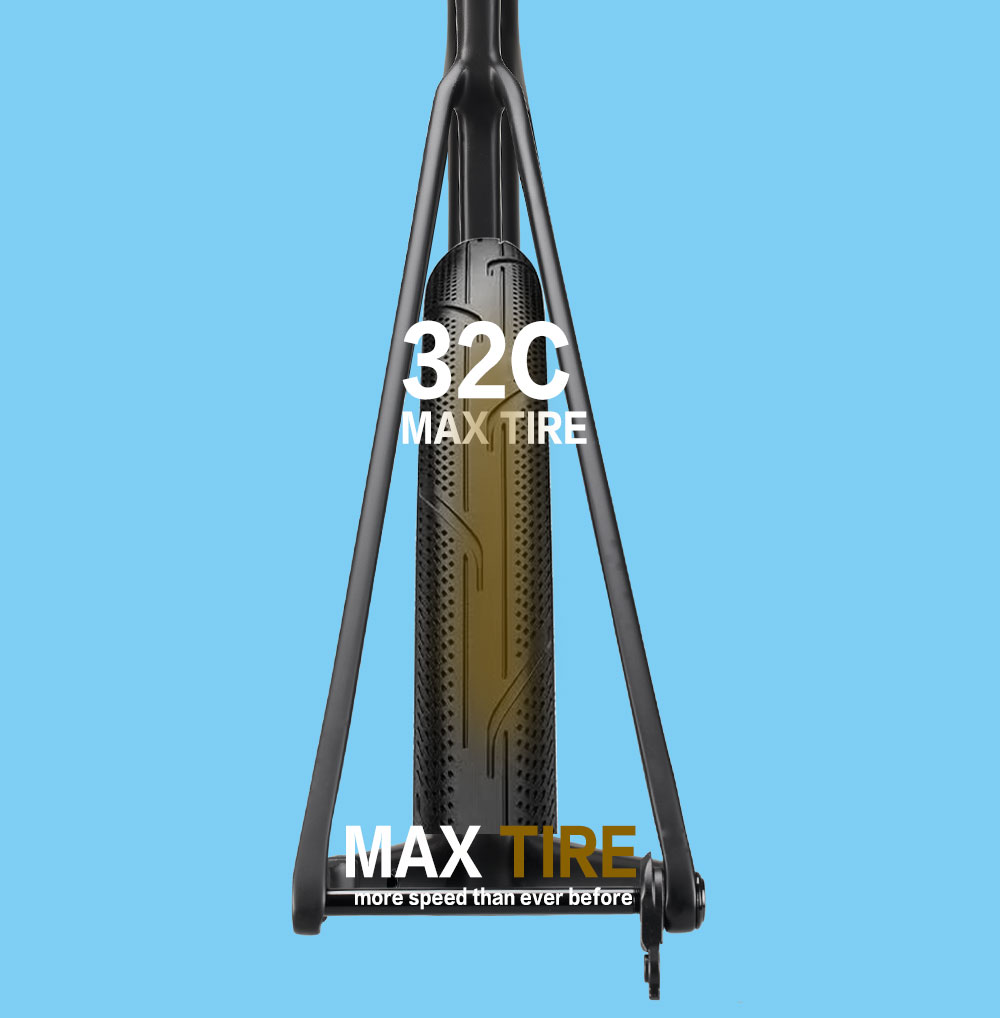

Max Tire Size : 700*32C
Warranty : 2 Years
                         |  | Model : Grevil F
Carbon Weave : UD
Bottom Bracket : BSA
Frame Size : 47/50/53/55/57.5cm
Handlebar Size : 380/400/420/440*90/100/110mm
Thru Axle Size : Front 100*12mm , Rear 142*12mm
Cable Routing : Internal Cable Routing
Type : Gravel
Seatpost : offset 25mm (we also provide 0°degree seatpost)
Max Tire : 700*45C
Frameset Include : Frame,Fork,Seatpost,Integrated Handlebar,Headsets,Clamp,Thru Axle Rod
Warranty : 2 Years
 | Frame Details : Gravel Bike Frame
Frame Material : T1100 Toray Carbon Fiber
Frame Type : Cyclocross Disc Road Bike Frame
Carbon Weave : UD
Bottom Bracket : T47 Thread
Finish : Matte or Glossy
Headsets : 1-1/2" to 1-1/2"
System : Frame Gravel Bike
Thru Axle Size : Front 100*12mm , Rear 142*12mm
Cable Routing : Internal Cable Routing
Type : Gravel
Seatpost : 27.2mm
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical
Weight : Frame 1250g (size M) , Fork 450g , Seatpost 190g , Handlebar 390g(size 420*110mm)
Frame Size : XS/S/M/L/XL
Max Tire Size : 700*50C
Frameset Include : Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer,Thru Axle Rod
Warranty : 2 Years

 | 1.Brand Name:Airwolf
2.Frame Type:YFR068 Carbon Gravel Bike Frame
3.Frame Material:T1100 Toray Carbon Fiber
4.Bike Type:Cyclecross Gravel Bike
5.Carbon Weave:UD
6.Finish:Matte Or Glossy
7.Bottom Bracket:BB Right (46*79mm)
8.Headsets:49.5mm Down 49.5mm
9.Brake Type:Disc Brake
10.Disc Rotor Size:140/160mm
11.Fork Thru Axle:100*12mm
12.Frame Thru Axle:142*12mm
13.Cable Routing:Internal Cable Routing
14.Front Derailleur:Stationary Type
15.Suitable Derailleur:Di2 or Mechanical Dechaincal
16.Weight:Frame 1061g (Size:54cm),Fork 442g ,Seatpost 209g,Handlebar 249g(size 420mm),Stem 141g(Size 90mm)
17.Frame Size:48/51/54/56/58cm
18.Max Tire Size:700*40C
19.Warranty:2 Years
20.OEM Painting:Colors And logo
21.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum Parts

| 1.Brand Name:Airwolf
2.Frame Type:YFR068 Carbon Gravel Bike Frame
3.Frame Material:T1100 Toray Carbon Fiber
4.Bike Type:Cyclecross Gravel Bike
5.Carbon Weave:UD
6.Finish:Matte Or Glossy
7.Bottom Bracket:BB Right (46*79mm)
8.Headsets:49.5mm Down 49.5mm
9.Brake Type:Disc Brake
10.Disc Rotor Size:140/160mm
11.Fork Thru Axle:100*12mm
12.Frame Thru Axle:142*12mm
13.Cable Routing:Internal Cable Routing
14.Front Derailleur:Stationary Type
15.Suitable Derailleur:Di2 or Mechanical Dechaincal
16.Weight:Frame 1061g (Size:54cm),Fork 442g ,Seatpost 209g,Handlebar 249g(size 420mm),Stem 141g(Size 90mm)
17.Frame Size:48/51/54/56/58cm
18.Max Tire Size:700*40C
19.Warranty:2 Years
20.OEM Painting:Colors And logo
21.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum Parts


 |
| Additional information |
| Frame Size |
42cm, 45.5cm, 48.5cm, 51cm, 53cm, 55cm, 57cm
|
| Handlebar Size |
370*70mm, 370*80mm, 370*90mm, 370*100mm, 370*110mm, 370*120mm, 390*70mm, 390*80mm, 390*90mm, 390*100mm, 390*110mm, 390*120mm, 410*70mm, 410*80mm, 410*90mm, 410*100mm, 410*110mm, 410*120mm, 430*70mm, 430*80mm, 430*90mm, 430*100mm, 430*110mm, 430*120mm
|
| Finished |
Matte, Glossy
|
| Colors |
Black, Dark Gray, Dark Blue, Light Gray, Light Blue, Yellow, Blue, Red, Orange, Chameleon 09, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple, Metallic Rose Red, Ice Crystal Green, Ice Crystal Dark Blue, Ice Crystal Orange, Ice Crystal Light Blue, Ice Crystal Gold, Ice Crystal Red, Ice Crystal Purple, Ice Crystal Pink, Ice Crystal Gray, The Other Chameleon Colors
|
|
| Frame Size |
50cm(S), 52cm(M), 54cm(ML), 56cm(L), 58cm(XL)
|
| Handlebar Size |
400*90mm, 400*100mm, 400*110mm, 420*90mm, 420*100mm, 420*110mm, 440*90mm, 440*100mm, 440*110mm
|
| Finished |
Matte, Glossy
|
| Colors |
Carbon Red Smoke, Black and Chameleon, Black, Iridescent BluePeral
|
|
| Frame Size |
47cm, 50cm, 53cm, 55cm, 57.5cm
|
| Handlebar Size |
380*90mm, 380*100mm, 380*110mm, 400*90mm, 400*100mm, 400*110mm, 420*90mm, 420*100mm, 420*110mm, 440*90mm, 440*100mm, 440*110mm
|
| Finished |
Matte, Glossy
|
| Colors |
F1 BOB painting with logo, F2 painting with logo, F3 painting with logo, F4 painting with logo, F5 painting with logo, F6 painting with logo, F7 painting with logo, F8 painting with logo, F9 painting with logo, F10 painting with logo, F11 painting with logo
|
|
| Weight |
5.0 kg |
| Dimensions |
100 × 22 × 60 cm |
| Frame Size |
XS, S, M, L, XL
|
| Colors |
Black, Green and White, Chameleon, Colorful, Ice Crystal Green, Ice Crystal Dark Blue, Ice Crystal Orange, Ice Crystal Light Blue, Ice Crystal Gold, Ice Crystal Red, Ice Crystal Purple, Ice Crystal Pink, Ice Crystal Gray, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple, Metallic Rose Red
|
| Finished |
Matte, Glossy
|
|
| Frame Size |
48cm, 51cm, 54cm, 56cm, 58cm
|
| Handlebar Size |
400mm, 420mm, 440mm
|
| Stem Size |
90mm, 100mm, 110mm, 120mm
|
| Color |
A1 with white logo, A2 with white logo, A3 with gold logo, A4 with gold logo, A5 with white logo, A6 with gold logo, A7 with gold logo, A8 with gold logo, A9 with white logo, A10 with white logo, A11 with gold logo, A12 with white logo, A13 with black logo, A14 with white logo, A15 with gold logo
|
| Finished |
Matte, Glossy
|
|
| Frame Size |
48cm, 51cm, 54cm, 56cm, 58cm
|
| Handlebar Size |
400mm, 420mm, 440mm
|
| Stem Size |
90mm, 100mm, 110mm, 120mm
|
| Color |
All Black, Crystal Red, Crystal Gold, Crystal Blue, Crystal Green, Crystal Pink, Crystal Grey, Crystal Orange Red, Crystal Deep Blue, Crystal Purple
|
| Finished |
Matte, Glossy
|
|
