| Description | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172 | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
This frame is come with logo ,if you need more pictures , pease contact us ! | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
For this frame set,we can do logo for the frame,If you want to do the logo,please contact us
For the order,it included frame,fork,seatpost,handlebar,stem,clamp,BB transfer,Headsets,hangers,thru axle.
To Europe,we use the DPD shipping method to ship the goods,you don't need to worry about the custom problem,goods directly arrive at your home,and you don't need to deal with custom and also don't have custom problem.
To USA,we use the UPS or Fedex to ship the goods,after ship the goods,about 7-10days,good can arrive at you | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
This price is include the original logo. If you need more pictures, please contact us ! | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
This price is not include the original logo. If you need one with the logo, please contact us ! | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172 |
| Content | 1.Brand Name:Airwolf
2.Frame Type:YFR009 Carbon Road Frame
3.Frame Material:T1100 Toray Carbon Fiber
4.Bicycle Type:Lightweight Road Bicycle
5.Carbon Weave:UD
6.Finish:Matte Or Glossy
7.Color:Black And Any Color
8.Bottom Bracket:PF30 (46*68mm)
9.Headsets:Up 1-1/8'' Down 1-1/2''
10.Brake Type:V Brake
11.Fork Quick Release:100*9mm
12.Frame Quick Release:130*9mm
13.Cable Routing:Internal Cable Routing
14.Seatpost:Framed Specific
15.Front Derailleur:Stationary Type
16.Suitable Derailleur:Di2 or Mechanical
17.Weight:Frame 787g (Size:49CM),Fork 367g ,Seatpost 177g
18.Frame Size:44/49/52/54/56/58cm
19.Max Tire Size:700*25C
20.Warranty:2 Years
21.OEM Painting:Colors And logo
22.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum Parts

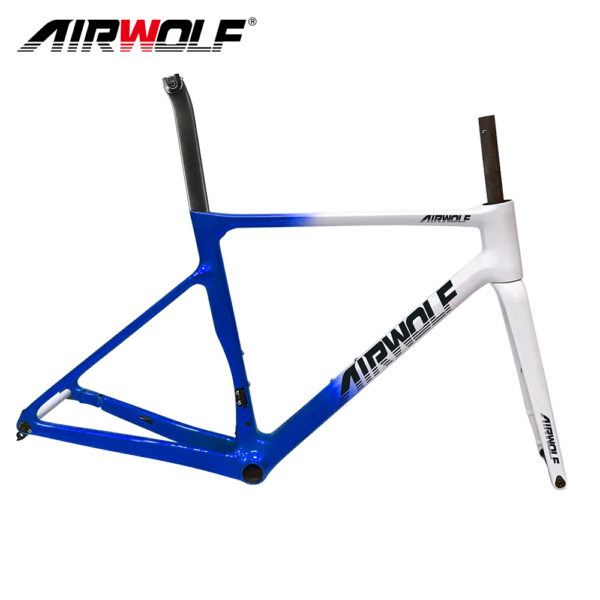

    | AIRWOLF S5 Disc Brake Road Framesets BBRight T1100 UD Carbon Racing Road Bike Frame With Handlebar Stem Carbon Frame 48/51/54/56/58cm
Frame Material : T1100 Toray Carbon Fiber
Frame Type : 1:1 Desgin S5 Bike Frame
Carbon Weave : UD
Bottom Bracket : BBRight
Finish : Matte or Glossy
System : Disc Brake Road Frame
Thru Axle Size : Front 100*12mm , Rear 142*12mm
Cable Routing : Internal Cable Routing
Seatpost : Framed Specific
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical
Weight : Frame 950g (size 51cm) , Fork 400g , Seatpost 230g
Frame Size : 48/51/54/56/58cm
Handlebar Size : 380/400/420/440mm
Stem Size : 80/90/100/110mm
Frameset Include : Frame,Fork,Seatpost,Handlebar,Stem,Headsets,Seatpost Clamp,Thru Axle Rod,Aluminum parts
Warranty : 2 Years
 | 1.Brand Name:Airwolf
2.Frame Type:YFR068 Carbon Gravel Bike Frame
3.Frame Material:T1100 Toray Carbon Fiber
4.Bike Type:Cyclecross Gravel Bike
5.Carbon Weave:UD
6.Finish:Matte Or Glossy
7.Bottom Bracket:BB Right (46*79mm)
8.Headsets:49.5mm Down 49.5mm
9.Brake Type:Disc Brake
10.Disc Rotor Size:140/160mm
11.Fork Thru Axle:100*12mm
12.Frame Thru Axle:142*12mm
13.Cable Routing:Internal Cable Routing
14.Front Derailleur:Stationary Type
15.Suitable Derailleur:Di2 or Mechanical Dechaincal
16.Weight:Frame 1061g (Size:54cm),Fork 442g ,Seatpost 209g,Handlebar 249g(size 420mm),Stem 141g(Size 90mm)
17.Frame Size:48/51/54/56/58cm
18.Max Tire Size:700*40C
19.Warranty:2 Years
20.OEM Painting:Colors And logo
21.Produst Included:Frame,Fork,Seatpost,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum Parts


 |  | | Frame Details : Gravel Bike Frame
Frame Material : T1100 Toray Carbon Fiber
Frame Type : Cyclocross Disc Road Bike Frame
Carbon Weave : UD
Bottom Bracket : T47 Thread
Finish : Matte or Glossy
Headsets : 1-1/2" to 1-1/2"
System : Frame Gravel Bike
Thru Axle Size : Front 100*12mm , Rear 142*12mm
Cable Routing : Internal Cable Routing
Type : Gravel
Seatpost : 27.2mm
Front Derailleur : Stationary type
Disc Rotor Size : 140mm or 160mm
Suitable Derailleur : Di2 or Mechanical
Weight : Frame 1250g (size M) , Fork 450g , Seatpost 190g , Handlebar 390g(size 420*110mm)
Frame Size : XS/S/M/L/XL
Max Tire Size : 700*50C
Frameset Include : Frame,Fork,Seatpost,Headsets,Clamp,BB Transfer,Thru Axle Rod
Warranty : 2 Years
Intergrated Handlebar Details
Handlebar Material : T800 toray carbon fiber
Carbon Weave : UD
Finish : Matte or Glossy
Width : 360/380/400/420/440mm
Stem Lenght : 80/90/100/110/120mm
Stem Diameter : 28.6mm
Drop : 127mm
Reach : 77mm
Weight : 362g (for size 360*80mm)
Warranty : 1 Years

 |
| Additional information |
| Frame Size |
44CM, 49CM, 52CM, 54CM, 56CM, 58CM
|
| Finished |
Matte, Glossy
|
| Color |
All Black, A1, A2, A3, A4, A5, A6, A7, A8, A9, A10, A11, A12, A13
|
|
| Frame Size |
48cm, 51cm, 54cm, 56cm, 58cm
|
| Handlebar Size |
380mm, 400mm, 420mm, 440mm
|
| Stem Size |
80mm, 90mm, 100mm, 110mm
|
| Colors |
S1 painting with logo, S2 painting with logo, S3 painting with logo, S4 painting with logo, S5 painting with logo, S6 painting with logo, S7 painting with logo, S8 painting with logo, S9 painting with logo
|
| Finished |
Matte, Glossy
|
|
| Frame Size |
48cm, 51cm, 54cm, 56cm, 58cm
|
| Handlebar Size |
400mm, 420mm, 440mm
|
| Stem Size |
90mm, 100mm, 110mm, 120mm
|
| Color |
All Black, Crystal Red, Crystal Gold, Crystal Blue, Crystal Green, Crystal Pink, Crystal Grey, Crystal Orange Red, Crystal Deep Blue, Crystal Purple
|
| Finished |
Matte, Glossy
|
|
| Frame Size |
50cm(S), 52cm(M), 54cm(ML), 56cm(L), 58cm(XL)
|
| Handlebar Size |
400*90mm, 400*100mm, 400*110mm, 420*90mm, 420*100mm, 420*110mm, 440*90mm, 440*100mm, 440*110mm
|
| Finished |
Matte, Glossy
|
| Colors |
Carbon Red Smoke With Logo, Black and Chameleon With Logo, Black With Logo, Iridescent BluePeral With Logo, Deep Blue And Black With Logo, Metallic Red And Black With Logo, White And Black With Logo
|
|
| Frame Size |
50cm(S), 52cm(M), 54cm(ML), 56cm(L), 58cm(XL)
|
| Handlebar Size |
400*90mm, 400*100mm, 400*110mm, 420*90mm, 420*100mm, 420*110mm, 440*90mm, 440*100mm, 440*110mm
|
| Finished |
Matte, Glossy
|
| Colors |
Carbon Red Smoke, Black and Chameleon, Black, Iridescent BluePeral
|
|
| Weight |
5.0 kg |
| Dimensions |
100 × 22 × 60 cm |
| Frame Size |
XS, S, M, L, XL
|
| Handlebar Size |
360*80mm, 360*90mm, 360*100mm, 360*110mm, 360*120mm, 380*80mm, 380*90mm, 380*100mm, 380*110mm, 380*120mm, 400*80mm, 400*90mm, 400*100mm, 400*110mm, 400*120mm, 420*80mm, 420*90mm, 420*100mm, 420*110mm, 420*120mm, 440*80mm, 440*90mm, 440*100mm, 440*110mm, 440*120mm
|
| Colors |
Black, Green and White, Chameleon, Colorful, Ice Crystal Green, Ice Crystal Dark Blue, Ice Crystal Orange, Ice Crystal Light Blue, Ice Crystal Gold, Ice Crystal Red, Ice Crystal Purple, Ice Crystal Pink, Ice Crystal Gray, Metallic Red, Metallic Green, Metallic Grass Green, Metallic Dark Blue, Metallic Orange, Metallic Gold, Metallic Indigo Blue, Metallic Purple, Metallic Rose Red
|
| Finished |
Matte, Glossy
|
|
