| Description | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
Various Chameleon Colors Available,Also Customized Painting Available.
If Need See Details Pictures Of The Chameleon Colors,Please Contact Us | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
we can do the original logo on the frame ,so if you need more pictures , please contact us ! | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172 | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
If Need To See More Details Pictures Of The Color Painting,Please Not Hesitate To Contact Us | AIRWOLF Sales Email : wernerwei@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 2638 6571
About the colors ,when you order it , you can leave the message that you need one . | AIRWOLF Sales Email : Nicolezhang@yaoflying.com
AIRWOLF Sales Whatsapp : +86 181 1870 4172
T1100 Carbon Fiber Material
Size M only 980g
Can do customized Painting and Brand Logo,If need,please contact us |
| Content | YFM053 Chameleon Carbon Frame 29er Hardtail Carbon Mountain Bike Frameset Thru Axle 148 Boost BSA Internal Cable Mtb Frame S M L
1.Brand Name:Airwolf
2.Frame Material:T1100 Toray Carbon Fiber
3.Frame Size:S/M/L
4.Carbon Weave:UD
5.Finish:Matte or Glossy
6.Apply To:XC,Hardtail
7.Type:M053 Carbon Mtb Frame

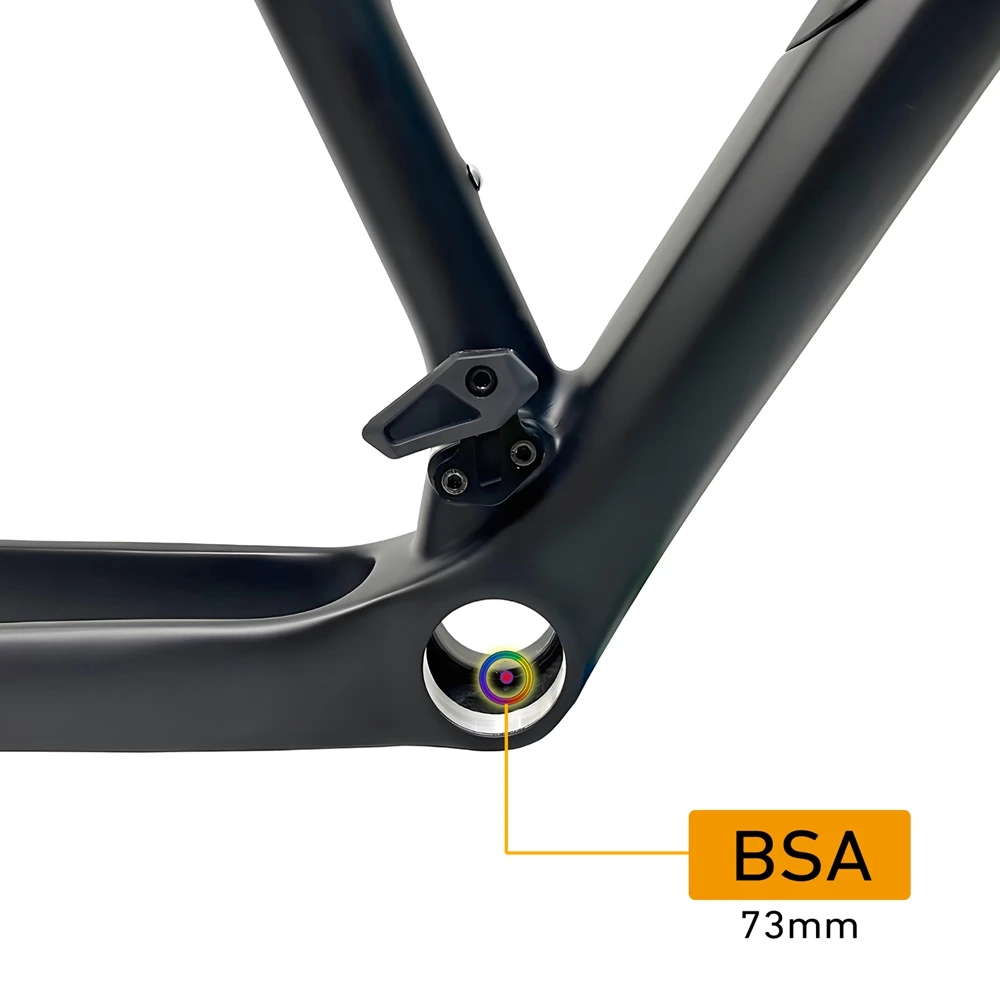

8.Bottom Bracket:BSA (73mm)
9.Head Tube:1-1/8'',1-1/2''
10.Brake Type:Disc Brake
11.Rear Disc Rotor:160mm
12.Thru Axle:148*12mm Boost
13.Seatpost:30.8mm Diameter
14.Seatpost Clamp:34.9mm Diameter
15.Seatpost Lenght:420mm
16.For Single Speed Crank:36T
17.Max Tire Size:29er*2.4 inch
18.Bike Type:XC Mountain Bike
19.Warranty:2 Years
20.Weight:Frame 1040g (Size L),Seatpost 173g
21.Cable Type:Internal Cable
22.Mechanical:Di2 or Mechanical Compatible
23.Product Included:Frame,Headsets,Seatpost,Seatpost Clamp,Thru Axle Rod, Aluminum Parts
24.OEM Painting:Colorful Can Avaiable And Logo

| AIRWOLF 29ER Chameleon MTB Mountain Bike Frame 12*142MM 135*9MM Can Exchange Carbon Fiber Bicycleframe MTB Carbon Bycicle Hard Tail Frame
Frame Material : T1000 Full Toray Carbon Fibre
Frame Type : Carbon MTB Frame Mountain Bike
Use: Mountain Bikes
System : Mountainbike Frame Carbon 29ER
Type : XC
Carbon Weave : UD
Bottom Bracket : PF30(46*73mm)
Finish : Matte or Glossy
Headsets : 1-1/8 to 1-1/2
Rear Hanger Size : 135*9mm Quick Release ,142*12mm Thru Axle
Frame Size : S/M/L/XL
Sutaible For Wheel : 29er
Cable Routing : Internal Cable Routing
Seatpost : 31.6mm
Seatpost Clamp : 34.9mm
Braking System : Disc Brake
Disc Rotor Size : 160mm or 180mm
Max Tire Size : 2.4 inch
Weight : Frame 1120g (size M)
Suitable Derailleur : Di2 And Mechanical Both
Compatible with Fork : Straight,Suspension,Tapered
Frameset Include : Frame,Headsets,Seatpost Clamp,BB Transfer,Thru Axle Rod,Aluminum parts
Warranty : 2 Years
                      | YFM059 Airwolf 29ER BOOST Carbon Mtb Frame 148*12mm Full Suspension Frames XC Rear Travel 100mm Mountain Bicycle Frame Bike MTB Frame
1.Brand Name:Airwolf
2.Frame Material:T1100 Toray Carbon Fiber
3.Size:M/L
4.Carbon Weave:UD
5.Finish:Matte or Glossy
6.Apply To:XC
7.Type:NEW Stumpjumper Frame
8.Bottom Bracket:BSA (73mm)
9.Head Tube:1-1/8'',1-1/2''
10.Brake Type:Disc Brake
11.Rear Shock:EV link 190*40mm,EP link 200*50mm
12.Cable Type:Internal Cable
13.Thru Axle:148*12mm Boost
14.Rear Wheels Travel:100mm
15.Advise Fork Travel:110-150mm
16.Rear Disc Rotor:160mm
17.Seatpost:30.9mm Diameter
18.Max Tire Size:29er*2.4 inch
19.Mechanical:Di2 or Mechanical Compatible
20.Bike Type:Full Suspension Carbon Mountain Bike
21.Warranty:2 Years
22.Weight:1880g (Size M)
23.Product Included:Frame,Headsets,Seatpost Clamp,Thru Axle Rod, Aluminum Parts
24.OEM Painting:Colorful Can Avaiable And Logo
      | Airwolf YFM011/YFM019 Carbon Frame 29 MTB Frame Full Suspension Boost 148 or 142mm Enduro Travel 122mm Tire 29er*2.4'' Carbon Mountain Bike Frameset
1.Brand Name:Airwolf
2.Frame Material:T1000 Toray Carbon Fiber
3.Frame Size:15/17/19inch
4.Carbon Twill:3K Twill
5.Finish:Matte or Glossy
6.Type:Enduro Carbon Mtb Frame Enduro
7.Bottom Bracket Type:PF30 (46*73mm)
8.Crank Spece:38T/38-24T/42-32-24T(Fit for Sh1mano Sra-M Crank both)
9.Head Tube:1-1/8 ,1-1/2
10.Shock Size:190*51mm
11.Rear Wheels Travel:122mm
12.Advise Fork Travel:120mm
13.Brake Type:Disc Brake
14.Rotor Size:160mm (If you want use 180mm buy one Disc Rotor Transfer)
15.Cable Type:Internal Cable
16.Rear Space:YFM019:148*12 Boost YFM011:142*12mm
17.Seat Tube:31.6mm Diameter (Can also use For Adjustable Seatpost)
18.Max Tire Size:29er*2.4 inch
19.Weight:2.48kg (19inch)
20.Warranty:2 year
21.OEM Option:Colorful Can Avaiable And Logo
22.Shock:If You Need Shock Absorbers, Please Contact Sales

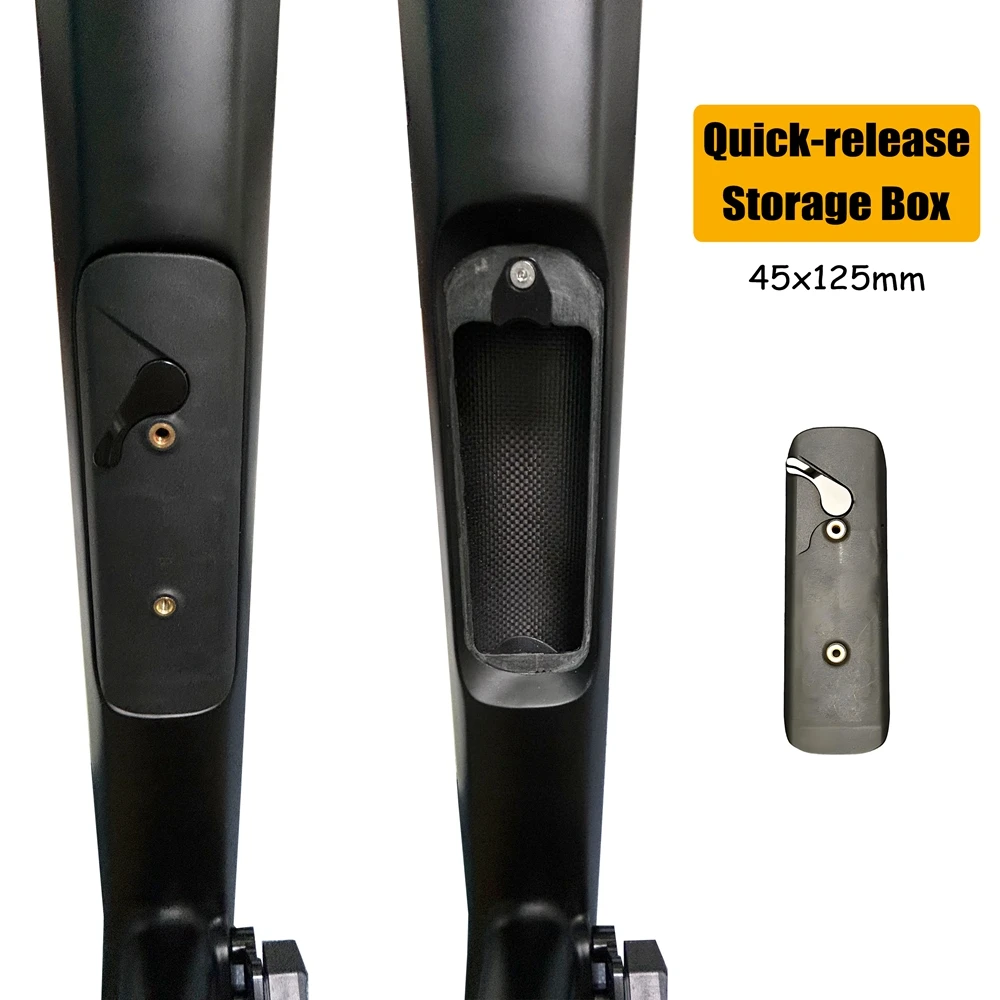

 | Airwolf 29ER T1100 BOOST UDH Hanger Carbon Mountain Bike Frame S M L T47 MTB Carbon Bike Frame Bicycle Frame With Strorage Box
AIRWOLF YFM061 Mountain Frame Specification
Frame Material : T1100 Full Toray Carbon Fibre
Type : XC
Carbon Weave : UD
Bottom Bracket : T47
Finish : Matte or Glossy
Headsets : 1-1/2 to 1-1/2
Rear Hanger Size : 148*12mm Boost Thru Axle
Frame Size : S/M/L
Sutaible For Wheel : 29er

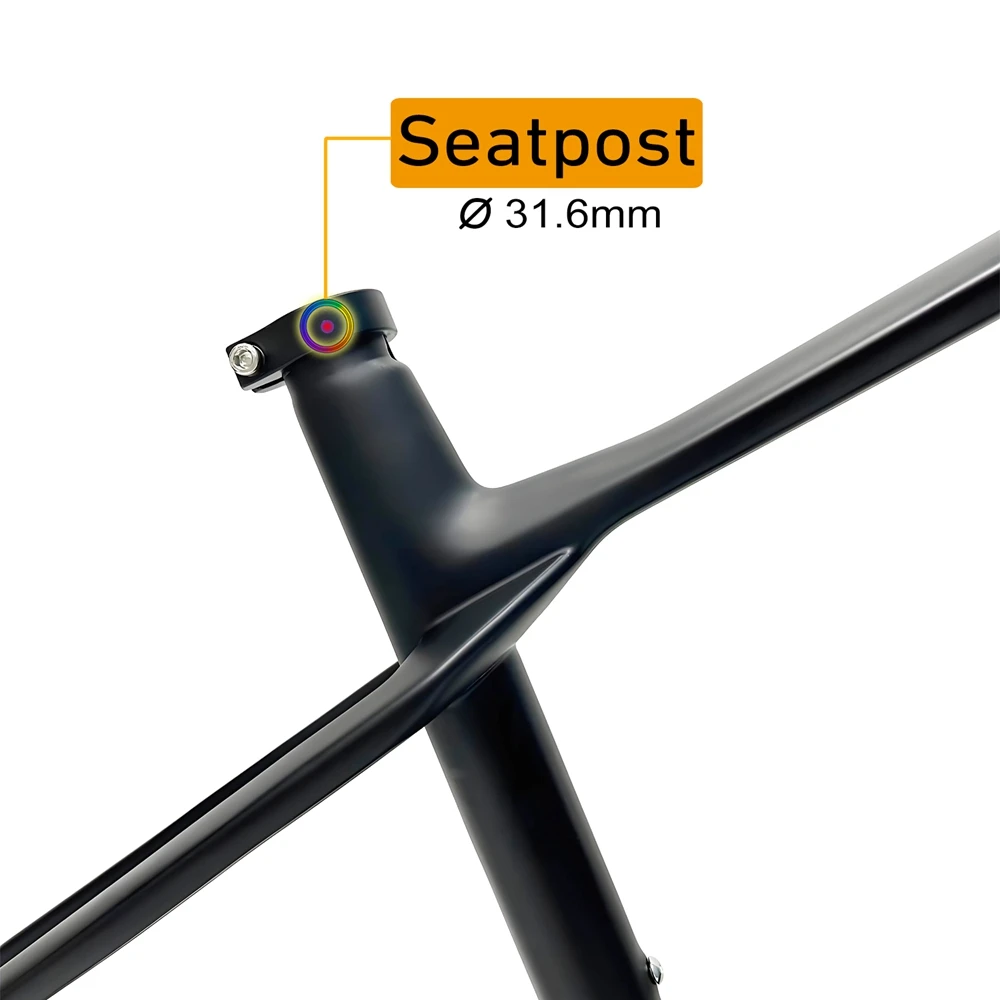

Seatpost : 31.6mm
Braking System : Disc Brake
Disc Rotor Size : 160mm or 180mm
Max Tire Size : 2.4 inch
Weight : Frame 1250+-50g (size M)
Warranty : 2 Years
  | 1.Brand Name:Airwolf
2.Frame Material:T1100 Toray Carbon Fiber
3.Frame Size:S/M/L
4.Carbon Weave:UD
5.Finish:Matte or Glossy
6.Apply To:XC,Hardtail
7.Type:M053 Carbon Mtb Frame
8.Bottom Bracket:BSA (73mm)
9.Head Tube:1-1/8'',1-1/2''
10.Brake Type:Disc Brake
11.Rear Disc Rotor:160mm
12.Thru Axle:148*12mm Boost
13.Fit For Seatpost Size:30.9mm Diameter
14.Seatpost Clamp:34.9mm Diameter
15.For Single Speed Crank:36T
16.Max Tire Size:29er*2.4 inch
17.Bike Type:XC Mountain Bike
18.Warranty:2 Years
91.Weight:Frame 1040g (Size L),
20.Cable Type:Internal Cable
21.Mechanical:Di2 or Mechanical Compatible
22.Product Included:Frame,Headsets,Seatpost,Seatpost Clamp,Thru Axle Rod, Aluminum Parts
23.OEM Painting:Colorful Can Avaiable And Brand Logo
|
| Additional information |
| Frame Size |
S, M, L
|
| Finished |
Matte, Glossy
|
| Chameleon Color Code |
Chameleon 01, Chameleon 02, Chameleon 03, Chameleon 04, Chameleon 05, Chameleon 06, Chameleon 07, Chameleon 08, Chameleon 09, Chameleon 10, Chameleon 11, Chameleon 14
|
|
| Frame Size |
S, M, L, XL
|
| Finished |
Matte, Glossy
|
| Colors |
Black, Chameleon 01, Chameleon 02, Chameleon 03, Chameleon 07, Chameleon 09, Chameleon 10, Chameleon 11, Chameleon Colors
|
|
| Frame Size |
M, L
|
| Finished |
Matte, Glossy
|
| Color |
Color 01, Color 02, Color 03, Color 04, Color 05, Color 06, Color 08, Color 09, Color 10, Color 11, Color 12, All Black
|
| Link Model |
EV Link No Shock, EP Link No Shock, EVO Link With Shock, EP Link With Shock
|
|
| Frame Size |
29ER 142*12mm 15", 29ER 142*12mm 17", 29ER 142*12mm 19", 29ER BOOST 148*12mm 15", 29ER BOOST 148*12mm 17", 29ER BOOST 148*12mm 19"
|
| Finished |
Matte, Glossy
|
| Color |
All Black, P1 Grey, P3 Red, P6 White, P7 Pink, P8 Navy Blue, P9 Light Blue, P10 Orange, P11 Green, P12 Yellow, P13 Blue, P14 Rose Red, P15 Transparecy Red, P16 Transparecy Dark Green, P17 Transparecy Green, P18 Transparecy Blue, P19 Transparecy Orange, P20 Transparecy Gold, P21 Transparecy Deep Green, P22 Transparecy Deep Purple, P23 Transparecy Light Purple, Chameleon 01, Chameleon 02, Chameleon 03, Chameleon 04, Chameleon 05, Chameleon 06, Chameleon 07, Chameleon 08, Chameleon 09, Chameleon 10, Chameleon 11, Chameleon 14
|
|
| Frame Size |
S, M, L
|
| Finished |
Matte, Glossy
|
| Colors |
Black, Colorful, Chameleon colors, Ice Crystal colors, Metallic colors
|
|
| Frame Size |
S, M, L
|
| Finished |
Matte, Glossy
|
| Color |
Black, Red, Yellow, Grey, Orange, Blue, Chameleon, Green, Deep Blue, Purple Red
|
|
